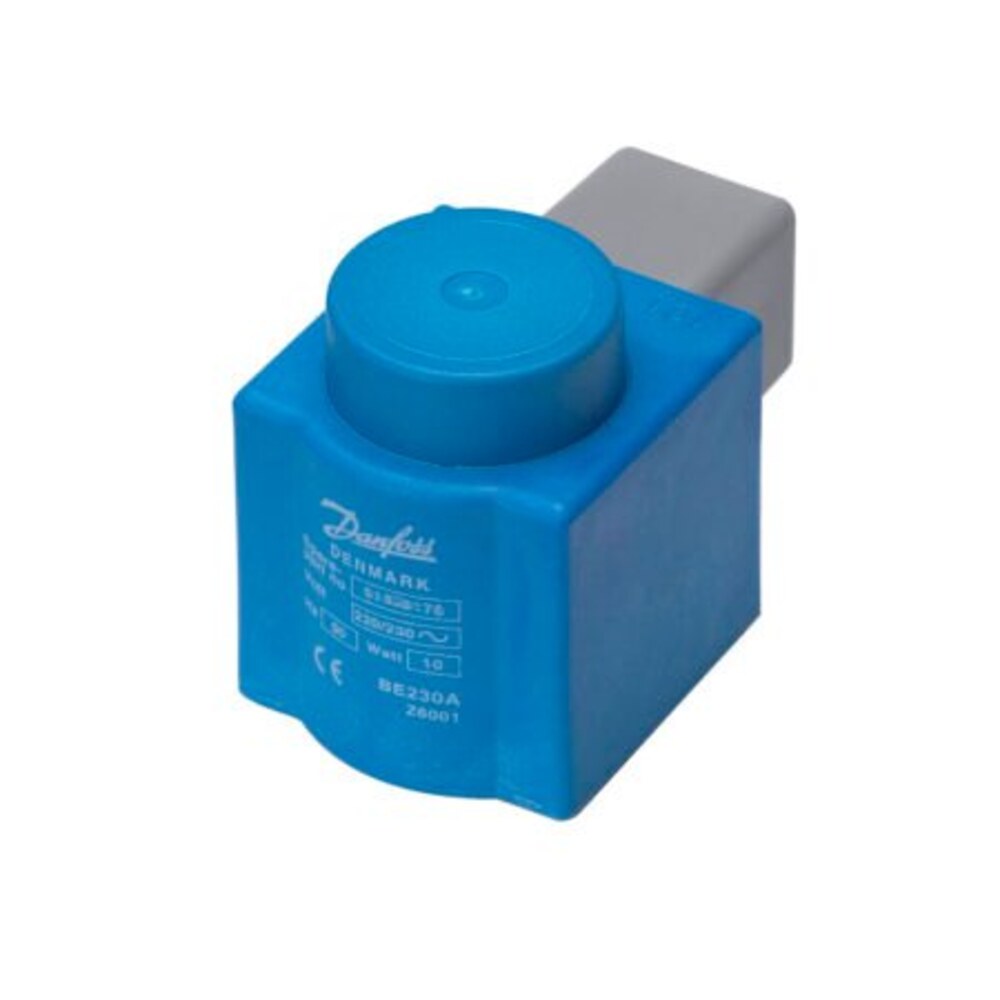

DANFOSS 018F6851 Solenoid coil
- Brand
- DANFOSS
- Model
- 018F6851
- GEARWELL SKU
- GWP-000003149
- Category
- Industrial Automation Parts
Key specifications
- Net weight
- 0.566 Kilogram
- Gross weight
- 0.6 Kilogram
- Coil connection
- Connection Box
- Enclosure rating IP
- IP67
- Electrical connection
- Terminal box
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Danfoss 018F6851 is a Danfoss BG220DS clip-on solenoid coil for 220 V DC supply with a power consumption of 20 W, rated for continuous duty. It has a terminal box with a Pg 13.5 cable entry and IP67 enclosure rating, and the winding uses class H insulation. It fits the EV210B, EV212B, EV220B, EV222B, EV224B and EV250B solenoid valve ranges and works at ambient temperatures from -40 to 50 °C. Net weight is 0.566 kg.
Technical reference
| Product name | DANFOSS 018F6851 Solenoid coil |
|---|---|
| Brand | DANFOSS |
| Model | 018F6851 |
| Category | Industrial Automation Parts |
| Net weight | 0.566 Kilogram |
| Gross weight | 0.6 Kilogram |
| Coil connection | Connection Box |
| Enclosure rating IP | IP67 |
| Electrical connection | Terminal box |
| Power consumption [W] DC | 20 W |
| Electrical connection size | Pg 13.5 |
| Ambient temperature range [°C] | -40 °C … 50 °C |
