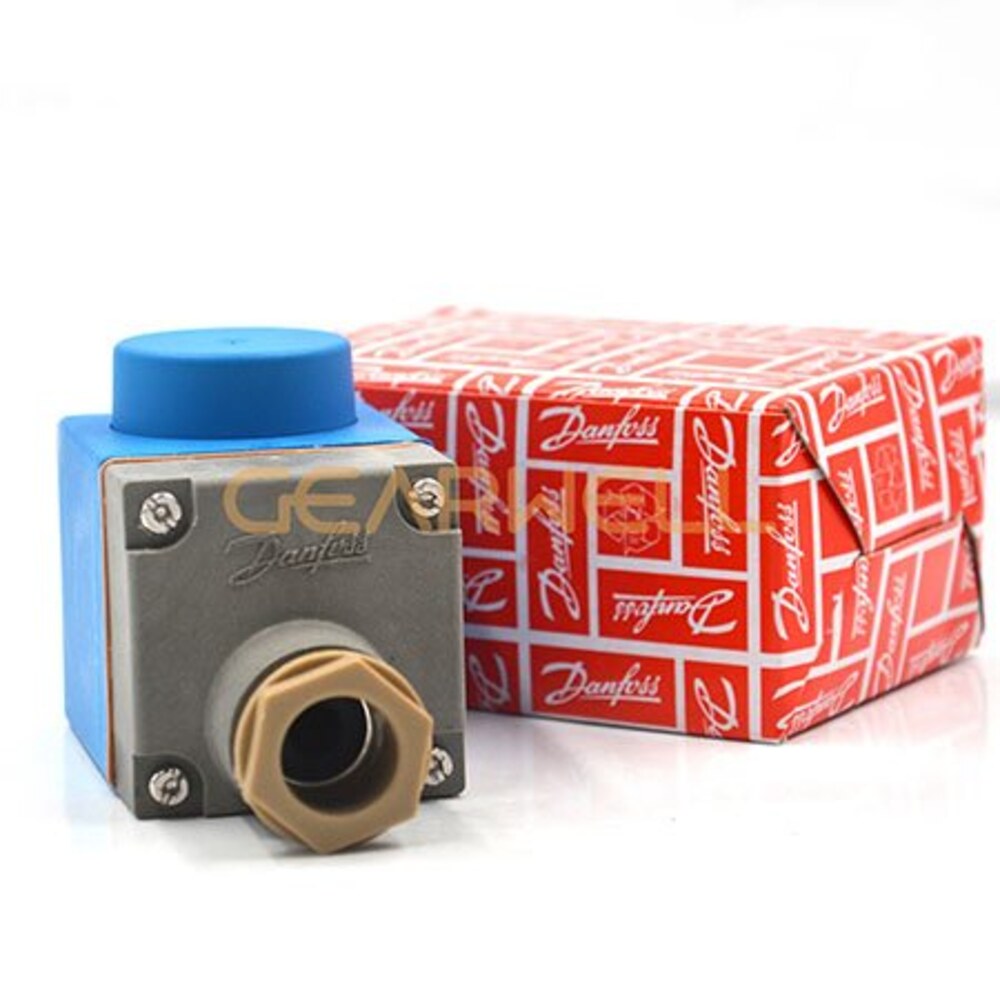

DANFOSS 018F6176 Solenoid valve coil
- Brand
- DANFOSS
- Model
- 018F6176
- GEARWELL SKU
- GWP-000001716
- Category
- Industrial Automation Parts
Key specifications
- Net weight
- 0.271 Kilogram
- Gross weight
- 0.288 Kilogram
- Coil connection
- DIN Spade
- Enclosure rating IP
- IP20
- Electrical connection
- DIN Spade
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Danfoss 018F6176 is a Danfoss BE230AS clip-on solenoid coil for 220-230 V AC at 50 Hz, drawing 12 W (22 VA) in continuous duty. Connection is by DIN spades to EN175301-803 and the enclosure rating is IP20 (a cap is included); the winding uses class H insulation. It suits the EV210B, EV212B, EV220B, EV222B, EV224B, EV227B, EV250B and EV251B valve ranges at ambient temperatures from -40 to 80 °C. Net weight is 0.271 kg.
Technical reference
| Product name | DANFOSS 018F6176 Solenoid valve coil |
|---|---|
| Brand | DANFOSS |
| Model | 018F6176 |
| Category | Industrial Automation Parts |
| Net weight | 0.271 Kilogram |
| Gross weight | 0.288 Kilogram |
| Coil connection | DIN Spade |
| Enclosure rating IP | IP20 |
| Electrical connection | DIN Spade |
| Electrical connection size | 6.3 mm x 0.8 mm |
| Ambient temperature range [°C] | -40 °C … 80 °C |
| Electrical connection standard | EN175301-803 |
