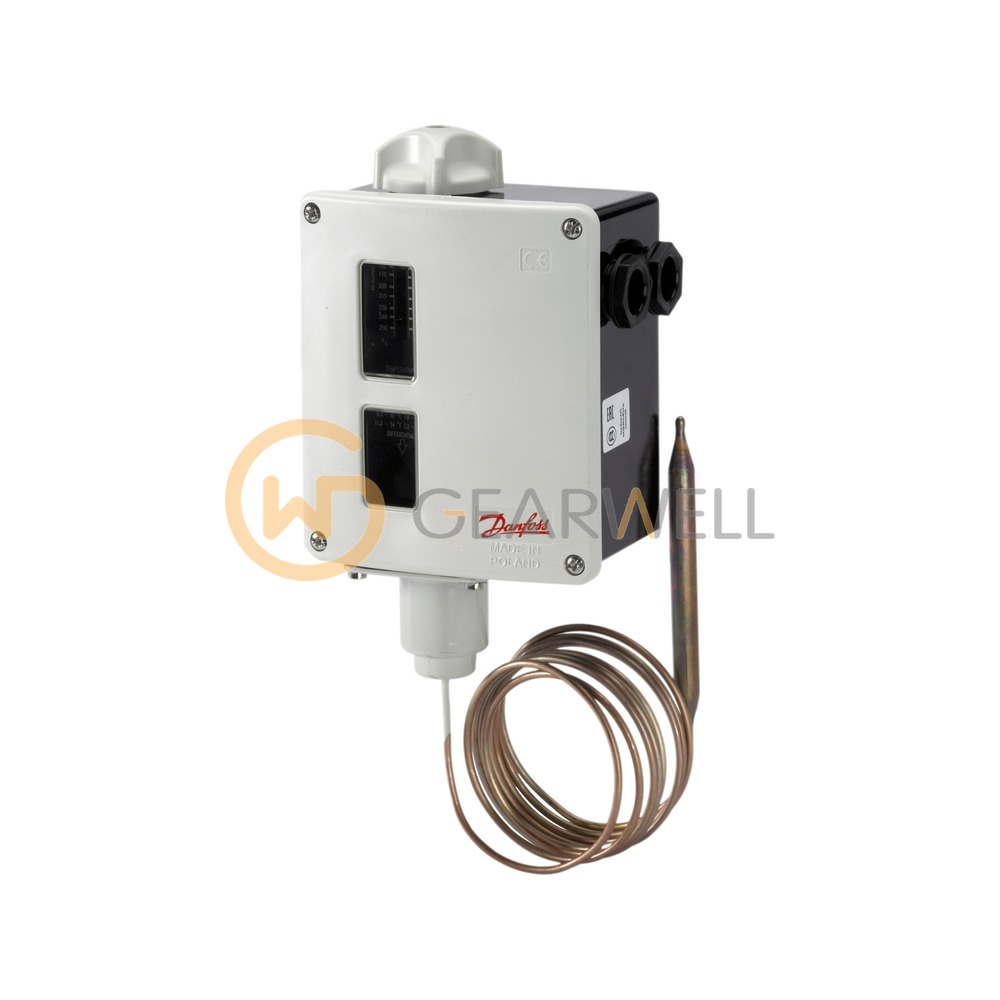

DANFOSS 017-5220 RT123 RT Series Thermostat Temperature Switch
- Brand
- DANFOSS
- Model
- 017-5220
- GEARWELL SKU
- GWP-000016916
- Category
- Pressure, Flow & Temperature
Key specifications
- Enclosure
- IP66
- Sensor type
- Remote bulb
- Contact rating
- AC15=3 A, 400 V; AC1=10 A, 400 V; AC3=4 A, 400 V; DC13=12 W, 220 V; LR=28 A, 400 V
- Sensor size (Ø x L)
- 9.5 x 110 mm
- Contact function
- SPDT
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | DANFOSS 017-5220 RT123 RT Series Thermostat Temperature Switch |
|---|---|
| Brand | DANFOSS |
| Model | 017-5220 |
| Category | Pressure, Flow & Temperature |
| Enclosure | IP66 |
| Sensor type | Remote bulb |
| Contact rating | AC15=3 A, 400 V; AC1=10 A, 400 V; AC3=4 A, 400 V; DC13=12 W, 220 V; LR=28 A, 400 V |
| Sensor size (Ø x L) | 9.5 x 110 mm |
| Contact function | SPDT |
| Type designation | RT123 |
| Temperature range | 150 ... 250 °C |
| Danfoss code number | 017-522066 (collected as 017-5220) |
| Capillary tube length | 2000 mm |
| Differential (at min. range setting) | 6.5 ... 30 °C |
