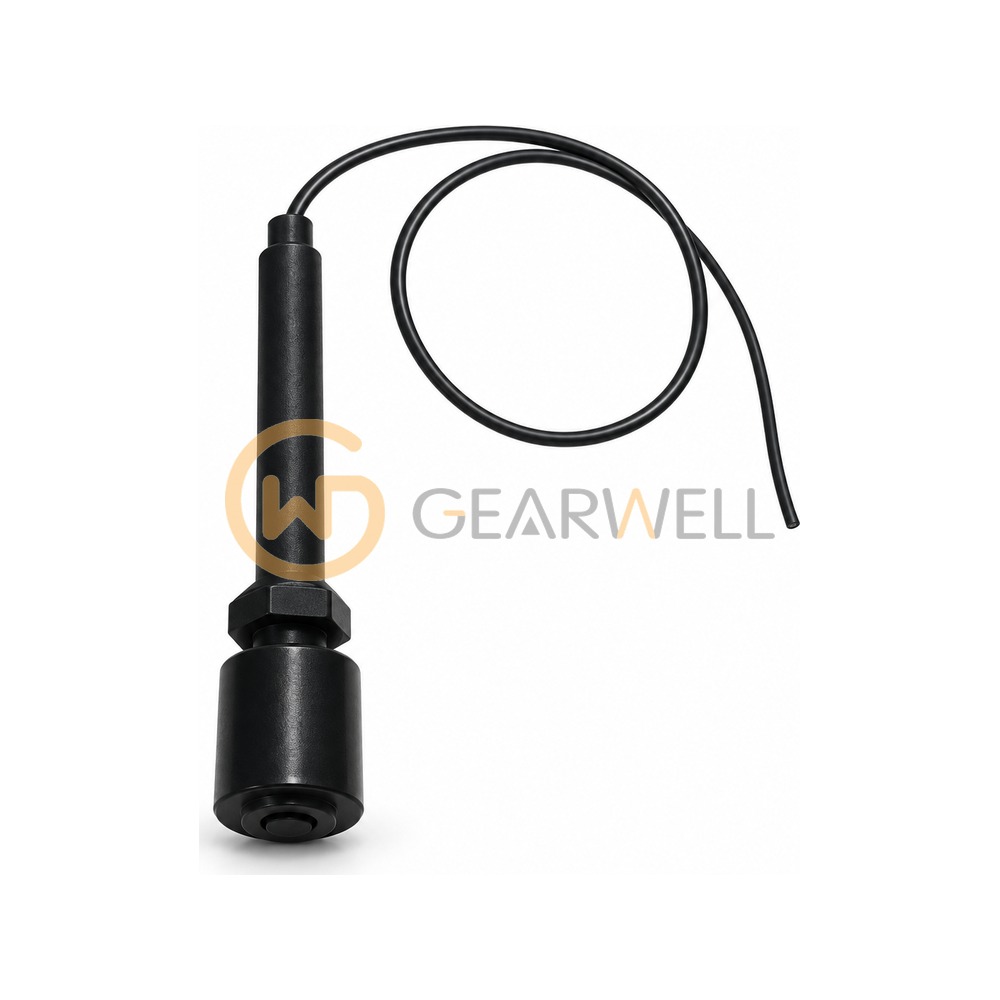

CHENYING M21006 NC Oil Level Float Ball Switch
- Brand
- CHENYING
- Model
- M21006
- GEARWELL SKU
- GWP-000012986
- Category
- Pressure, Flow & Temperature
Key specifications
- Float type
- White float ball
- Order code
- DA01D003
- Contact type
- NC
- Outer thread
- M8xP1.25
- Max. carry current
- 1.0 A
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | CHENYING M21006 NC Oil Level Float Ball Switch |
|---|---|
| Brand | CHENYING |
| Model | M21006 |
| Category | Pressure, Flow & Temperature |
| Float type | White float ball |
| Order code | DA01D003 |
| Contact type | NC |
| Outer thread | M8xP1.25 |
| Max. carry current | 1.0 A |
| Float ball material | EVA/PP |
| Specific gravity (SG) | 1.0 |
| Max. contact capacity | 50 W, SPST |
| Suitable temperature | -10 to 80 °C |
| Max. switching current | 0.5 A |
