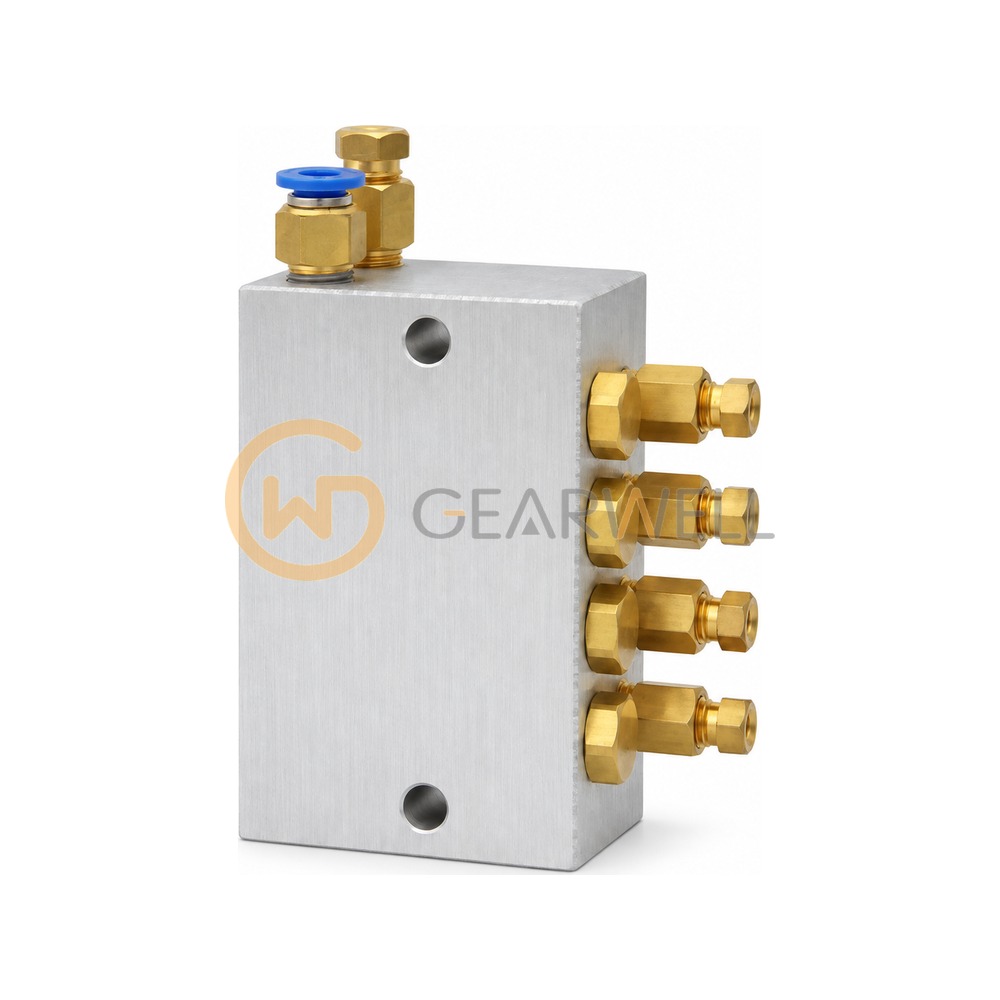

CHENYING OA-1 Oil-Air Volumetric Distributor OA(Air Volume Adjustable)
- Brand
- CHENYING
- Model
- OA-1
- GEARWELL SKU
- GWP-000011934
- Category
- Lubrication Parts
Key specifications
- A(mm)
- 20.0
- B(mm)
- 34
- Type
- OA(Air Volume Adjustable)
- N.W.(g)
- 217
- Series
- OA Oil-Air Volumetric Distributor
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | CHENYING OA-1 Oil-Air Volumetric Distributor OA(Air Volume Adjustable) |
|---|---|
| Brand | CHENYING |
| Model | OA-1 |
| Category | Lubrication Parts |
| A(mm) | 20.0 |
| B(mm) | 34 |
| Type | OA(Air Volume Adjustable) |
| N.W.(g) | 217 |
| Series | OA Oil-Air Volumetric Distributor |
| Outlet Num. | 1 |
| Outlet Number | 1 Outlet |
| Air Inlet Bore | Ø6xPT1/8 |
| Oil Inlet Bore | Ø6(M10xP1.0) |
| Suitable Viscosity | Oil 10~90cSt@40℃ |
| Oil-Ail Outlet Bore | Ø4(M8xP1.0) |
| Discharge Volume/Stroke | 0.03cc 0.06cc 0.10cc 0.16cc |
| Discharge Volume options | All 0.03cc / All 0.06cc / All 0.10cc / All 0.16cc / Special Request (Please specify what you need in remarks.) (specify on order) |
| Operating Air Pressure Range | 4~7kgf/cm² (Air Volume Adjustable) |
| Operating Oil Pressure Range | 15~30kgf/cm² |
