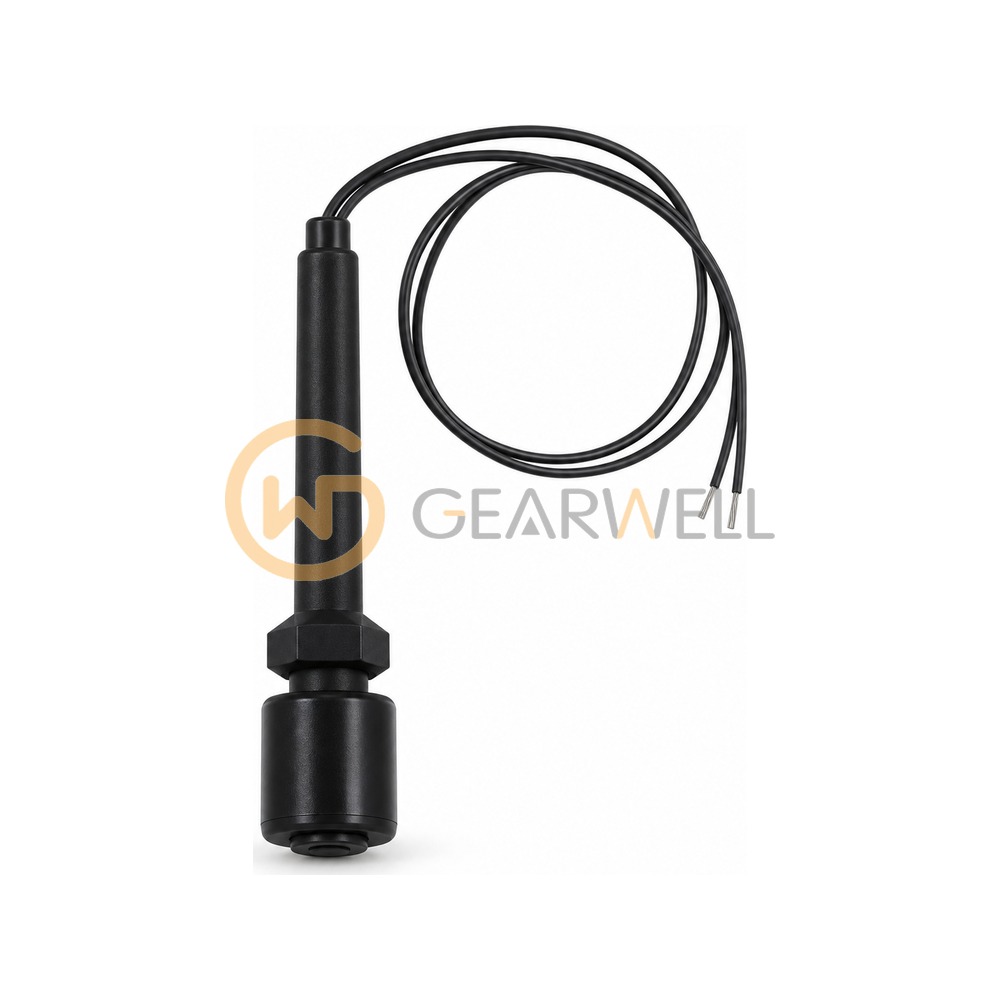

CHENYING M21001 NO Oil Level Float Ball Switch
- Brand
- CHENYING
- Model
- M21001
- GEARWELL SKU
- GWP-000012987
- Category
- Pressure, Flow & Temperature
Key specifications
- Float type
- Black float ball
- Order code
- DA00D001
- Contact type
- NO
- Outer thread
- PF1/8
- Max. carry current
- 1.0 A
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | CHENYING M21001 NO Oil Level Float Ball Switch |
|---|---|
| Brand | CHENYING |
| Model | M21001 |
| Category | Pressure, Flow & Temperature |
| Float type | Black float ball |
| Order code | DA00D001 |
| Contact type | NO |
| Outer thread | PF1/8 |
| Max. carry current | 1.0 A |
| Float ball material | PP |
| Specific gravity (SG) | 0.7 |
| Max. contact capacity | 50 W, SPST |
| Suitable temperature | -20 to 80 °C |
| Max. switching current | 0.5 A |
