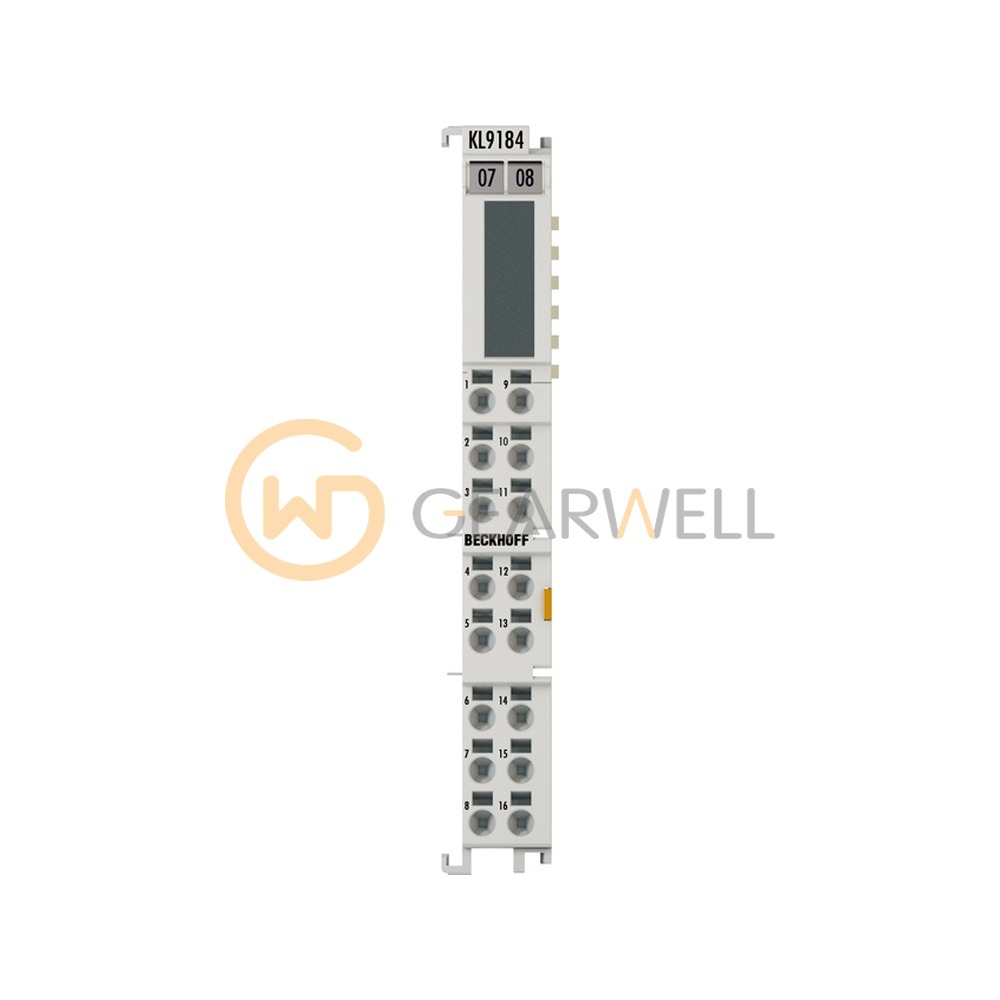

BECKHOFF KL9184 Potential Distribution Terminal
- Brand
- BECKHOFF
- Model
- KL9184
- GEARWELL SKU
- GWP-000008294
- Category
- PLCs & I/O
Key specifications
- Current load
- ≤ 10 A
- Housing width
- 12 mm
- Nominal voltage
- ≤ 60 V DC
- Number of outputs
- e.g.: 8 x 24 V contact, 8 x 0 V contact
- Electrical isolation
- yes
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff KL9184 is a potential distribution terminal with 8 x 24 V DC and 8 x 0 V terminal points, for up to 60 V DC and 10 A. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF KL9184 Potential Distribution Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | KL9184 |
| Category | PLCs & I/O |
| Current load | ≤ 10 A |
| Housing width | 12 mm |
| Nominal voltage | ≤ 60 V DC |
| Number of outputs | e.g.: 8 x 24 V contact, 8 x 0 V contact |
| Electrical isolation | yes |
| K-bus, looped through | yes |
| Bit width in the process image | 0 |
| Connection facility to additional power contact | 8 |
