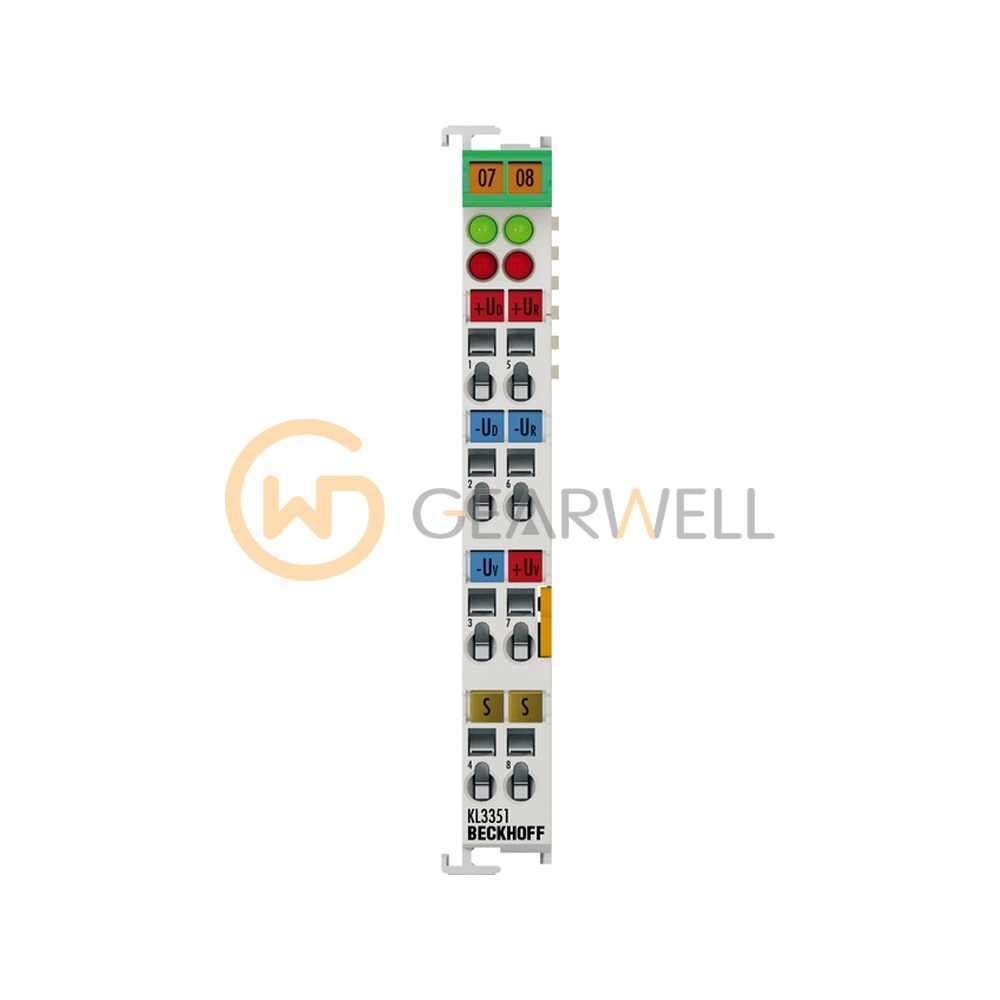

BECKHOFF KL3351 1-Channel Analog Input Bus Terminal
- Brand
- BECKHOFF
- Model
- KL3351
- GEARWELL SKU
- GWP-000008263
- Category
- PLCs & I/O
Key specifications
- Filter
- 50 Hz, configurable
- Resolution
- 16 bit
- Technology
- strain gauge connection
- Power supply
- via the K-bus
- Conversion time
- < 250 ms, configurable
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff KL3351 is a Bus Terminal (K-bus) for one resistor bridge such as a strain gauge, measuring the bridge voltage up to ±16 mV and the reference voltage up to ±10 V. It has an internal 5 V DC bridge supply and 16-bit resolution, with an error below ±0.1 % of full scale. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF KL3351 1-Channel Analog Input Bus Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | KL3351 |
| Category | PLCs & I/O |
| Filter | 50 Hz, configurable |
| Resolution | 16 bit |
| Technology | strain gauge connection |
| Power supply | via the K-bus |
| Conversion time | < 250 ms, configurable |
| Number of inputs | 2, for 1 resistor bridge |
| Power supply U V | 5 V DC, max. 20 mA |
| Internal resistance | > 200 kΩ (U REF ), > 1 MΩ (U D ) |
