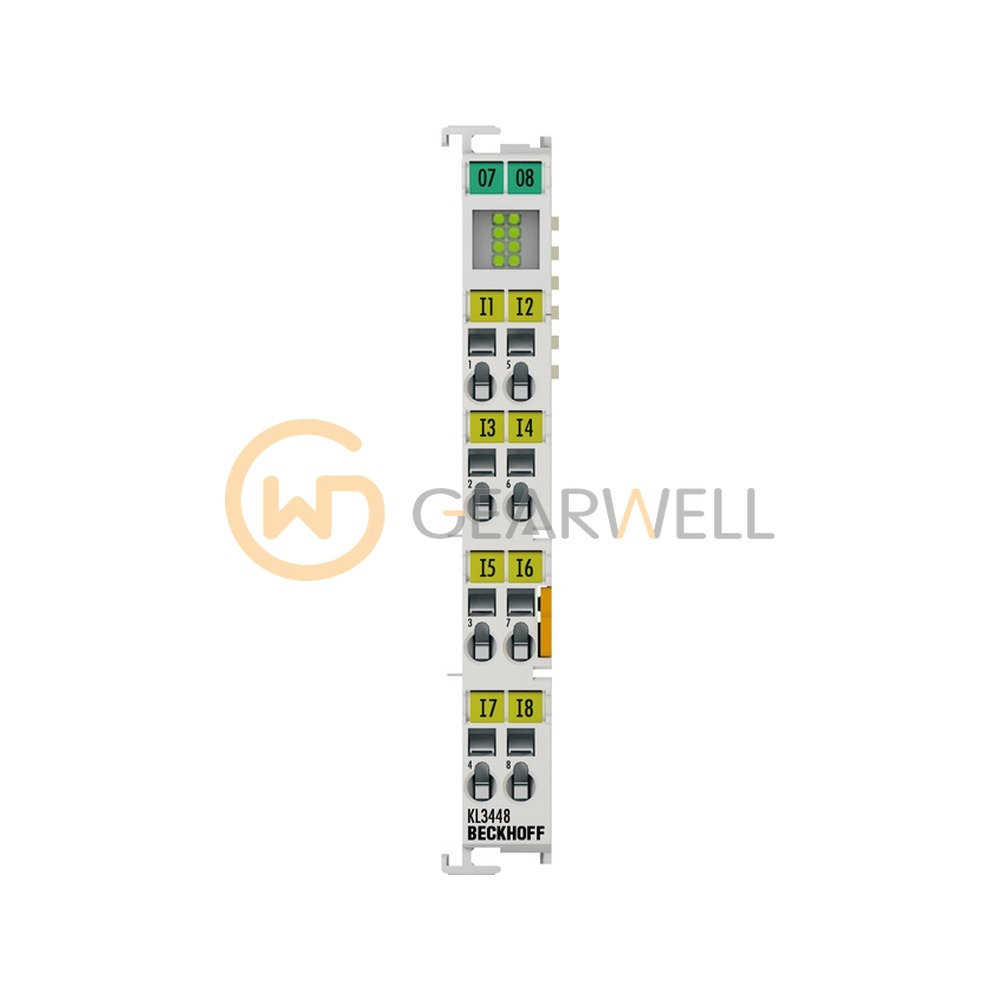

BECKHOFF KL3448 8-Channel Analog Input Bus Terminal
- Brand
- BECKHOFF
- Model
- KL3448
- GEARWELL SKU
- GWP-000008265
- Category
- PLCs & I/O
Key specifications
- Resolution
- 12 bit
- Technology
- single-ended
- Power supply
- via the K-bus
- Signal current
- 0…20 mA
- Conversion time
- ~ 4 ms
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff KL3448 is an 8-channel analog input Bus Terminal (K-bus) for 0 to 20 mA single-ended signals, with 12-bit resolution and an error below ±0.3 % of full scale. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF KL3448 8-Channel Analog Input Bus Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | KL3448 |
| Category | PLCs & I/O |
| Resolution | 12 bit |
| Technology | single-ended |
| Power supply | via the K-bus |
| Signal current | 0…20 mA |
| Conversion time | ~ 4 ms |
| Number of inputs | 8 |
| Internal resistance | < 85 Ω |
| Measurement error/uncertainty | < ±0.3% (relative to full scale value) |
