BECKHOFF KL3311 1-Channel Analog Input Bus Terminal
- Brand
- BECKHOFF
- Model
- KL3311
- GEARWELL SKU
- GWP-000008260
- Category
- PLCs & I/O
Key specifications
- Resolution
- 0.1°C per digit
- Technology
- 2-wire
- Power supply
- via the K-bus
- Conversion time
- ~ 200 ms
- Number of inputs
- 1
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

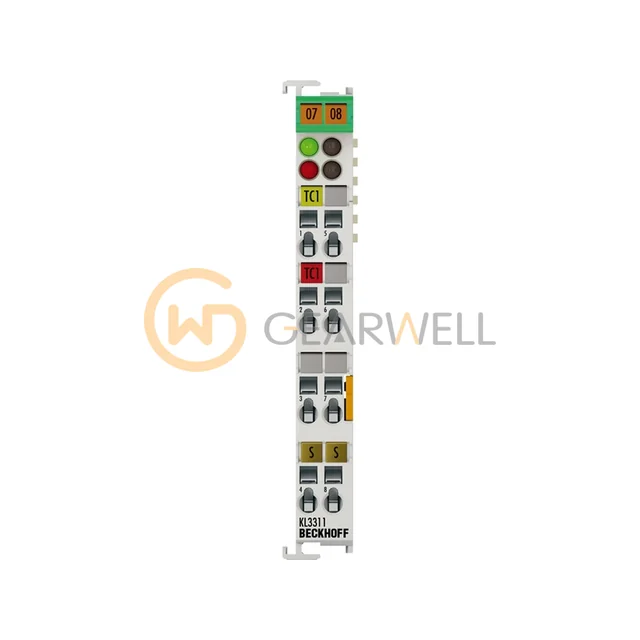

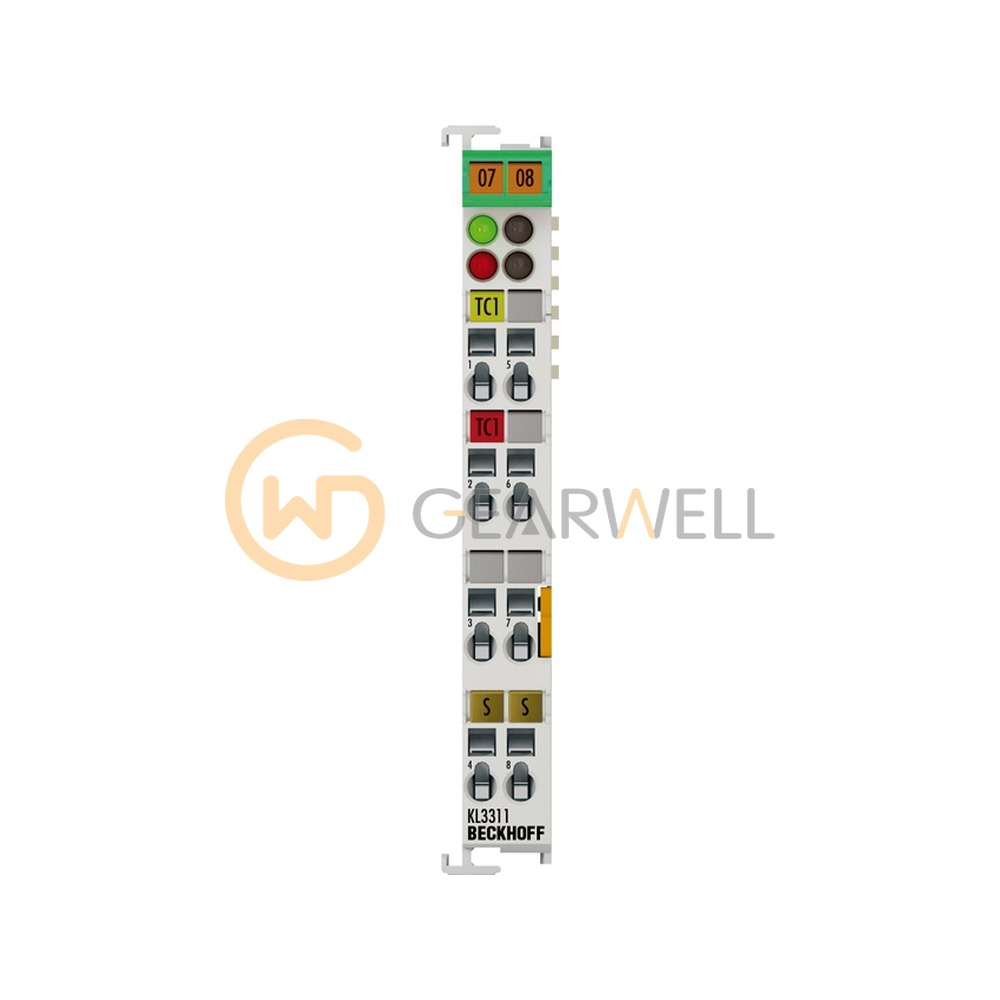

Beckhoff KL3311 is a 1-channel thermocouple input Bus Terminal (K-bus) with an electrically isolated input. It supports thermocouple types J, K, L, B, E, N, R, S, T and U (type K by default) as well as mV measurement, with 0.1 °C resolution and wire break detection. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF KL3311 1-Channel Analog Input Bus Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | KL3311 |
| Category | PLCs & I/O |
| Resolution | 0.1°C per digit |
| Technology | 2-wire |
| Power supply | via the K-bus |
| Conversion time | ~ 200 ms |
| Number of inputs | 1 |
| Wire break detection | yes |
| Connection technology | 2-wire |
| Thermocouple sensor types | types J, K, L, B, E, N, R, S, T, U (default setting type K), mV measurement |
