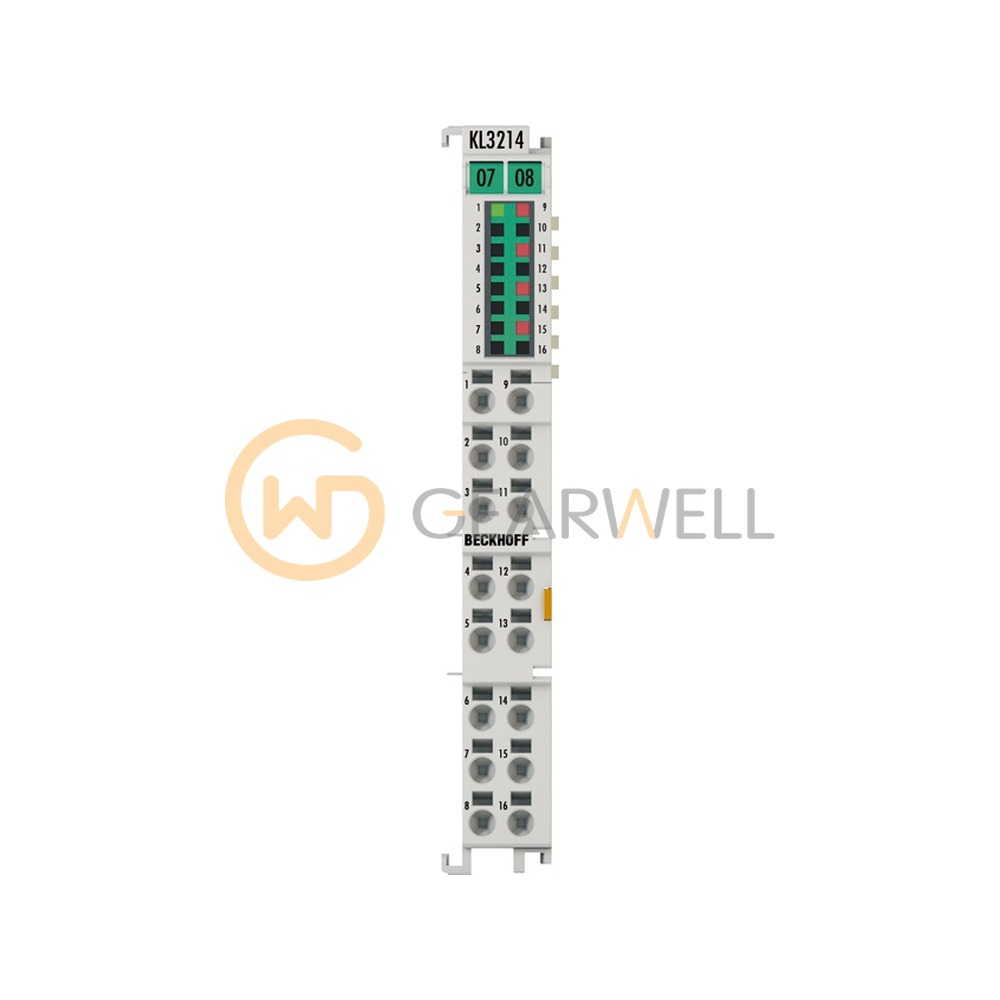

BECKHOFF KL3214 4-Channel Analog Input Bus Terminal
- Brand
- BECKHOFF
- Model
- KL3214
- GEARWELL SKU
- GWP-000008259
- Category
- PLCs & I/O
Key specifications
- Resolution
- 0.1°C per digit
- Power supply
- via the K-bus
- Conversion time
- approx. 170 ms default setting
- Measuring range
- -200…+850°C (Pt sensors); -60…+250°C (Ni sensors)
- Number of inputs
- 4
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff KL3214 is a 4-channel RTD input Bus Terminal (K-bus) for Pt sensors (-200 to +850 °C) and Ni sensors (-60 to +250 °C) in 3-wire connection, with 0.1 °C resolution, an error below ±0.5 °C for Pt sensors and open-circuit detection. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF KL3214 4-Channel Analog Input Bus Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | KL3214 |
| Category | PLCs & I/O |
| Resolution | 0.1°C per digit |
| Power supply | via the K-bus |
| Conversion time | approx. 170 ms default setting |
| Measuring range | -200…+850°C (Pt sensors); -60…+250°C (Ni sensors) |
| Number of inputs | 4 |
| Measuring current | < 0.5 mA (load-dependent) |
| Connection technology | 3-wire |
| Input filter cut-off frequency | typ. 1 kHz |
