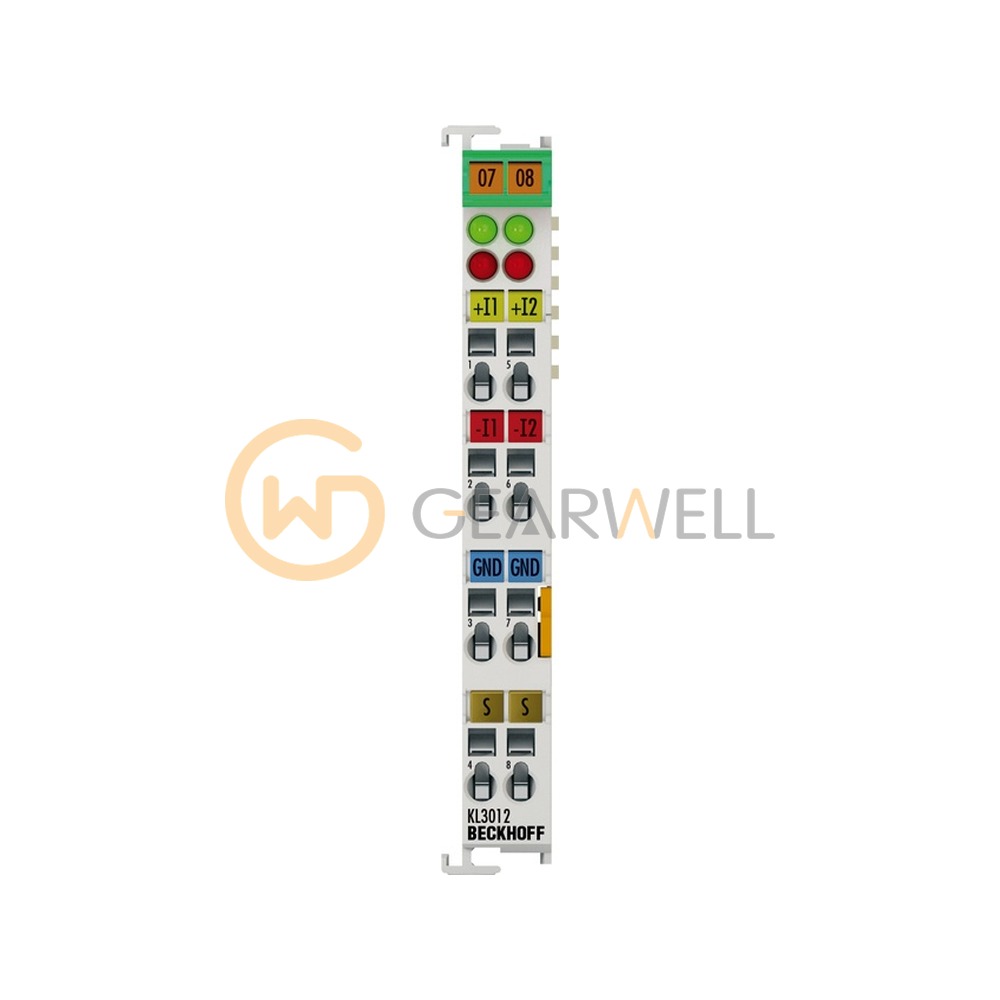

BECKHOFF KL3012 2-Channel Analog Input Bus Terminal
- Brand
- BECKHOFF
- Model
- KL3012
- GEARWELL SKU
- GWP-000008252
- Category
- PLCs & I/O
Key specifications
- Resolution
- 12 bit
- Technology
- differential input
- Power supply
- via the K-bus
- Signal current
- 0…20 mA
- Conversion time
- ~ 2 ms
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff KL3012 is a 2-channel analog input Bus Terminal (K-bus) for 0 to 20 mA differential signals, with 12-bit resolution and an error below ±0.3 % of full scale. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF KL3012 2-Channel Analog Input Bus Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | KL3012 |
| Category | PLCs & I/O |
| Resolution | 12 bit |
| Technology | differential input |
| Power supply | via the K-bus |
| Signal current | 0…20 mA |
| Conversion time | ~ 2 ms |
| Number of inputs | 2 |
| Internal resistance | 80 Ω + diode voltage 0.7 V |
| Common mode voltage U CM | max. 35 V |
