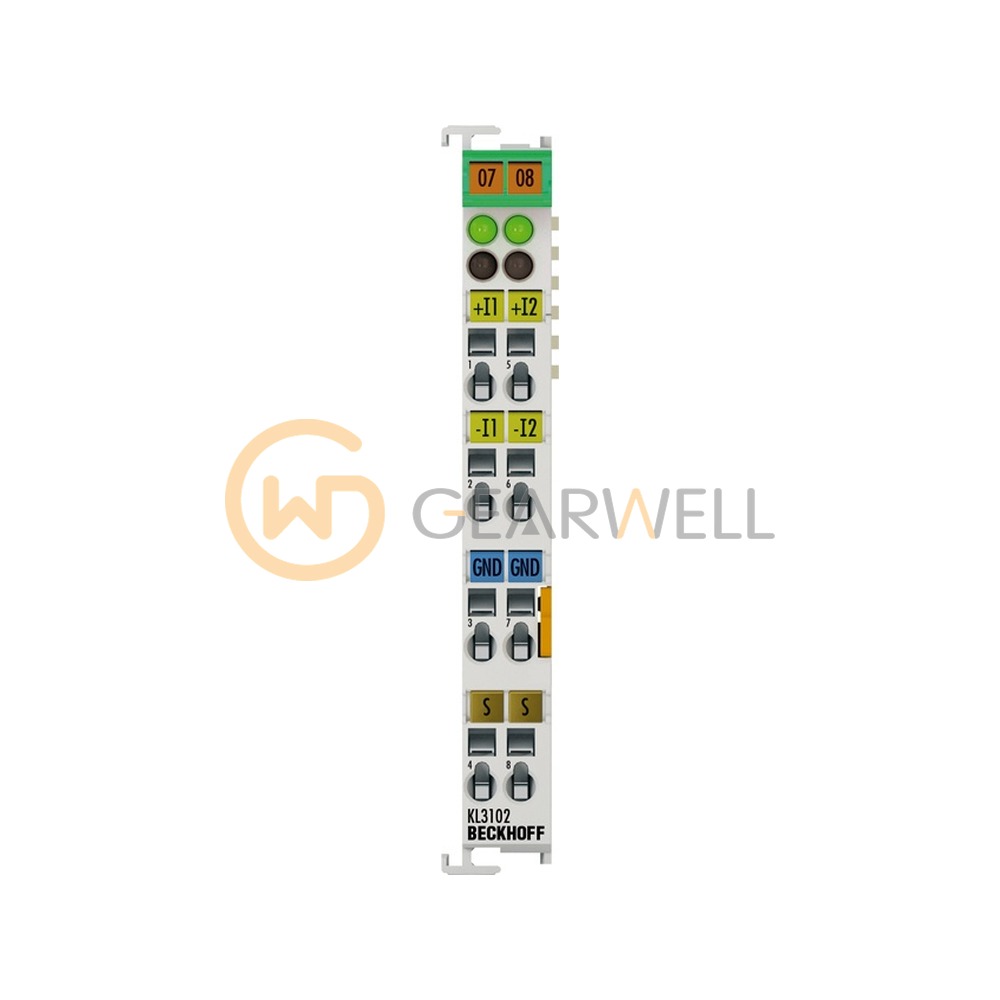

BECKHOFF KL3102 2-Channel Analog Input Bus Terminal
- Brand
- BECKHOFF
- Model
- KL3102
- GEARWELL SKU
- GWP-000008256
- Category
- PLCs & I/O
Key specifications
- Filter
- 50 Hz, configurable
- Resolution
- 16 bit (for 0…10 V range: resolution 15 bit)
- Technology
- differential input
- Power supply
- via the K-bus
- Conversion time
- 140 ms, configurable to 2 ms
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff KL3102 is a 2-channel analog input Bus Terminal (K-bus) for -10 to +10 V differential signals, with 16-bit resolution and an error below ±0.3 % of full scale. The default conversion time is 140 ms with a 50 Hz filter, configurable down to 2 ms. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF KL3102 2-Channel Analog Input Bus Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | KL3102 |
| Category | PLCs & I/O |
| Filter | 50 Hz, configurable |
| Resolution | 16 bit (for 0…10 V range: resolution 15 bit) |
| Technology | differential input |
| Power supply | via the K-bus |
| Conversion time | 140 ms, configurable to 2 ms |
| Number of inputs | 2 |
| Internal resistance | > 200 kΩ |
| Common mode voltage U CM | max. 35 V |
