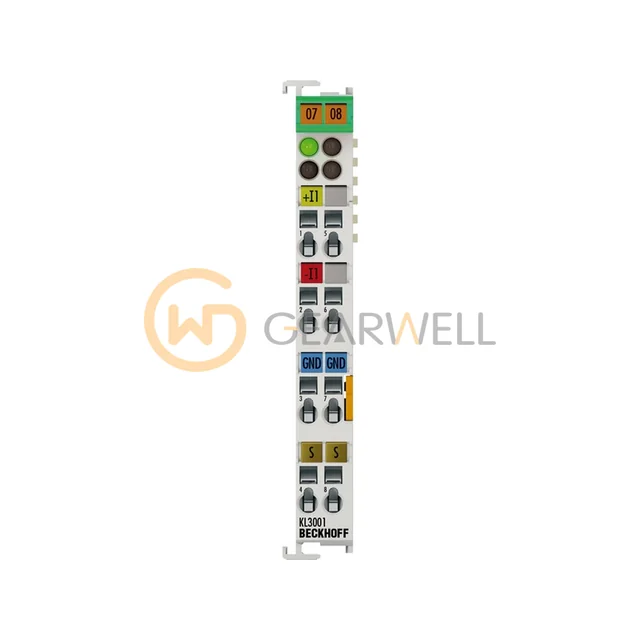

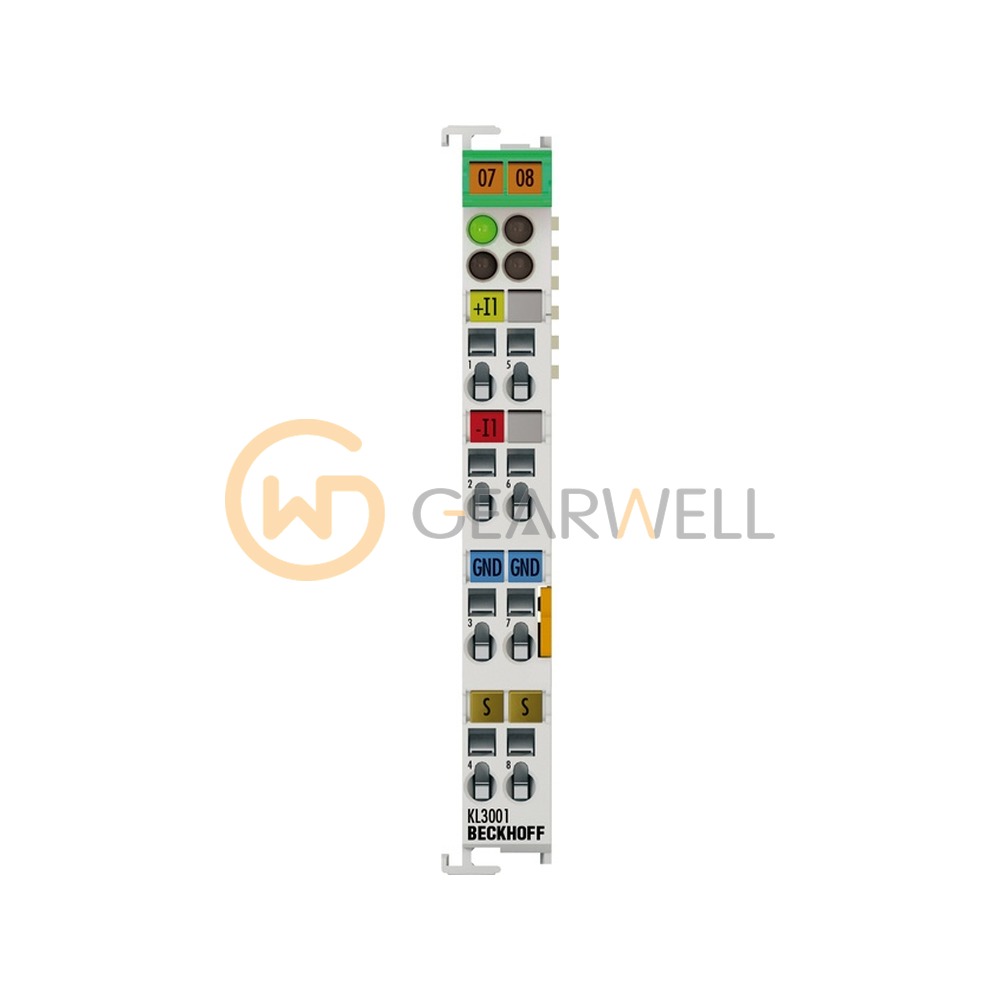

BECKHOFF KL3001 1-Channel Analog Input Bus Terminal
- Brand
- BECKHOFF
- Model
- KL3001
- GEARWELL SKU
- GWP-000008250
- Category
- PLCs & I/O
Key specifications
- Resolution
- 12 bit (for 0…10 V range: resolution 11 bit)
- Technology
- differential input
- Power supply
- via the K-bus
- Conversion time
- ~ 1 ms
- Number of inputs
- 1
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff KL3001 is a 1-channel analog input Bus Terminal (K-bus) for -10 to +10 V differential signals, with 12-bit resolution and an error below ±0.3 % of full scale. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF KL3001 1-Channel Analog Input Bus Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | KL3001 |
| Category | PLCs & I/O |
| Resolution | 12 bit (for 0…10 V range: resolution 11 bit) |
| Technology | differential input |
| Power supply | via the K-bus |
| Conversion time | ~ 1 ms |
| Number of inputs | 1 |
| Internal resistance | > 200 kΩ |
| Common mode voltage U CM | max. 35 V |
| Measurement error/uncertainty | < ±0.3% (relative to full scale value) |
