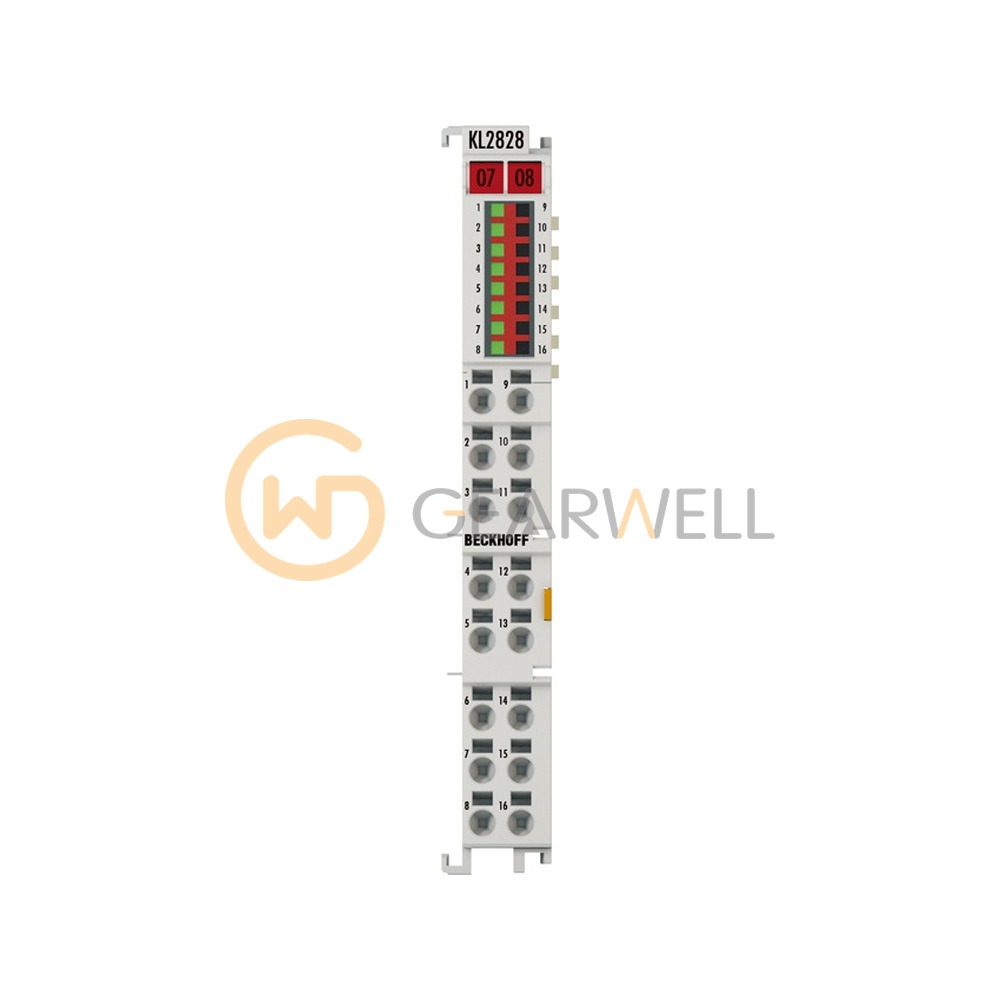

BECKHOFF KL2828 8-Channel Digital Output Bus Terminal
- Brand
- BECKHOFF
- Model
- KL2828
- GEARWELL SKU
- GWP-000008201
- Category
- PLCs & I/O
Key specifications
- Load type
- resistive, inductive, capacitive
- Nominal voltage
- 24 V DC (-15%/+20%)
- Number of outputs
- 8
- Max. output current
- 2 A per channel, ∑ 10 A
- Switching-off energy
- < 1.2 J/channel
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff KL2828 is an 8-channel digital output Bus Terminal (K-bus), switching 24 V DC loads at up to 2 A per channel with 2-wire connection. The total current is limited to 10 A. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF KL2828 8-Channel Digital Output Bus Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | KL2828 |
| Category | PLCs & I/O |
| Load type | resistive, inductive, capacitive |
| Nominal voltage | 24 V DC (-15%/+20%) |
| Number of outputs | 8 |
| Max. output current | 2 A per channel, ∑ 10 A |
| Switching-off energy | < 1.2 J/channel |
| Connection technology | 2-wire |
| Short-circuit current | typ. < 40 A |
| Reverse polarity protection | yes |
