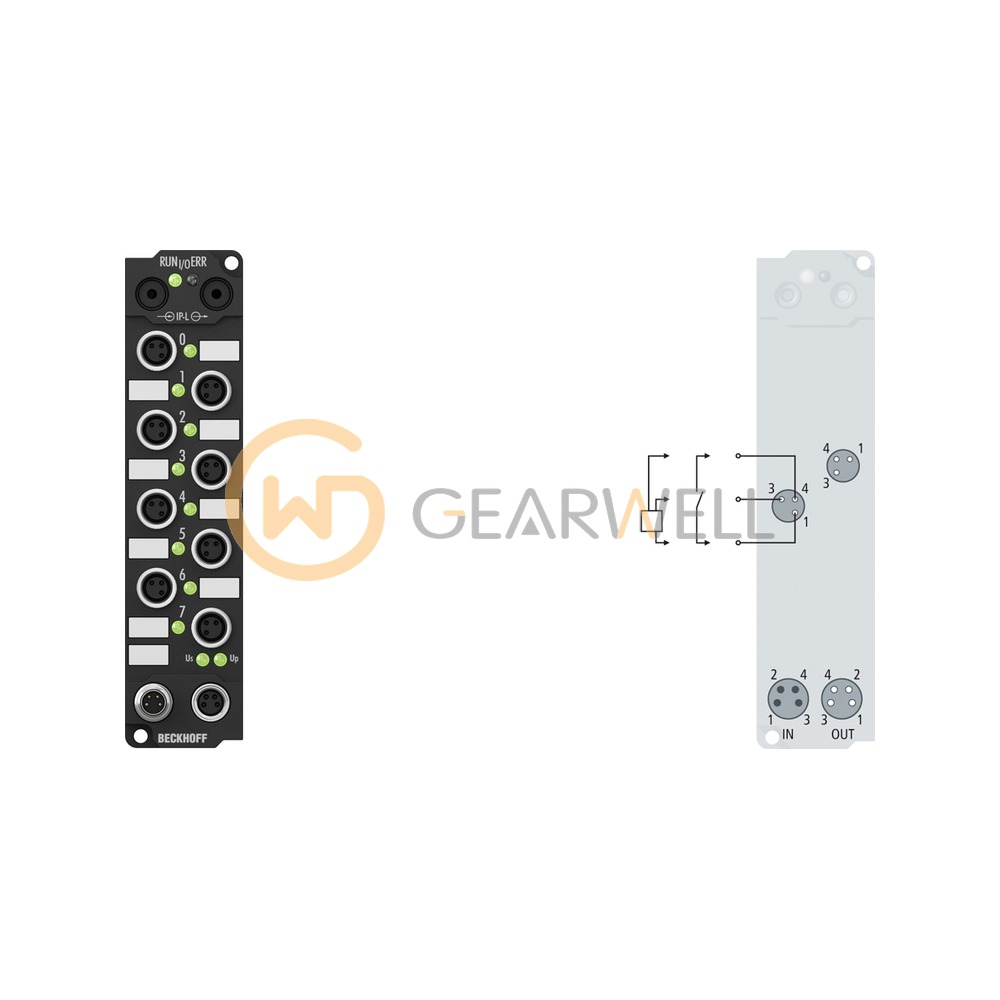

BECKHOFF IE1001 Extension Box, 8-channel digital input, 24 V DC, 3 ms, M8
- Brand
- BECKHOFF
- Model
- IE1001
- GEARWELL SKU
- GWP-000015014
- Category
- PLCs & I/O
Key specifications
- Input filter
- 3 ms
- Input current
- typ. 6 mA (EN 61131-2, type 2)
- Sensor supply
- from control voltage, max. 0.5 A, short-circuit proof in total
- Number of inputs
- 8
- Signal voltage “0”
- -3…+5 V (EN 61131-2, type 2)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | BECKHOFF IE1001 Extension Box, 8-channel digital input, 24 V DC, 3 ms, M8 |
|---|---|
| Brand | BECKHOFF |
| Model | IE1001 |
| Category | PLCs & I/O |
| Input filter | 3 ms |
| Input current | typ. 6 mA (EN 61131-2, type 2) |
| Sensor supply | from control voltage, max. 0.5 A, short-circuit proof in total |
| Number of inputs | 8 |
| Signal voltage “0” | -3…+5 V (EN 61131-2, type 2) |
| Signal voltage “1” | 11…30 V (EN 61131-2, type 2) |
| Input connections | M8, screw type |
| Nominal input voltage | 24 V DC (-15%/+20%) |
