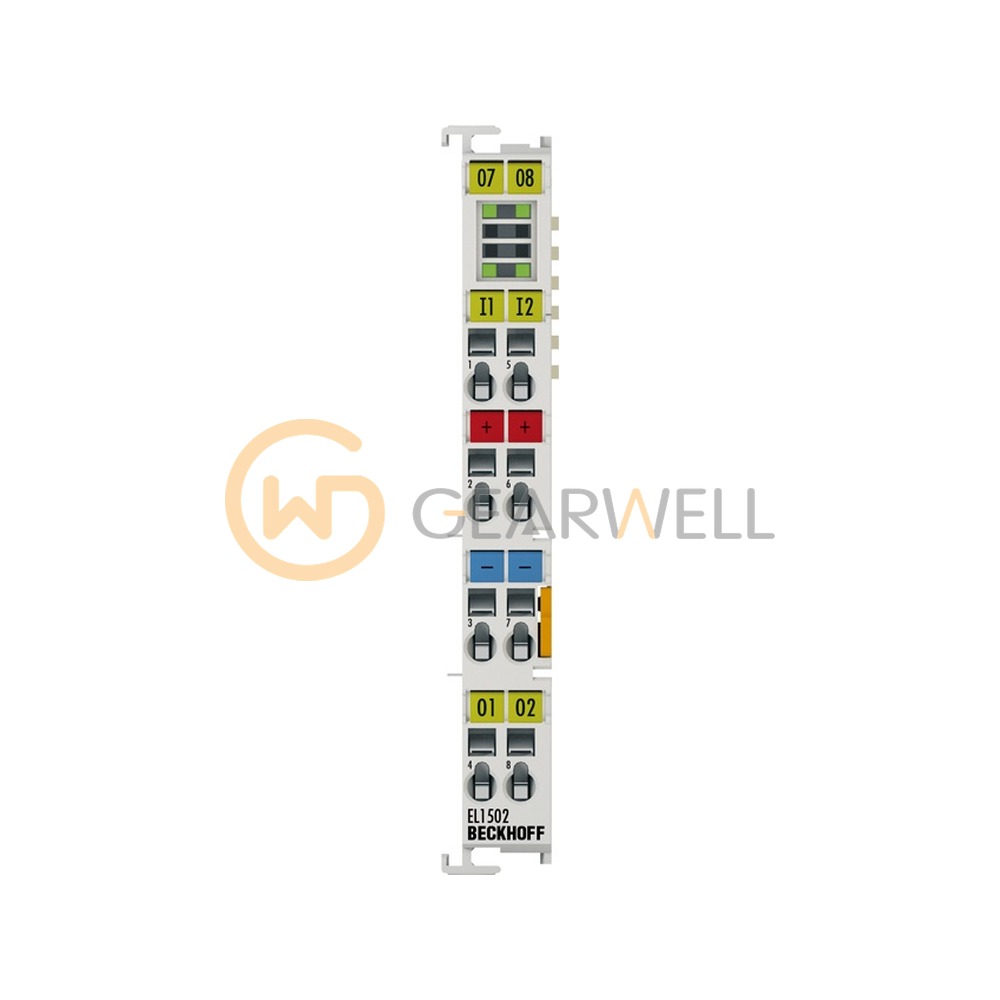

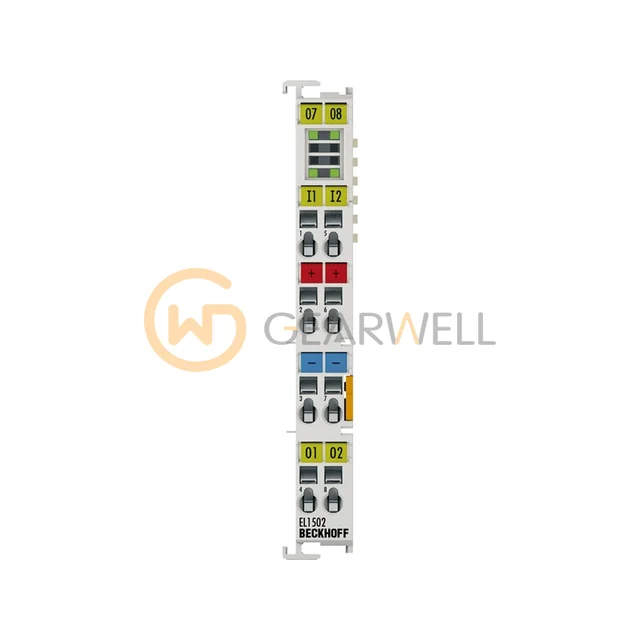

BECKHOFF EL1502 EtherCAT 2-Channel Digital Input Terminal
- Brand
- BECKHOFF
- Model
- EL1502
- GEARWELL SKU
- GWP-000007129
- Category
- PLCs & I/O
Key specifications
- Input current
- typ. 5 mA (EN 61131-2, type 1)
- Nominal voltage
- 24 V DC (-15%/+20%)
- Counting frequency
- max. 100 kHz
- Max. output current
- 24 V/0.5 A (short-circuit proof) per channel
- Number of counters
- 1 or 2
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff EL1502 is an EtherCAT counter terminal for 24 V DC signals, configurable as one up/down counter or two up or down counters, with 32-bit depth and up to 100 kHz counting frequency. Counters can be set, and two 24 V outputs (0.5 A, short-circuit proof) can be switched. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF EL1502 EtherCAT 2-Channel Digital Input Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | EL1502 |
| Category | PLCs & I/O |
| Input current | typ. 5 mA (EN 61131-2, type 1) |
| Nominal voltage | 24 V DC (-15%/+20%) |
| Counting frequency | max. 100 kHz |
| Max. output current | 24 V/0.5 A (short-circuit proof) per channel |
| Number of counters | 1 or 2 |
| Connection technology | 1 x up/down counter, 2 x up or down counter |
| Current consumption E-bus | typ. 130 mA |
| Current consumption power contacts | typ. 14 mA + load |
