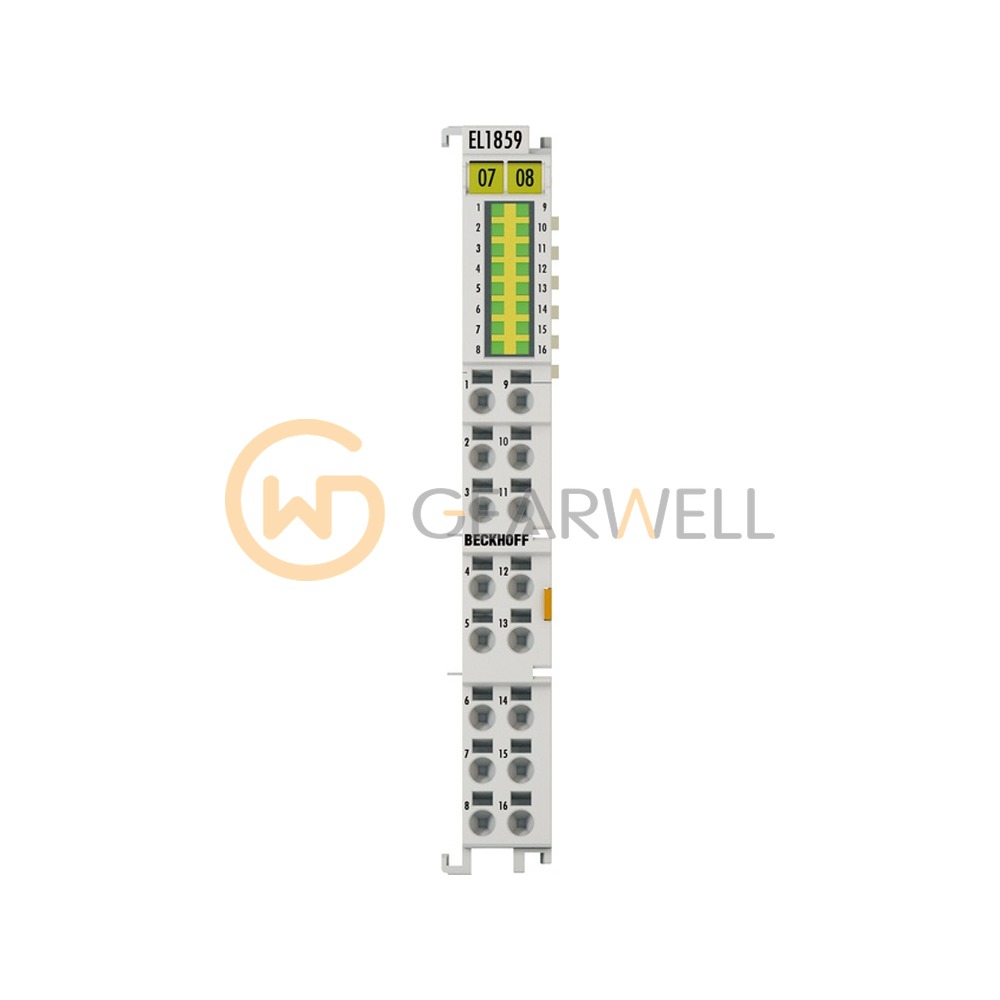

BECKHOFF EL1859 EtherCAT Digital I/O Terminal
- Brand
- BECKHOFF
- Model
- EL1859
- GEARWELL SKU
- GWP-000007920
- Category
- PLCs & I/O
Key specifications
- Load type
- resistive, inductive, lamp load
- Input filter
- typ. 3 ms
- Input current
- typ. 3 mA (EN 61131-2, type 3)
- Nominal voltage
- 24 V DC (-15%/+20%)
- Max. output current
- 0.5 A per channel
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff EL1859 is an EtherCAT digital I/O terminal with 8 inputs and 8 outputs at 24 V DC in one housing. Inputs have a typical 3 ms filter; outputs switch up to 0.5 A per channel for resistive, inductive and lamp loads. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF EL1859 EtherCAT Digital I/O Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | EL1859 |
| Category | PLCs & I/O |
| Load type | resistive, inductive, lamp load |
| Input filter | typ. 3 ms |
| Input current | typ. 3 mA (EN 61131-2, type 3) |
| Nominal voltage | 24 V DC (-15%/+20%) |
| Max. output current | 0.5 A per channel |
| Number of channels | 8 inputs + 8 outputs |
| Connection technology | 1-wire |
| Reverse polarity protection | yes |
