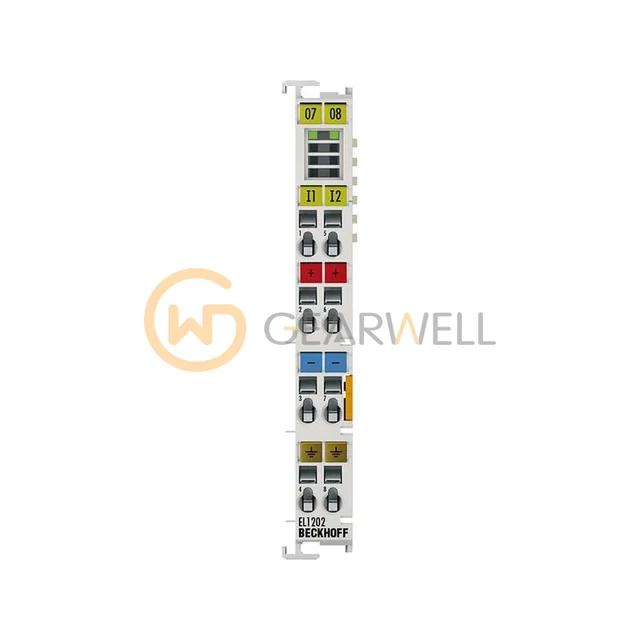

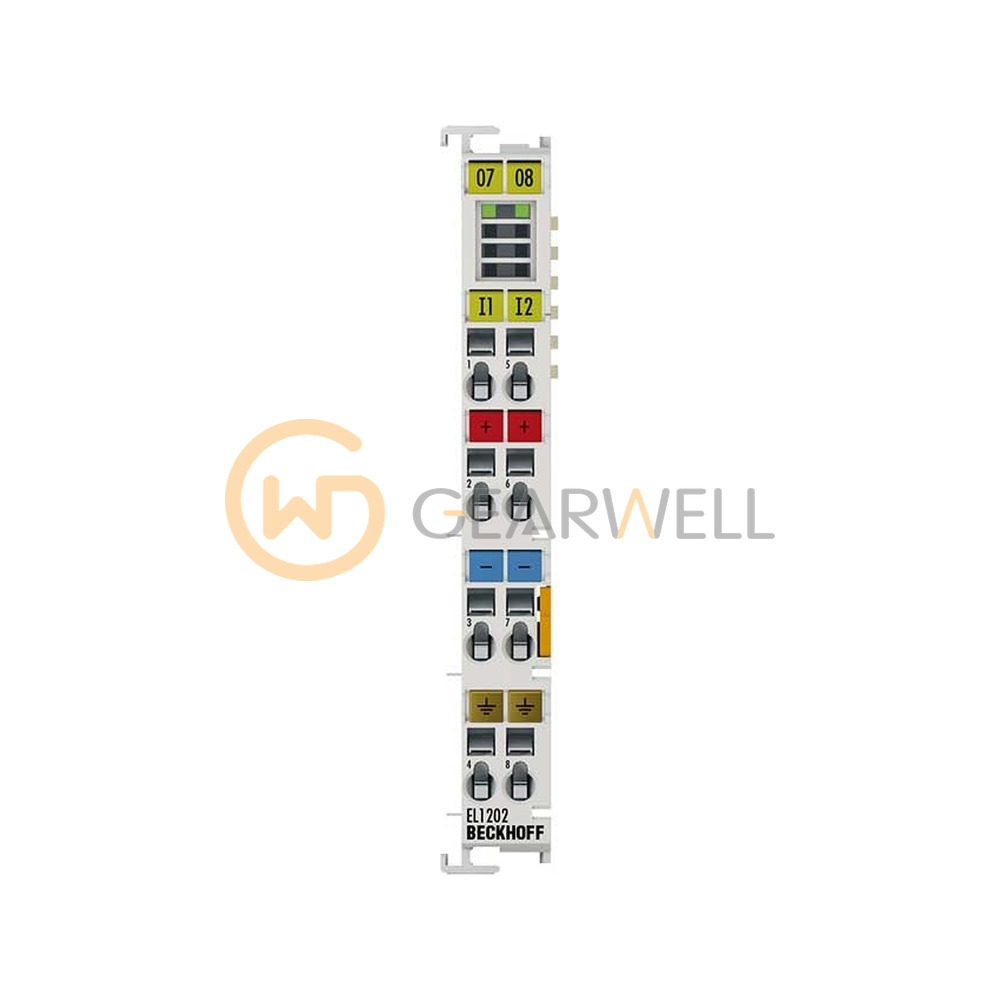

BECKHOFF EL1202 EtherCAT 2-Channel Digital Input Terminal
- Brand
- BECKHOFF
- Model
- EL1202
- GEARWELL SKU
- GWP-000007914
- Category
- PLCs & I/O
Key specifications
- Input filter
- typ. < 1 µs
- Input current
- typ. 3 mA (similar to EN 61131-2, type 3)
- Nominal voltage
- 24 V DC (-15%/+20%)
- Number of inputs
- 2
- Timestamp accuracy
- 10 ns (+ input delay) between the channels
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff EL1202 is a 2-channel fast digital input terminal for EtherCAT, for 24 V DC signals with an input delay below 1 µs. Distributed clocks can be activated for synchronised acquisition; the terminal uses 4-wire connection and draws typically 110 mA from the E-bus. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF EL1202 EtherCAT 2-Channel Digital Input Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | EL1202 |
| Category | PLCs & I/O |
| Input filter | typ. < 1 µs |
| Input current | typ. 3 mA (similar to EN 61131-2, type 3) |
| Nominal voltage | 24 V DC (-15%/+20%) |
| Number of inputs | 2 |
| Timestamp accuracy | 10 ns (+ input delay) between the channels |
| Connection technology | 4-wire |
| Input delay T ON /T OFF | < 1 µs |
| Distributed clock accuracy | << 1 µs |
