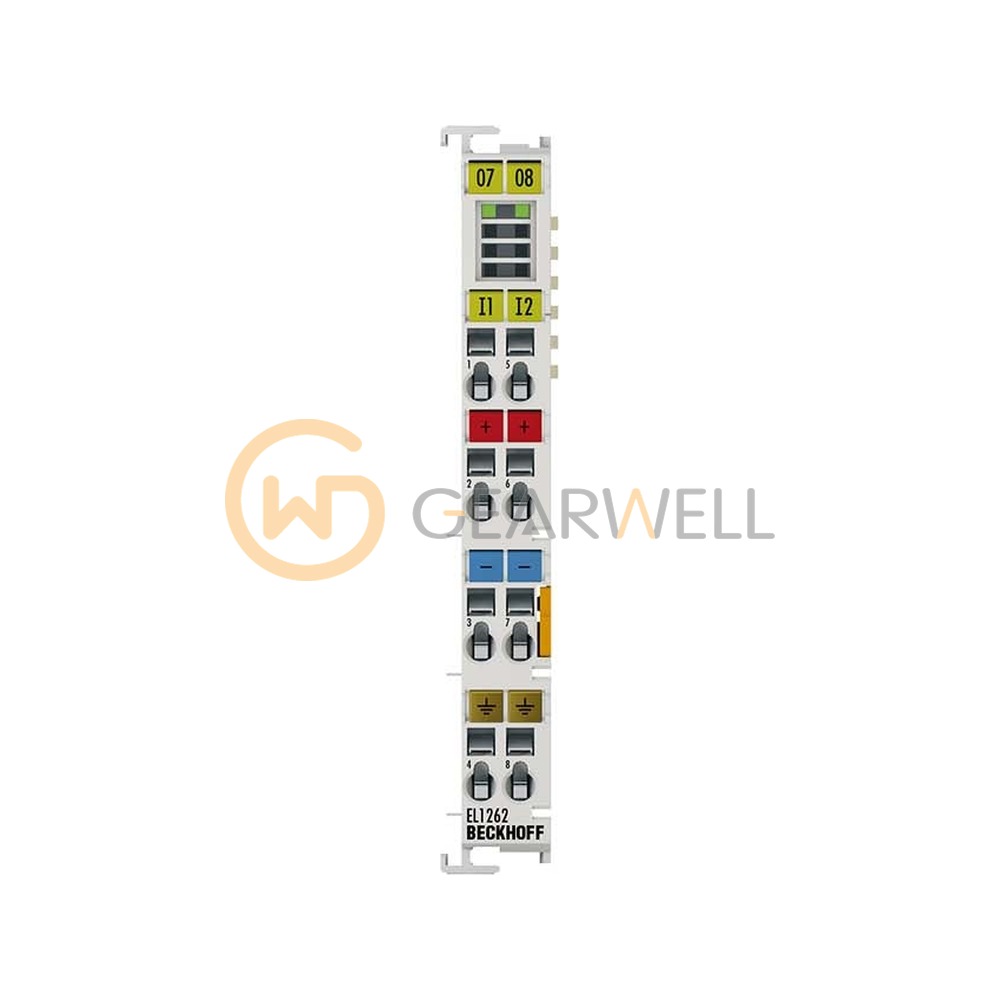

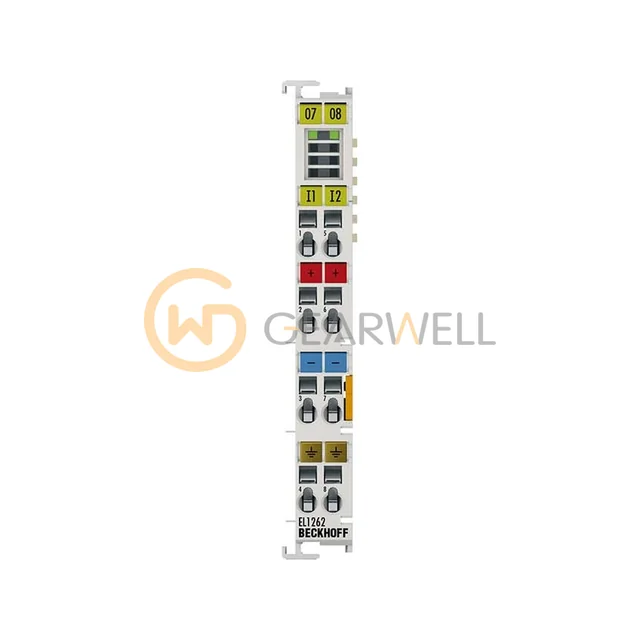

BECKHOFF EL1262 EtherCAT 2-Channel Digital Input Terminal
- Brand
- BECKHOFF
- Model
- EL1262
- GEARWELL SKU
- GWP-000007128
- Category
- PLCs & I/O
Key specifications
- Input filter
- typ. < 1 µs
- Input current
- typ. 3 mA
- Sampling rate
- max. 1 Msample/s
- Nominal voltage
- 24 V DC (-15%/+20%)
- Number of inputs
- 2
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff EL1262 is a 2-channel digital input terminal for EtherCAT with oversampling: each 24 V DC input can be sampled 1 to 1,000 times per bus cycle, up to 1 Msample/s. It uses 4-wire connection, draws typically 70 mA from the E-bus and is rated for 0 to 55 °C. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF EL1262 EtherCAT 2-Channel Digital Input Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | EL1262 |
| Category | PLCs & I/O |
| Input filter | typ. < 1 µs |
| Input current | typ. 3 mA |
| Sampling rate | max. 1 Msample/s |
| Nominal voltage | 24 V DC (-15%/+20%) |
| Number of inputs | 2 |
| Timestamp accuracy | 10 ns (+ input delay) between the channels |
| Connection technology | 4-wire |
| Oversampling/multi-timestamp factor | n = integer multiple of the cycle time, 1…1000, see documentation |
