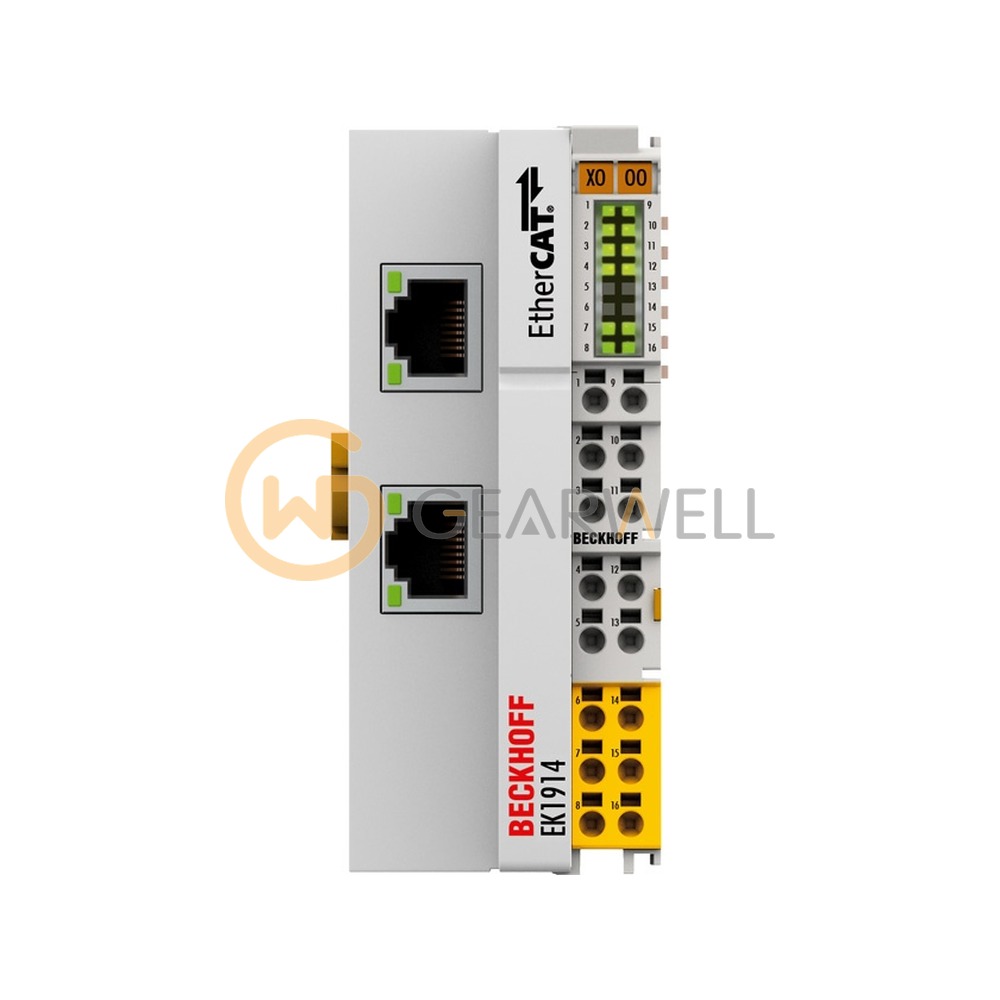

BECKHOFF EK1914 EtherCAT Coupler with Standard and Safety I/Os
- Brand
- BECKHOFF
- Model
- EK1914
- GEARWELL SKU
- GWP-000007904
- Category
- PLCs & I/O
Key specifications
- Weight
- approx. 123 g
- Protocol
- EtherCAT
- Safety standard
- DIN EN ISO 13849-1:2008 (Cat. 4, PL e)
- Number of inputs
- 6 digital inputs, 2 of which are fail-safe inputs
- Number of outputs
- 6 digital outputs, 2 of which are fail-safe outputs
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff EK1914 is an EtherCAT Coupler with integrated standard and TwinSAFE safety I/O: 6 digital inputs (2 fail-safe) and 6 digital outputs (2 fail-safe), at up to 0.5 A per output. The safety I/O is certified to EN ISO 13849-1 Cat. 4/PL e. Check the full order number and the TwinSAFE configuration of the existing machine when requesting a quote.
Technical reference
| Product name | BECKHOFF EK1914 EtherCAT Coupler with Standard and Safety I/Os |
|---|---|
| Brand | BECKHOFF |
| Model | EK1914 |
| Category | PLCs & I/O |
| Weight | approx. 123 g |
| Protocol | EtherCAT |
| Safety standard | DIN EN ISO 13849-1:2008 (Cat. 4, PL e) |
| Number of inputs | 6 digital inputs, 2 of which are fail-safe inputs |
| Number of outputs | 6 digital outputs, 2 of which are fail-safe outputs |
| Max. output current | per standard output: 0.5 A, per safe output: 0.5 A, min. 20 mA |
| Fault response time | ≤ watchdog time |
| Connection technology | 1-/2-wire |
