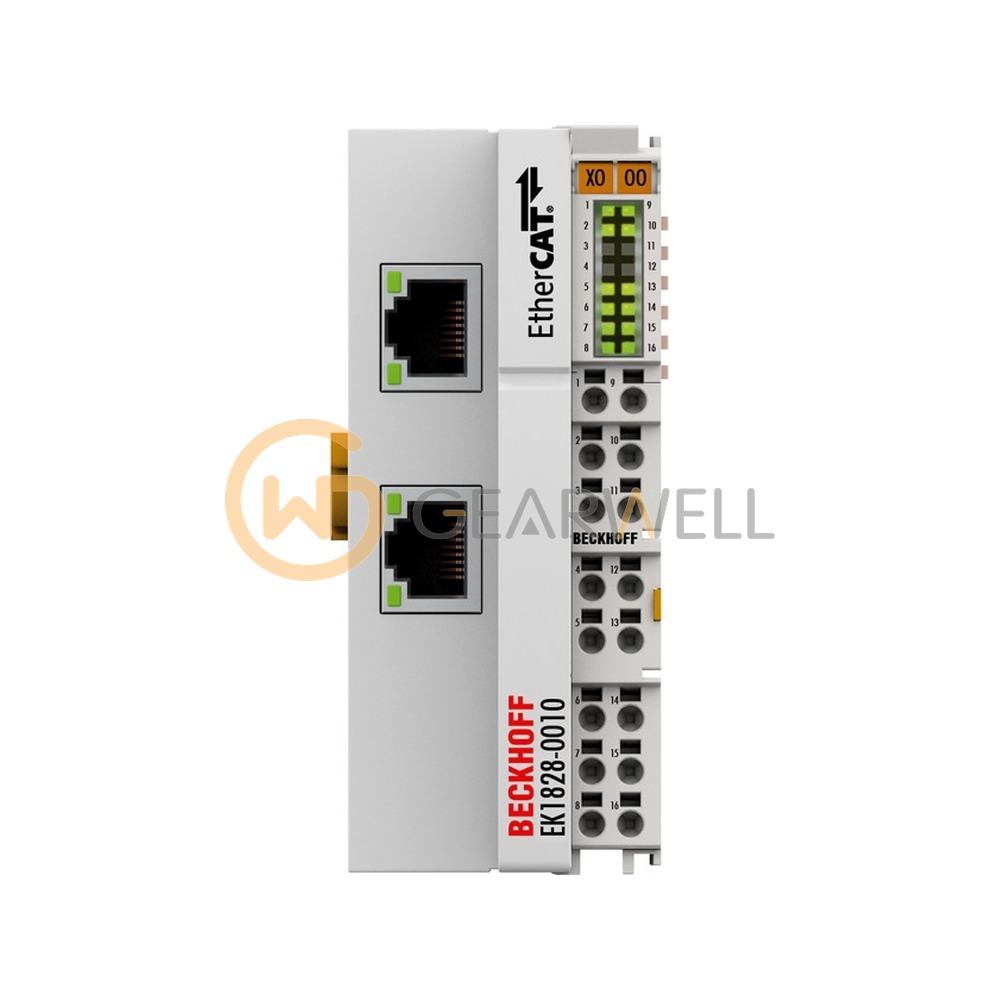

BECKHOFF EK1828-0010 EtherCAT Coupler with Integrated Digital Outputs
- Brand
- BECKHOFF
- Model
- EK1828-0010
- GEARWELL SKU
- GWP-000007903
- Category
- PLCs & I/O
Key specifications
- Protocol
- EtherCAT
- Bus interface
- 2 x RJ45
- Nominal voltage
- 24 V DC (-15%/+20%)
- Propagation delay
- approx. 1 µs
- Transmission rate
- 100 Mbit/s
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff EK1828-0010 is an EtherCAT Coupler with 8 integrated 24 V DC digital outputs of up to 0.5 A each (short-circuit proof). It connects EtherCAT Terminals to a 100BASE-TX EtherCAT network via 2 x RJ45 and supplies up to 1,000 mA to the E-bus. Check the full order number, including any suffix, on the module when requesting a quote.
Technical reference
| Product name | BECKHOFF EK1828-0010 EtherCAT Coupler with Integrated Digital Outputs |
|---|---|
| Brand | BECKHOFF |
| Model | EK1828-0010 |
| Category | PLCs & I/O |
| Protocol | EtherCAT |
| Bus interface | 2 x RJ45 |
| Nominal voltage | 24 V DC (-15%/+20%) |
| Propagation delay | approx. 1 µs |
| Transmission rate | 100 Mbit/s |
| Transmission medium | Ethernet/EtherCAT cable (min. Cat.5), shielded |
| Distance between stations | max. 100 m (100BASE-TX) |
| Number of EtherCAT Terminals | up to 65,534 |
