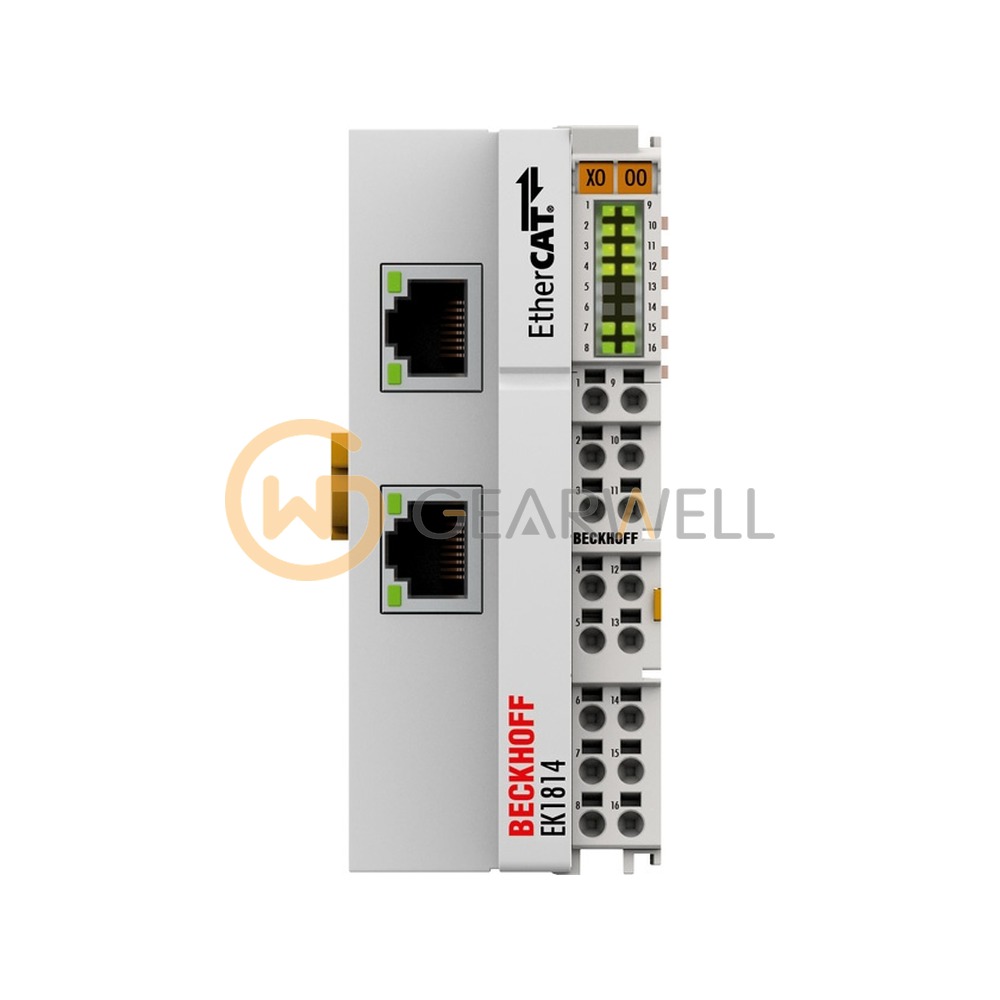

BECKHOFF EK1814 EtherCAT Coupler with Integrated Digital I/Os
- Brand
- BECKHOFF
- Model
- EK1814
- GEARWELL SKU
- GWP-000007900
- Category
- PLCs & I/O
Key specifications
- Protocol
- EtherCAT
- Bus interface
- 2 x RJ45
- Nominal voltage
- 24 V DC (-15%/+20%)
- Propagation delay
- approx. 1 µs
- Transmission rate
- 100 Mbit/s
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff EK1814 is an EtherCAT Coupler with integrated digital I/O: it connects EtherCAT Terminals to a 100BASE-TX EtherCAT network via 2 x RJ45 and adds 4 24 V DC inputs (3 ms filter) and 4 24 V DC outputs. It supplies up to 1,000 mA to the E-bus. Check the full order number, including any suffix, on the module when requesting a quote.
Technical reference
| Product name | BECKHOFF EK1814 EtherCAT Coupler with Integrated Digital I/Os |
|---|---|
| Brand | BECKHOFF |
| Model | EK1814 |
| Category | PLCs & I/O |
| Protocol | EtherCAT |
| Bus interface | 2 x RJ45 |
| Nominal voltage | 24 V DC (-15%/+20%) |
| Propagation delay | approx. 1 µs |
| Transmission rate | 100 Mbit/s |
| Transmission medium | Ethernet/EtherCAT cable (min. Cat.5), shielded |
| Distance between stations | max. 100 m (100BASE-TX) |
| Number of EtherCAT Terminals | up to 65,534 |
