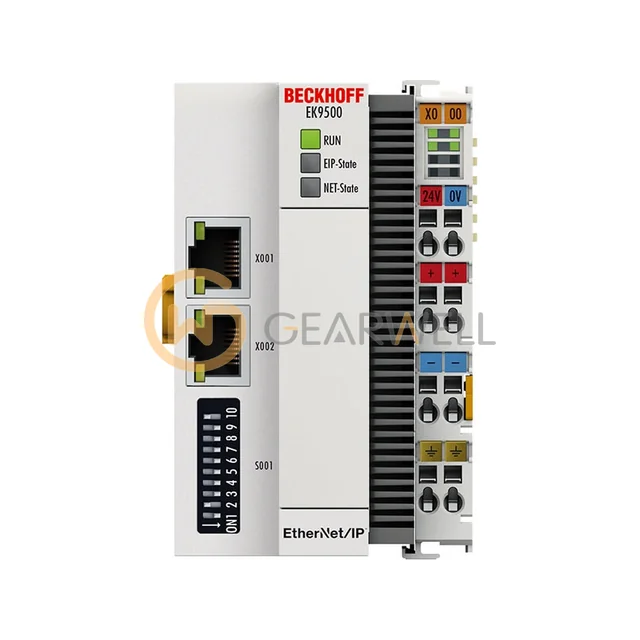

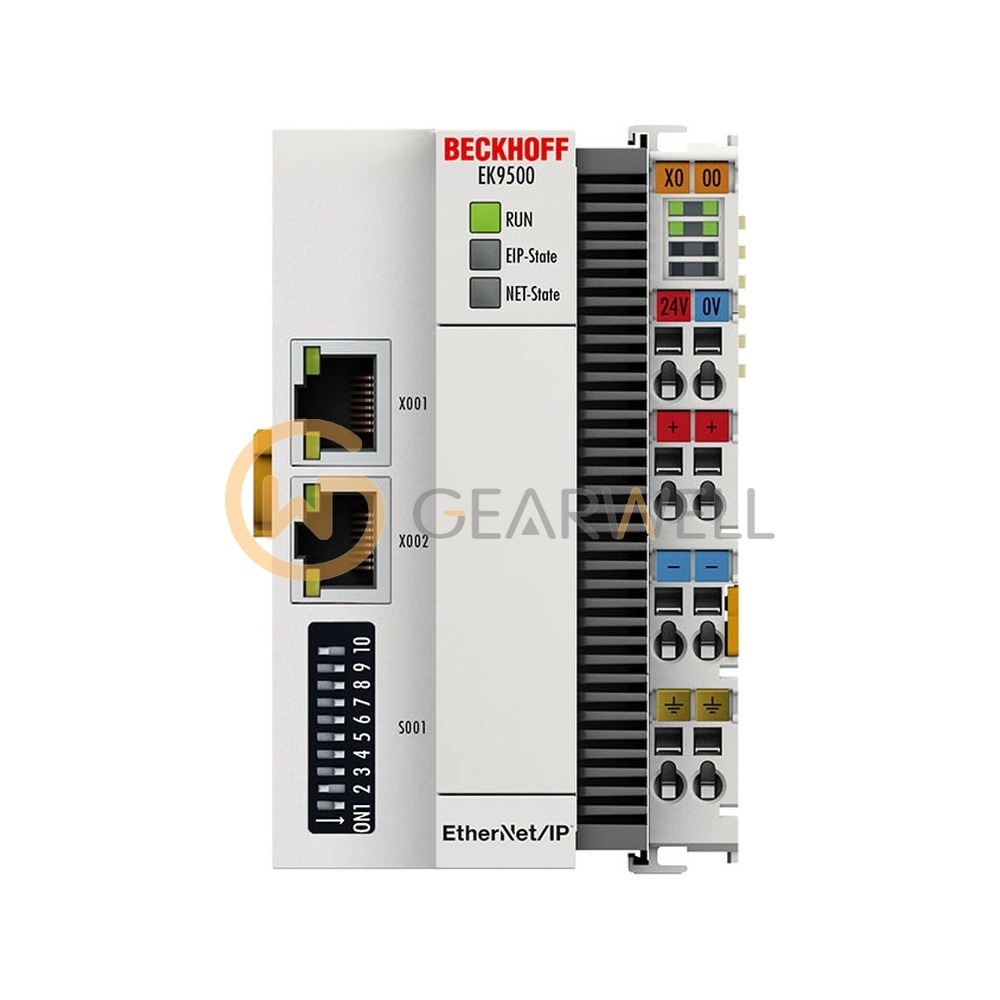

BECKHOFF EK9500 EtherNet/IP Bus Coupler
- Brand
- BECKHOFF
- Model
- EK9500
- GEARWELL SKU
- GWP-000007906
- Category
- PLCs & I/O
Key specifications
- Protocol
- EtherNet/IP™
- Power supply
- 24 V DC (-15%/+20%)
- Bus interface
- 2 x RJ45 (switched)
- Input current
- typ. 120 mA + (total E-bus current)/4
- Transmission rate
- 100 Mbit/s
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff EK9500 is a bus coupler that connects standard digital and analog EtherCAT Terminals and EtherCAT Box modules to EtherNet/IP networks. It has 2 switched RJ45 ports at 100 Mbit/s, runs on 24 V DC and supplies up to 2 A to the E-bus. Check the full order number, including any suffix, on the module when requesting a quote.
Technical reference
| Product name | BECKHOFF EK9500 EtherNet/IP Bus Coupler |
|---|---|
| Brand | BECKHOFF |
| Model | EK9500 |
| Category | PLCs & I/O |
| Protocol | EtherNet/IP™ |
| Power supply | 24 V DC (-15%/+20%) |
| Bus interface | 2 x RJ45 (switched) |
| Input current | typ. 120 mA + (total E-bus current)/4 |
| Transmission rate | 100 Mbit/s |
| Current consumption E-bus | up to 2 A |
| Number of EtherCAT Terminals | depending on the process data size |
| Type/number of peripheral signals | depending on the process data size |
