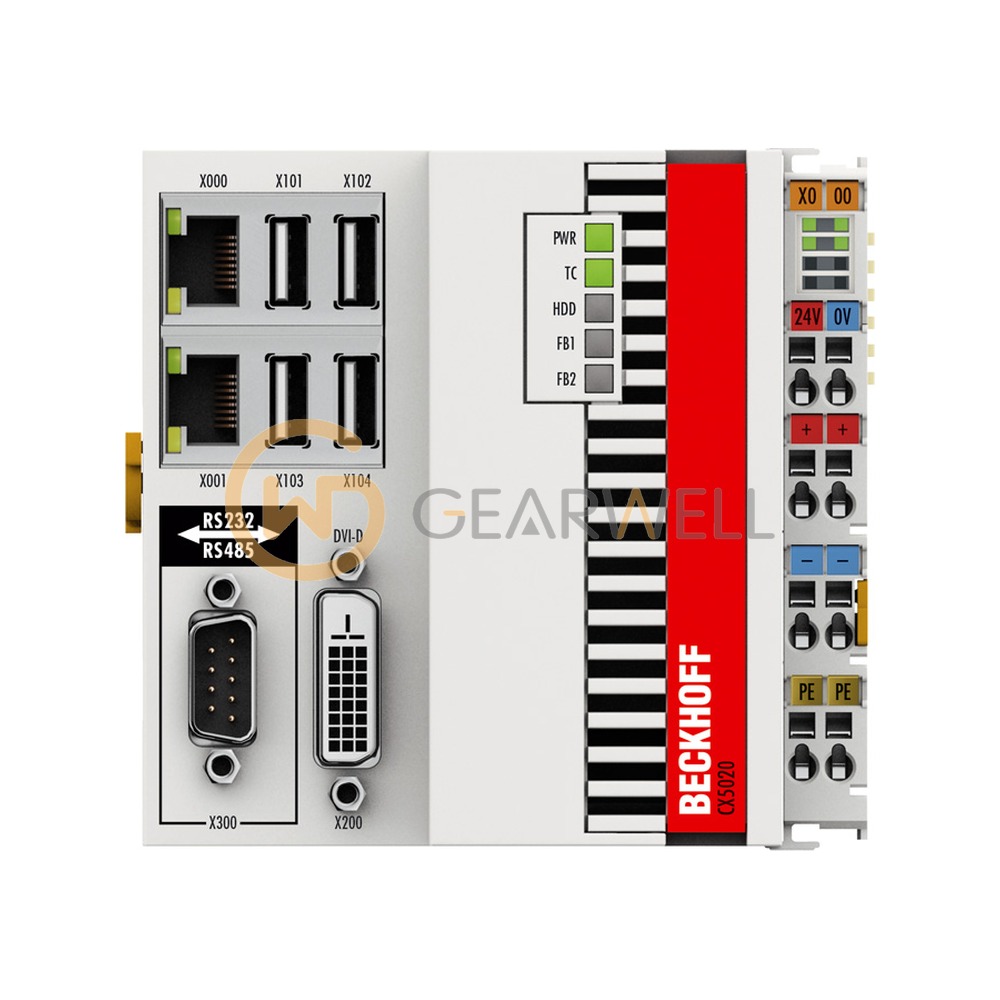

BECKHOFF CX5020-0120 CX5000 Embedded PC
- Brand
- BECKHOFF
- Model
- CX5020-0120
- GEARWELL SKU
- GWP-000011721
- Category
- PLCs & I/O
Key specifications
- Processor
- Intel Atom Z530, 1.6 GHz, 1 core
- Interfaces
- 2 x RJ45 10/100/1000 Mbit/s, 1 x DVI-D, 4 x USB 2.0, 1 x optional interface
- Main memory
- 512 MB RAM (expandable ex factory to 1 GB)
- Power supply
- 24 V DC (-15%/+20%)
- Ordering option
- CPU module, E-bus, Microsoft Windows Embedded Standard 2009, no TwinCAT
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | BECKHOFF CX5020-0120 CX5000 Embedded PC |
|---|---|
| Brand | BECKHOFF |
| Model | CX5020-0120 |
| Category | PLCs & I/O |
| Processor | Intel Atom Z530, 1.6 GHz, 1 core |
| Interfaces | 2 x RJ45 10/100/1000 Mbit/s, 1 x DVI-D, 4 x USB 2.0, 1 x optional interface |
| Main memory | 512 MB RAM (expandable ex factory to 1 GB) |
| Power supply | 24 V DC (-15%/+20%) |
| Ordering option | CPU module, E-bus, Microsoft Windows Embedded Standard 2009, no TwinCAT |
| Dimensions (W x H x D) | 106 x 100 x 92 mm |
| Max. power consumption | 13 W |
| Operating temperature | -25...+60 °C |
