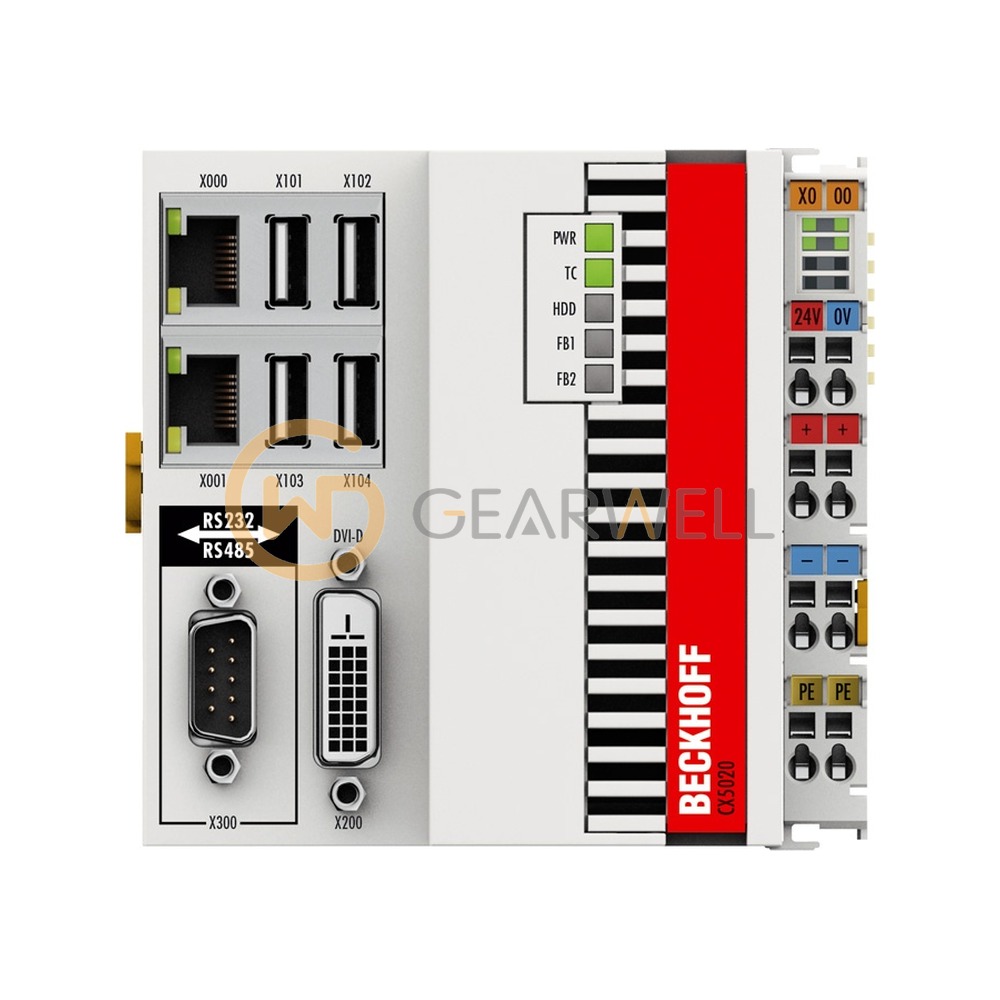

BECKHOFF CX5020 Embedded PC with Intel Atom
- Brand
- BECKHOFF
- Model
- CX5020
- GEARWELL SKU
- GWP-000007126
- Category
- HMIs & Industrial PCs
Key specifications
- Cooling
- passive
- Processor
- Intel Atom ® Z530, 1.6 GHz clock frequency
- Interfaces
- 2 x RJ45 10/100/1000 Mbit/s, 1 x DVI-D, 4 x USB 2.0, 1 x optional interface
- Main memory
- 512 MB RAM (expandable ex factory to 1 GB)
- 1-second UPS
- integrated (1 MB on CompactFlash ® card)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff CX5020 is a CX5000 series Embedded PC with a 1.6 GHz Intel Atom Z530 processor, 512 MB RAM (expandable ex factory to 1 GB) and a CompactFlash slot with a 128 MB card included. It has two RJ45 Ethernet ports (10/100/1000 Mbit/s), a DVI-D port, four USB 2.0 ports, one optional interface, an integrated 1-second UPS and a battery-backed clock, and connects E-bus or K-bus terminals with automatic recognition. It runs Windows Embedded CE 6 or Windows Embedded Standard 2009 with TwinCAT 2 or TwinCAT 3 runtime, is cooled passively, runs on 24 V DC (max. 13 W), measures 106 x 100 x 92 mm and is rated IP20 for -25 to +60 °C. Beckhoff lists the CX5020 as a service-phase product. Check the full order number, including any suffix, on the device when requesting a quote.
Technical reference
| Product name | BECKHOFF CX5020 Embedded PC with Intel Atom |
|---|---|
| Brand | BECKHOFF |
| Model | CX5020 |
| Category | HMIs & Industrial PCs |
| Cooling | passive |
| Processor | Intel Atom ® Z530, 1.6 GHz clock frequency |
| Interfaces | 2 x RJ45 10/100/1000 Mbit/s, 1 x DVI-D, 4 x USB 2.0, 1 x optional interface |
| Main memory | 512 MB RAM (expandable ex factory to 1 GB) |
| 1-second UPS | integrated (1 MB on CompactFlash ® card) |
| Flash memory | slot for CompactFlash ® card, 128 MB included (expandable) |
| Diagnostics LED | 1 x power, 1 x TC status, 1 x flash access, 2 x bus status |
| Number of cores | 1 |
