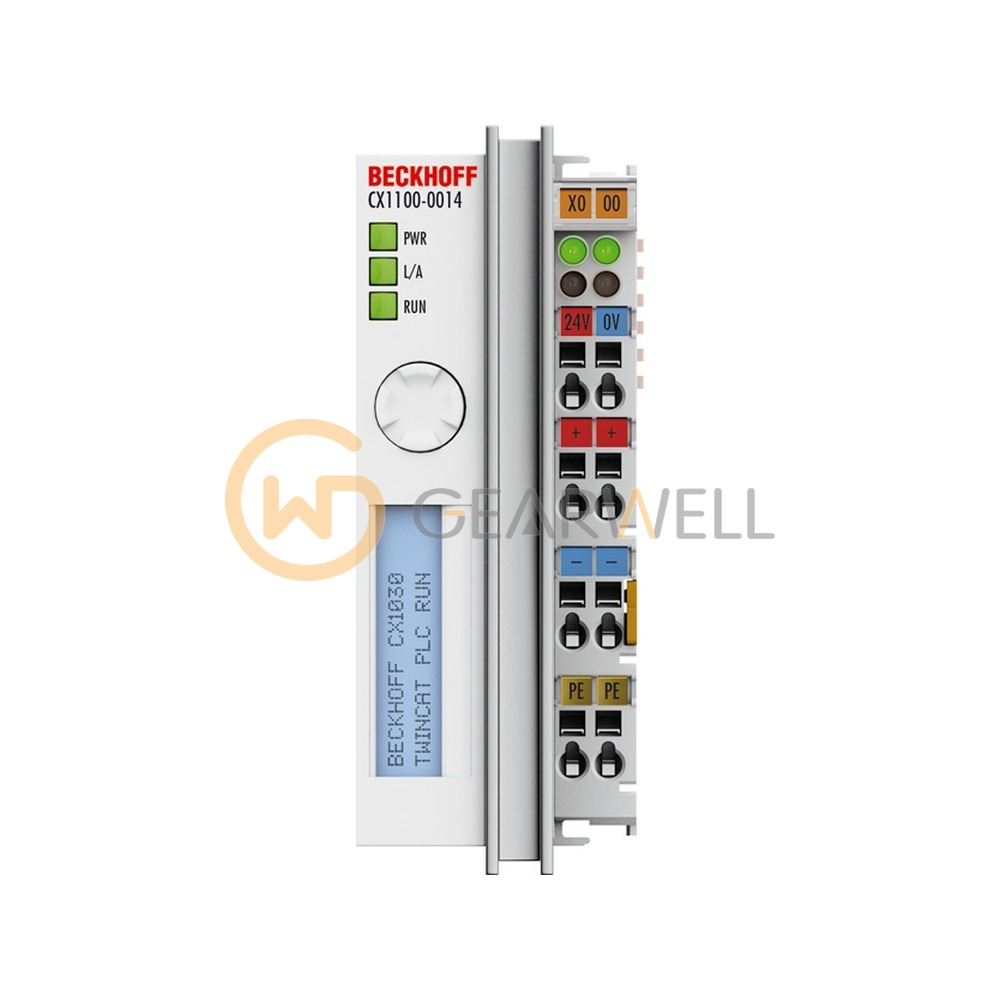

BECKHOFF CX1100-0014 Power Supply Units and I/O Interfaces for CX1030
- Brand
- BECKHOFF
- Model
- CX1100-0014
- GEARWELL SKU
- GWP-000007125
- Category
- HMIs & Industrial PCs
Key specifications
- NOVRAM
- 8 kbytes
- Weight
- approx. 235 g
- Display
- FSTN display 2 lines x 16 characters of text, illuminated
- Power supply
- 24 V DC (-15%/+20%)
- Connection type
- spring-loaded technique (adapter terminal)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff CX1100-0014 is a power supply unit and I/O interface for CX1030 systems that connects Beckhoff EtherCAT Terminals (ELxxxx) as local I/O, with the I/O data stored directly in the main memory of the CPU. It runs on 24 V DC, supplies 2 A to the E-bus, and has an 8 kbyte NOVRAM for fail-safe storage of process data and an illuminated display with two lines of 16 characters for system and user messages. It measures 42 x 109 x 92 mm and is rated IP20 for 0 to 55 °C; Beckhoff lists it as a service-phase product. Check the full order number, including any suffix, on the device when requesting a quote.
Technical reference
| Product name | BECKHOFF CX1100-0014 Power Supply Units and I/O Interfaces for CX1030 |
|---|---|
| Brand | BECKHOFF |
| Model | CX1100-0014 |
| Category | HMIs & Industrial PCs |
| NOVRAM | 8 kbytes |
| Weight | approx. 235 g |
| Display | FSTN display 2 lines x 16 characters of text, illuminated |
| Power supply | 24 V DC (-15%/+20%) |
| Connection type | spring-loaded technique (adapter terminal) |
| Diagnostics LED | 1 x PWR, 1 x L/A, 1 x Run |
| Current supply E-bus | 2 A |
| Dimensions (W x H x D) | 42 mm x 109 mm x 92 mm |
