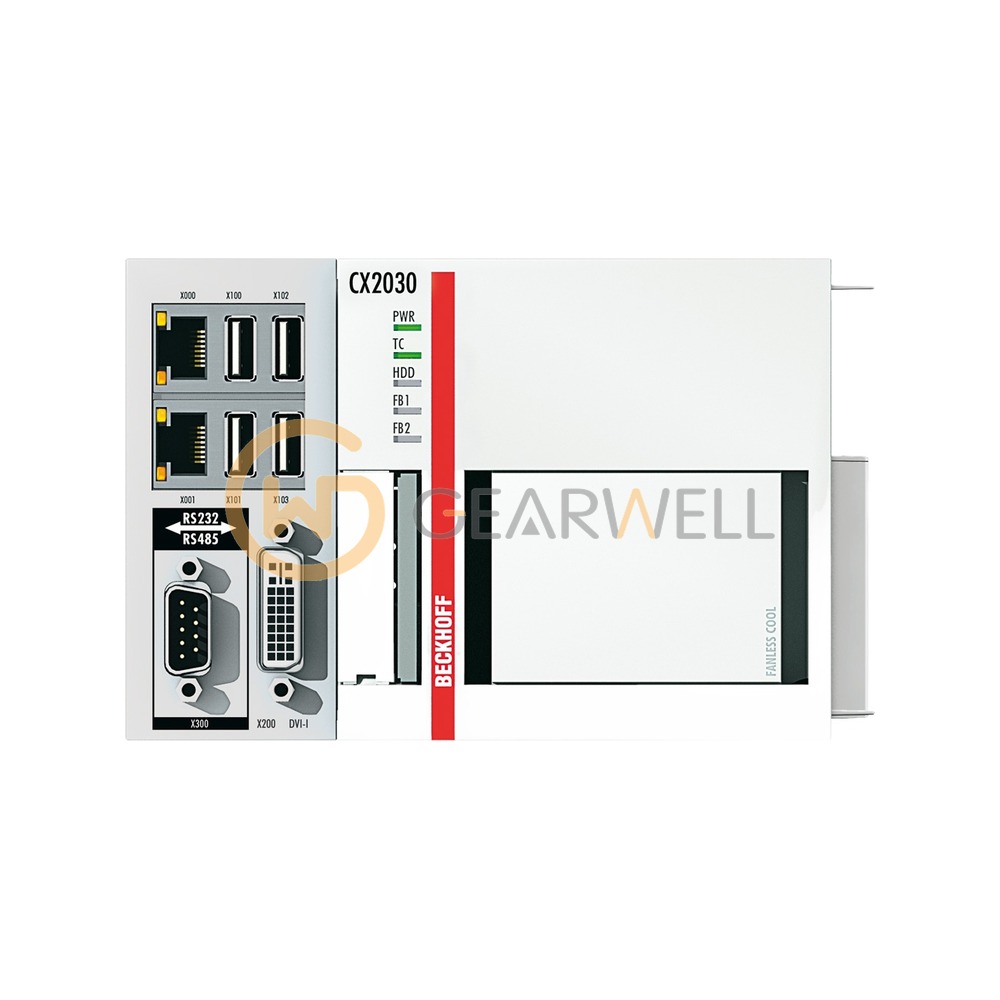

BECKHOFF CX2030-0111 CX2000 Embedded PC
- Brand
- BECKHOFF
- Model
- CX2030-0111
- GEARWELL SKU
- GWP-000011720
- Category
- PLCs & I/O
Key specifications
- Processor
- Intel Core i7 2610UE, 1.5 GHz, 2 cores
- Interfaces
- 2 x RJ45 10/100/1000 Mbit/s, 1 x DVI-I, 4 x USB 2.0, 1 x optional interface
- Main memory
- 2 GB DDR3 RAM (expandable ex factory to 4 GB)
- Power supply
- 24 V DC (-15%/+20%)
- Ordering option
- CPU module, Microsoft Windows Embedded Compact 7, TwinCAT 2 PLC runtime
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | BECKHOFF CX2030-0111 CX2000 Embedded PC |
|---|---|
| Brand | BECKHOFF |
| Model | CX2030-0111 |
| Category | PLCs & I/O |
| Processor | Intel Core i7 2610UE, 1.5 GHz, 2 cores |
| Interfaces | 2 x RJ45 10/100/1000 Mbit/s, 1 x DVI-I, 4 x USB 2.0, 1 x optional interface |
| Main memory | 2 GB DDR3 RAM (expandable ex factory to 4 GB) |
| Power supply | 24 V DC (-15%/+20%) |
| Ordering option | CPU module, Microsoft Windows Embedded Compact 7, TwinCAT 2 PLC runtime |
| Dimensions (W x H x D) | 144 x 99 x 91 mm |
| Max. power consumption | 27 W |
| Operating temperature | -25...+60 °C |
