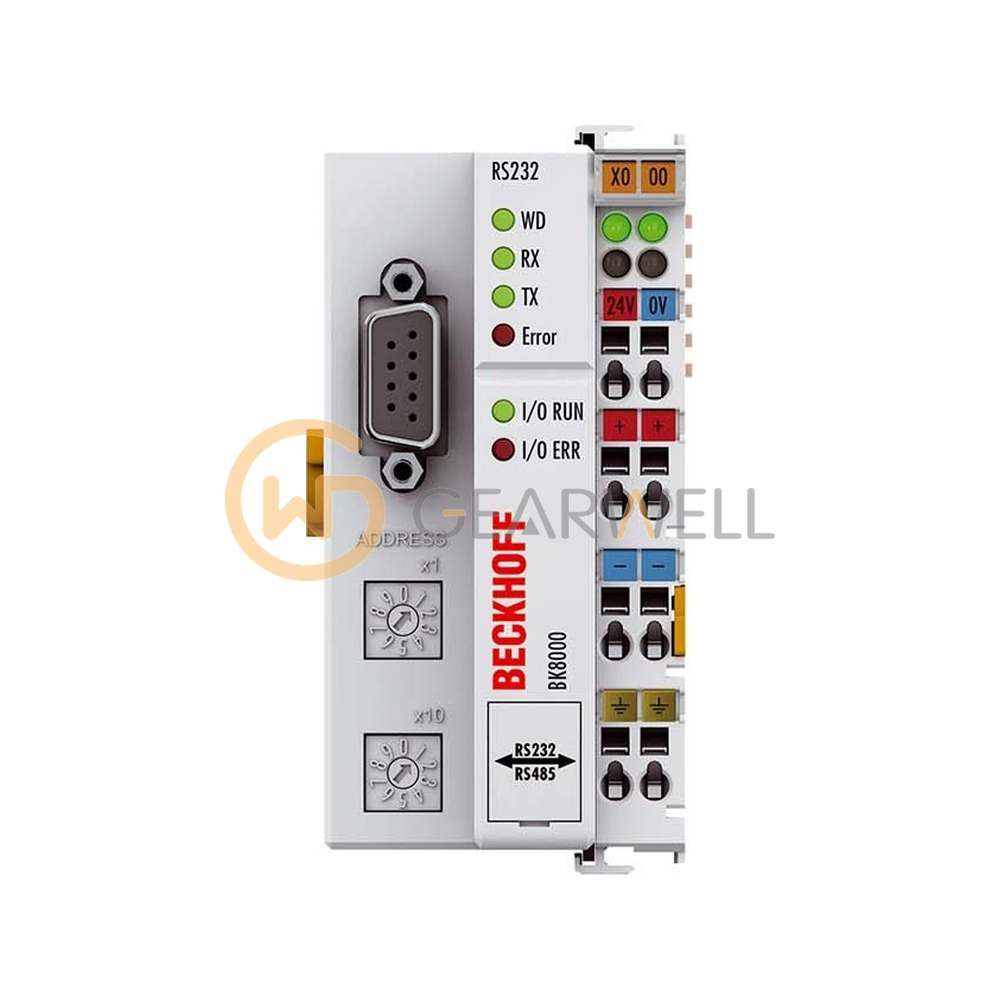

BECKHOFF BK8000 RS485 Bus Coupler
- Brand
- BECKHOFF
- Model
- BK8000
- GEARWELL SKU
- GWP-000007889
- Category
- PLCs & I/O
Key specifications
- Protocol
- open, documented protocol
- Bus interface
- RS485 D-sub
- Transmission rate
- 9.6 kbaud, 19.2 kbaud, 38.4 kbaud
- Transmission medium
- screened, twisted copper cable 2 x 0.25 mm² (RS485)
- Number of Bus Terminals
- 64
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff BK8000 is a RS485 Bus Coupler that connects up to 64 K-bus Bus Terminals to the network. It uses an open, documented protocol at 9.6, 19.2 or 38.4 kbaud via a D-sub connector. It runs on 24 V DC and passes up to 10 A through the power contacts. Check the full order number, including any suffix, on the unit when requesting a quote.
Technical reference
| Product name | BECKHOFF BK8000 RS485 Bus Coupler |
|---|---|
| Brand | BECKHOFF |
| Model | BK8000 |
| Category | PLCs & I/O |
| Protocol | open, documented protocol |
| Bus interface | RS485 D-sub |
| Transmission rate | 9.6 kbaud, 19.2 kbaud, 38.4 kbaud |
| Transmission medium | screened, twisted copper cable 2 x 0.25 mm² (RS485) |
| Number of Bus Terminals | 64 |
| Analog peripheral signals | 256 inputs/outputs |
| Digital peripheral signals | 512 inputs/outputs |
| Max. number of bytes fieldbus | 512 byte input and 512 byte output |
