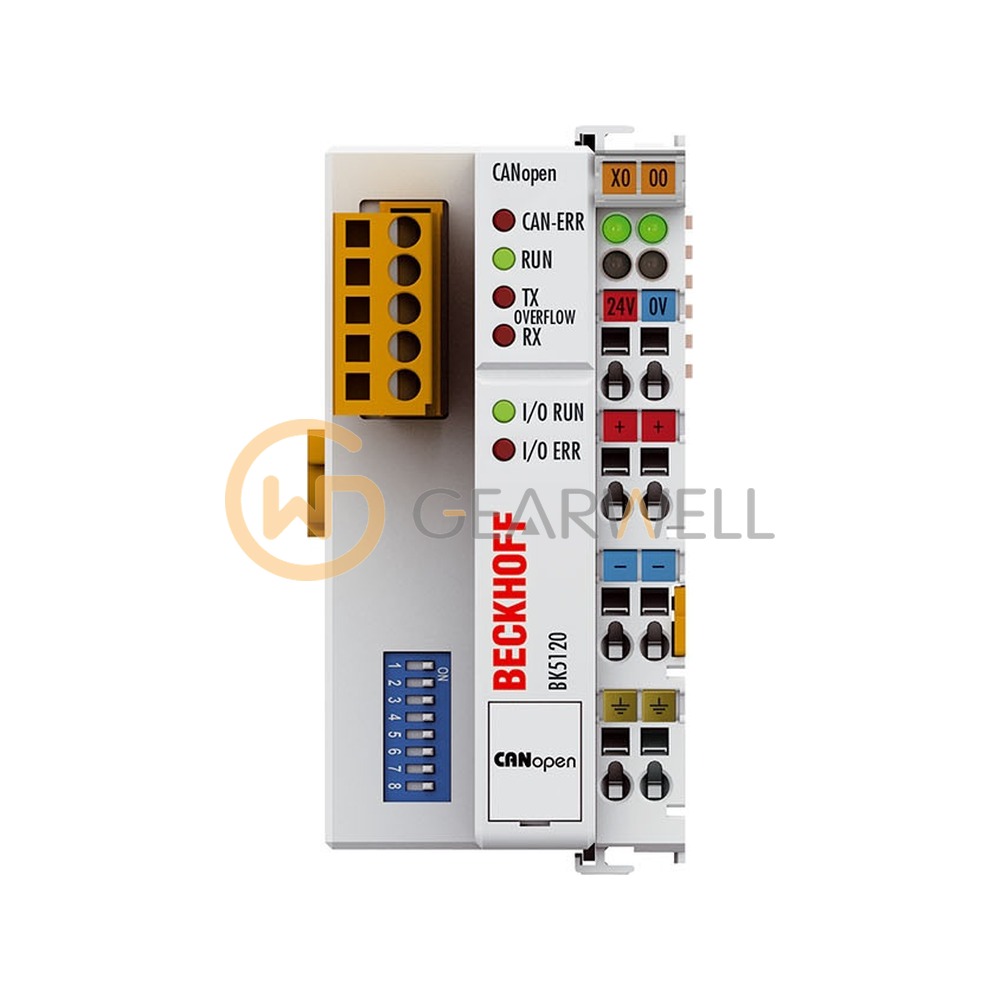

BECKHOFF BK5120 CANopen Bus Coupler
- Brand
- BECKHOFF
- Model
- BK5120
- GEARWELL SKU
- GWP-000007121
- Category
- PLCs & I/O
Key specifications
- Bus interface
- 1 x open style connector, 5-pin, included
- Transmission rate
- up to 1 Mbaud
- Number of PDOs (CANopen)
- 16 Tx/16 Rx
- Number of Bus Terminals
- 64 (255 with K-bus extension)
- Analog peripheral signals
- 60 inputs/outputs
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff BK5120 is a CANopen Bus Coupler that connects up to 64 (255 with K-bus extension) K-bus Bus Terminals to the network. It supports up to 1 Mbaud with 16 Tx/16 Rx PDOs and connects via a 5-pin open style connector. It runs on 24 V DC and passes up to 10 A through the power contacts. Check the full order number, including any suffix, on the unit when requesting a quote.
Technical reference
| Product name | BECKHOFF BK5120 CANopen Bus Coupler |
|---|---|
| Brand | BECKHOFF |
| Model | BK5120 |
| Category | PLCs & I/O |
| Bus interface | 1 x open style connector, 5-pin, included |
| Transmission rate | up to 1 Mbaud |
| Number of PDOs (CANopen) | 16 Tx/16 Rx |
| Number of Bus Terminals | 64 (255 with K-bus extension) |
| Analog peripheral signals | 60 inputs/outputs |
| Digital peripheral signals | 960 inputs/outputs |
| Additional CANopen features | life, node guarding, emergency object, variable mapping, store/restore |
| Max. number of bytes fieldbus | 16 Tx/Rx PDOs |
