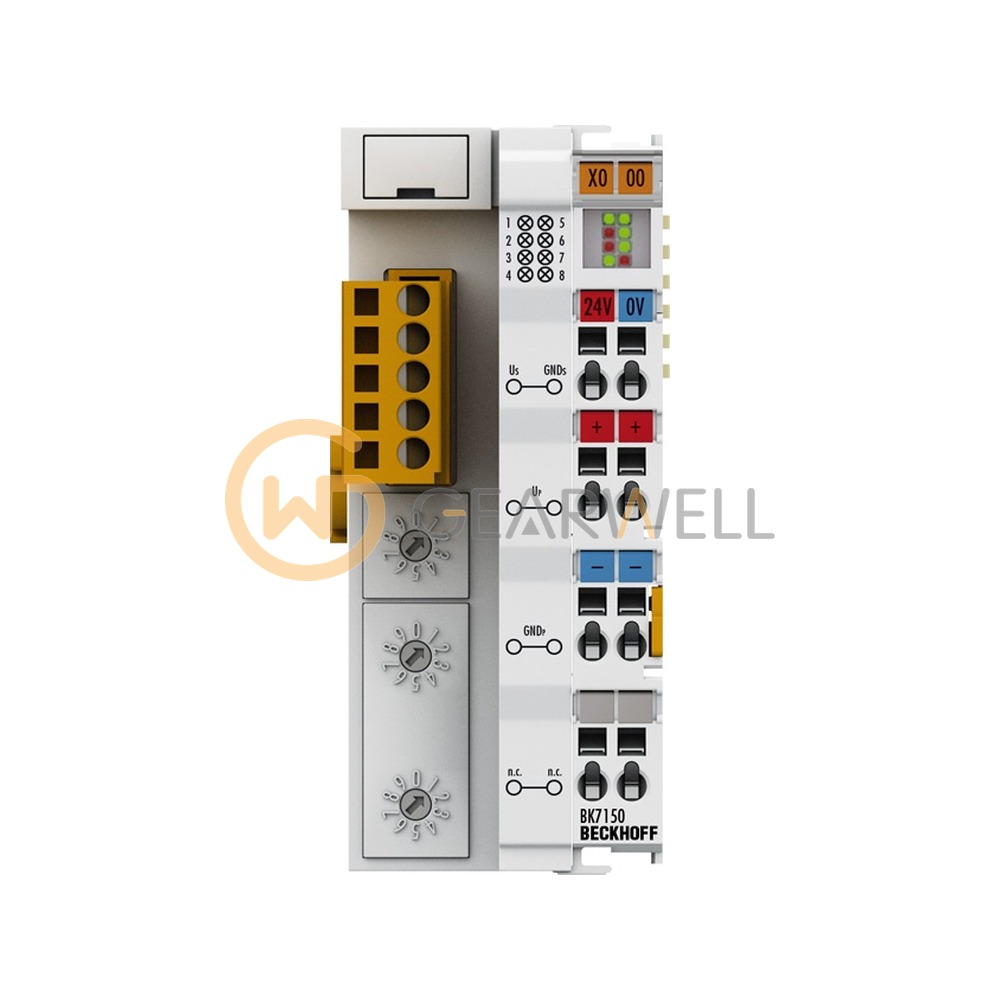

BECKHOFF BK7150 CC-Link Compact Bus Coupler
- Brand
- BECKHOFF
- Model
- BK7150
- GEARWELL SKU
- GWP-000007888
- Category
- PLCs & I/O
Key specifications
- Power supply
- 24 V DC (-15%/+20%)
- Bus interface
- 1 x open style connector, 5-pin, included
- Transmission rate
- 156 kbaud…10 Mbaud
- Transmission medium
- shielded 3-core, twisted pair cable
- Number of Bus Terminals
- 64 (255 with K-bus extension)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff BK7150 is a CC-Link compact Bus Coupler that connects up to 64 (255 with K-bus extension) K-bus Bus Terminals to the network. It supports 156 kbaud to 10 Mbaud and connects via a 5-pin open style connector. It runs on 24 V DC and passes up to 10 A through the power contacts. Check the full order number, including any suffix, on the unit when requesting a quote.
Technical reference
| Product name | BECKHOFF BK7150 CC-Link Compact Bus Coupler |
|---|---|
| Brand | BECKHOFF |
| Model | BK7150 |
| Category | PLCs & I/O |
| Power supply | 24 V DC (-15%/+20%) |
| Bus interface | 1 x open style connector, 5-pin, included |
| Transmission rate | 156 kbaud…10 Mbaud |
| Transmission medium | shielded 3-core, twisted pair cable |
| Number of Bus Terminals | 64 (255 with K-bus extension) |
| Analog peripheral signals | 16 inputs/outputs |
| Digital peripheral signals | 112 inputs/outputs |
| Max. number of bytes fieldbus | 32 byte input and 32 byte output |
