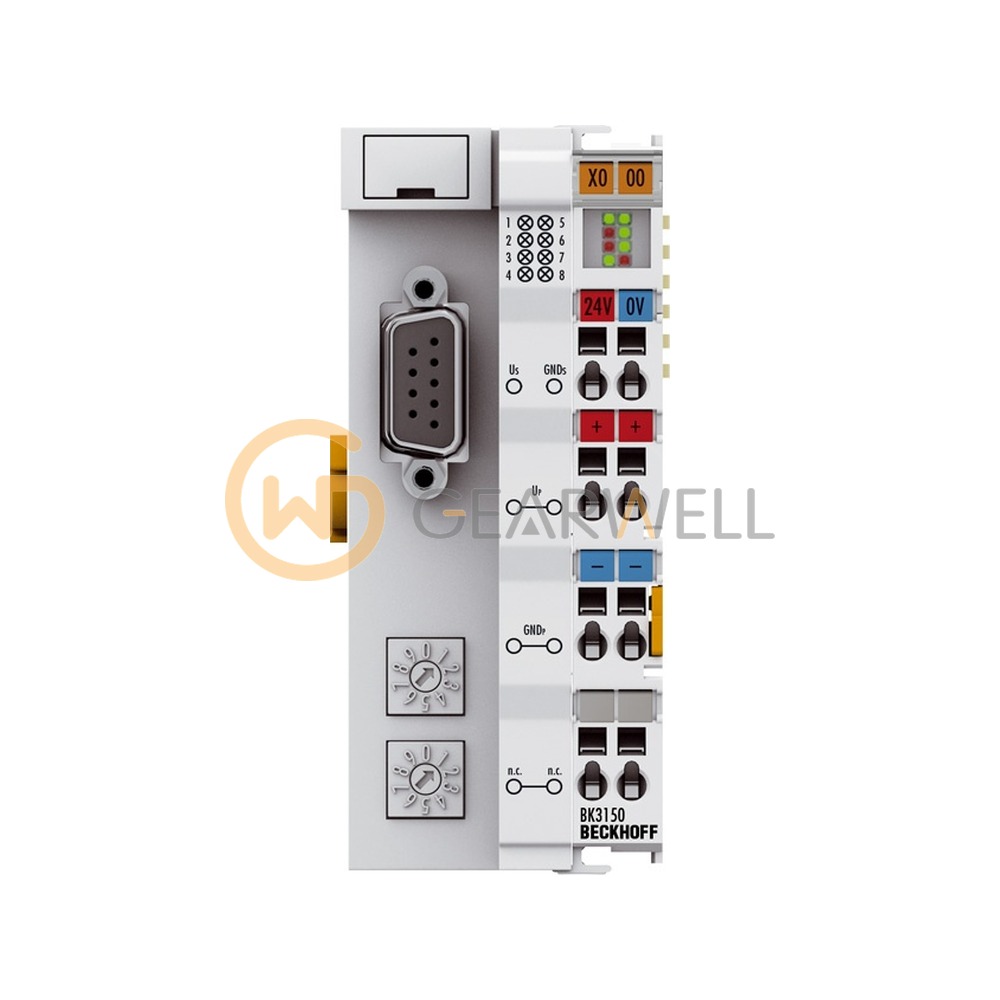

BECKHOFF BK3150 PROFIBUS Compact Bus Coupler
- Brand
- BECKHOFF
- Model
- BK3150
- GEARWELL SKU
- GWP-000007120
- Category
- PLCs & I/O
Key specifications
- Power supply
- 24 V DC (-15%/+20%)
- Bus interface
- 1 x D-sub 9-pin socket with shielding
- Input current
- 70 mA + (total K-bus current)/4, 500 mA max.
- Transmission rate
- automatic detection up to 12 Mbaud
- Transmission medium
- shielded copper cable, 2 x 0.25 mm²
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff BK3150 is a PROFIBUS compact Bus Coupler that connects up to 64 (255 with K-bus extension) K-bus Bus Terminals to the network. It detects the baud rate automatically up to 12 Mbaud and connects via a 9-pin D-sub socket. It runs on 24 V DC and passes up to 10 A through the power contacts. Check the full order number, including any suffix, on the unit when requesting a quote.
Technical reference
| Product name | BECKHOFF BK3150 PROFIBUS Compact Bus Coupler |
|---|---|
| Brand | BECKHOFF |
| Model | BK3150 |
| Category | PLCs & I/O |
| Power supply | 24 V DC (-15%/+20%) |
| Bus interface | 1 x D-sub 9-pin socket with shielding |
| Input current | 70 mA + (total K-bus current)/4, 500 mA max. |
| Transmission rate | automatic detection up to 12 Mbaud |
| Transmission medium | shielded copper cable, 2 x 0.25 mm² |
| Current supply K-bus | 1750 mA |
| Number of Bus Terminals | 64 (255 with K-bus extension) |
| Max. number of bytes fieldbus | 128 byte input and 128 byte output |
