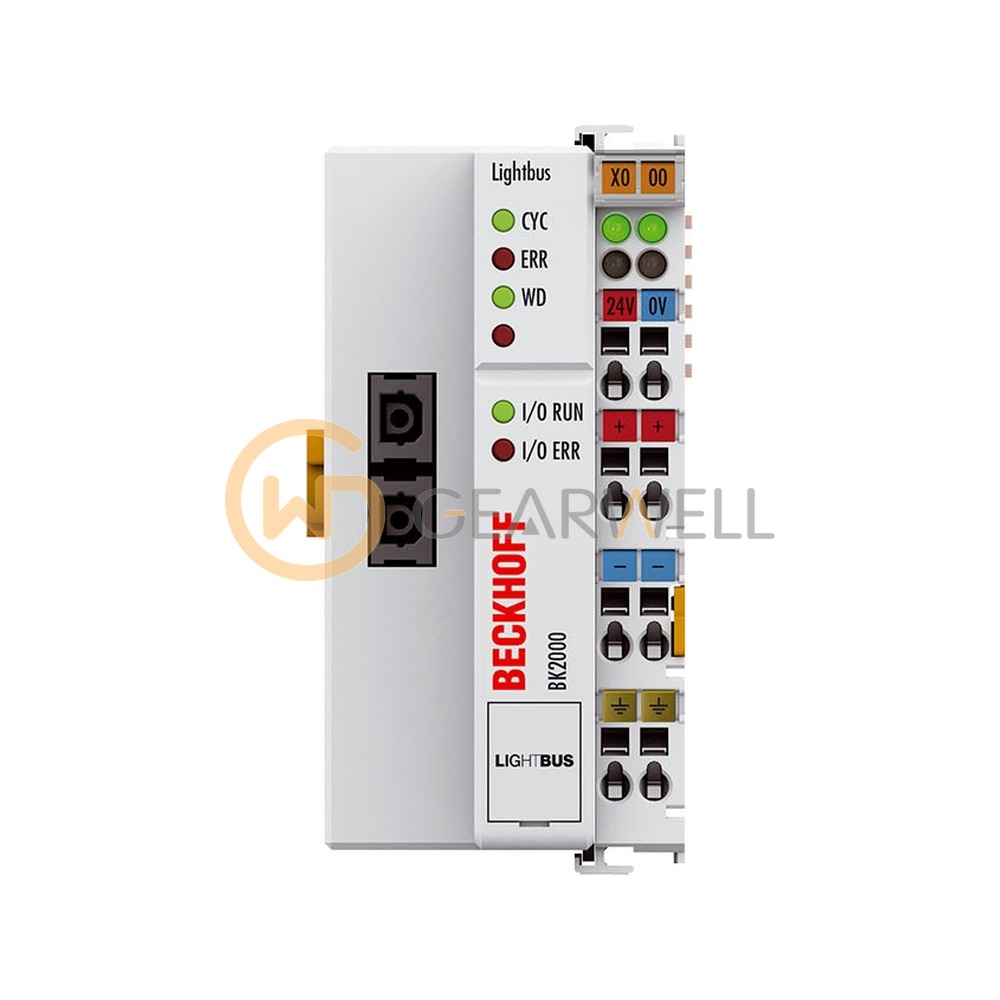

BECKHOFF BK2000 Lightbus Bus Coupler
- Brand
- BECKHOFF
- Model
- BK2000
- GEARWELL SKU
- GWP-000007119
- Category
- PLCs & I/O
Key specifications
- Power supply
- 24 V DC (-15%/+20%)
- Bus interface
- 2 x standard fiber-optic connector Z1000 (plastic fiber), Z1010 (HCS fiber)
- Transmission rate
- 2.5 Mbaud
- Transmission medium
- fiber-optic conductor: APF (plastic) fiber (1,000 µm) or HCS fiber (200 µm)
- Number of Bus Terminals
- 64
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff BK2000 is a Lightbus fiber-optic Bus Coupler that connects up to 64 K-bus Bus Terminals to the network. It runs at 2.5 Mbaud over plastic (APF) or HCS fiber, for up to 45 m or 300 m between stations. It runs on 24 V DC and passes up to 10 A through the power contacts. Check the full order number, including any suffix, on the unit when requesting a quote.
Technical reference
| Product name | BECKHOFF BK2000 Lightbus Bus Coupler |
|---|---|
| Brand | BECKHOFF |
| Model | BK2000 |
| Category | PLCs & I/O |
| Power supply | 24 V DC (-15%/+20%) |
| Bus interface | 2 x standard fiber-optic connector Z1000 (plastic fiber), Z1010 (HCS fiber) |
| Transmission rate | 2.5 Mbaud |
| Transmission medium | fiber-optic conductor: APF (plastic) fiber (1,000 µm) or HCS fiber (200 µm) |
| Number of Bus Terminals | 64 |
| Analog peripheral signals | 128 inputs/outputs |
| Digital peripheral signals | 512 inputs/outputs |
| Max. number of bytes fieldbus | 512 byte input and 512 byte output |
