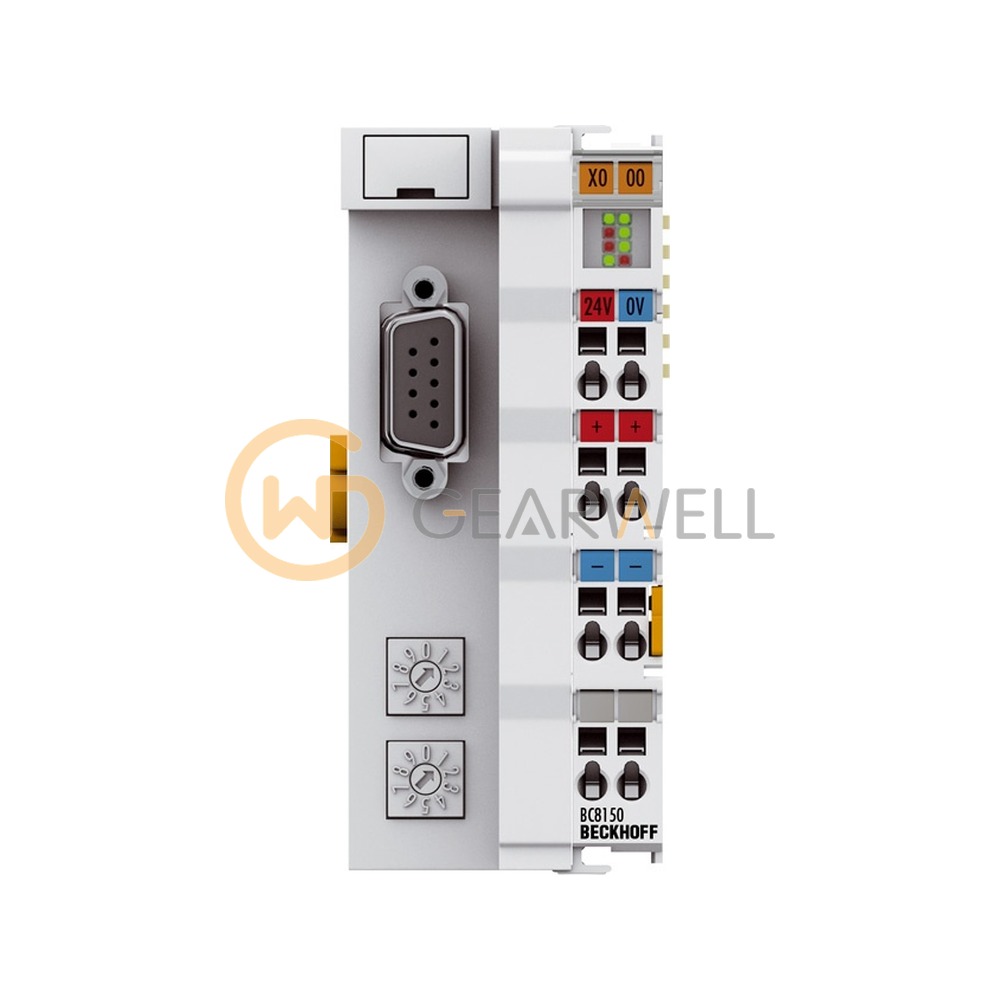

BECKHOFF BC8150 RS232 Bus Terminal Controller
- Brand
- BECKHOFF
- Model
- BC8150
- GEARWELL SKU
- GWP-000007880
- Category
- PLCs & I/O
Key specifications
- Power supply
- 24 V DC (-15%/+20%)
- Bus interface
- RS232 D-sub
- Transmission rate
- 1.2 kbaud…38.4 kbaud
- Number of Bus Terminals
- 64 (255 with K-bus extension)
- Analog peripheral signals
- 128 inputs/outputs
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff BC8150 is a RS232 Bus Terminal Controller: a Bus Coupler with a built-in PLC, programmed in TwinCAT to IEC 61131-3, with 48 kbyte program memory and 32 kbyte data memory. It runs one PLC task at about 3 ms per 1,000 instructions. Check the full order number, including any suffix, on the unit when requesting a quote.
Technical reference
| Product name | BECKHOFF BC8150 RS232 Bus Terminal Controller |
|---|---|
| Brand | BECKHOFF |
| Model | BC8150 |
| Category | PLCs & I/O |
| Power supply | 24 V DC (-15%/+20%) |
| Bus interface | RS232 D-sub |
| Transmission rate | 1.2 kbaud…38.4 kbaud |
| Number of Bus Terminals | 64 (255 with K-bus extension) |
| Analog peripheral signals | 128 inputs/outputs |
| Digital peripheral signals | 1,020 inputs/outputs |
| Max. number of bytes fieldbus | 512 byte input and 512 byte output |
| Max. number of bytes process image | 512 byte input and 512 byte output |
