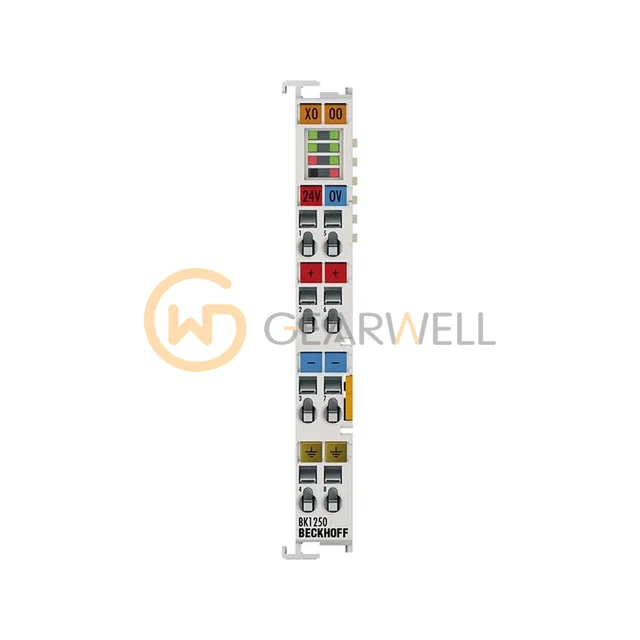

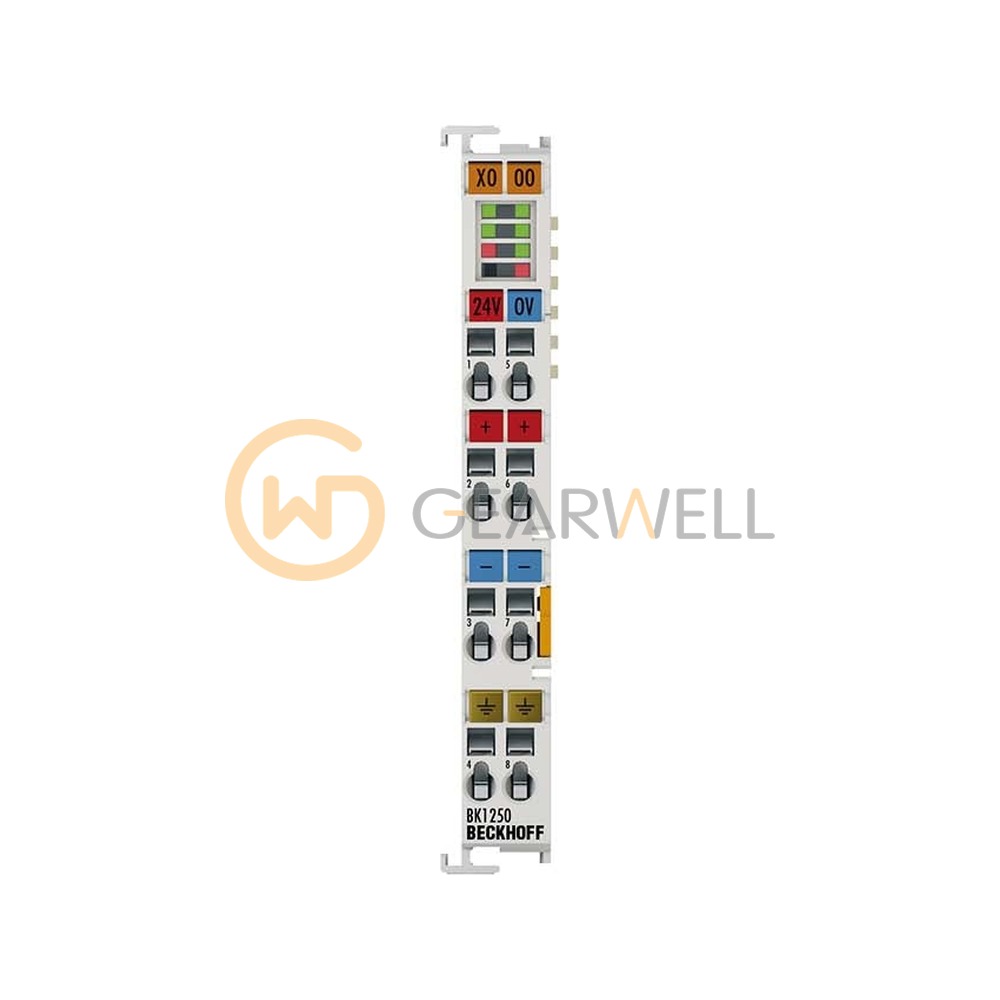

BECKHOFF BK1250 Compact Coupler for EtherCAT and Bus Terminals
- Brand
- BECKHOFF
- Model
- BK1250
- GEARWELL SKU
- GWP-000007883
- Category
- PLCs & I/O
Key specifications
- Protocol
- EtherCAT
- Power supply
- 24 V DC (-15%/+20%)
- Bus interface
- via E-bus contacts
- Transmission rate
- 100 Mbit/s
- Number of Bus Terminals
- 64 (255 with K-bus extension)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff BK1250 is a compact coupler that connects K-bus Bus Terminals into an EtherCAT Terminal station via the E-bus contacts, for mixed use of standard Bus Terminals and EtherCAT Terminals in one station. It handles up to 64 Bus Terminals (255 with K-bus extension) and supplies up to 500 mA to the K-bus. Check the full order number, including any suffix, on the unit when requesting a quote.
Technical reference
| Product name | BECKHOFF BK1250 Compact Coupler for EtherCAT and Bus Terminals |
|---|---|
| Brand | BECKHOFF |
| Model | BK1250 |
| Category | PLCs & I/O |
| Protocol | EtherCAT |
| Power supply | 24 V DC (-15%/+20%) |
| Bus interface | via E-bus contacts |
| Transmission rate | 100 Mbit/s |
| Number of Bus Terminals | 64 (255 with K-bus extension) |
| Analog peripheral signals | 256 inputs/outputs |
| Digital peripheral signals | 8,192 inputs/outputs |
| Max. number of bytes fieldbus | 1024 byte input and 1024 byte output |
