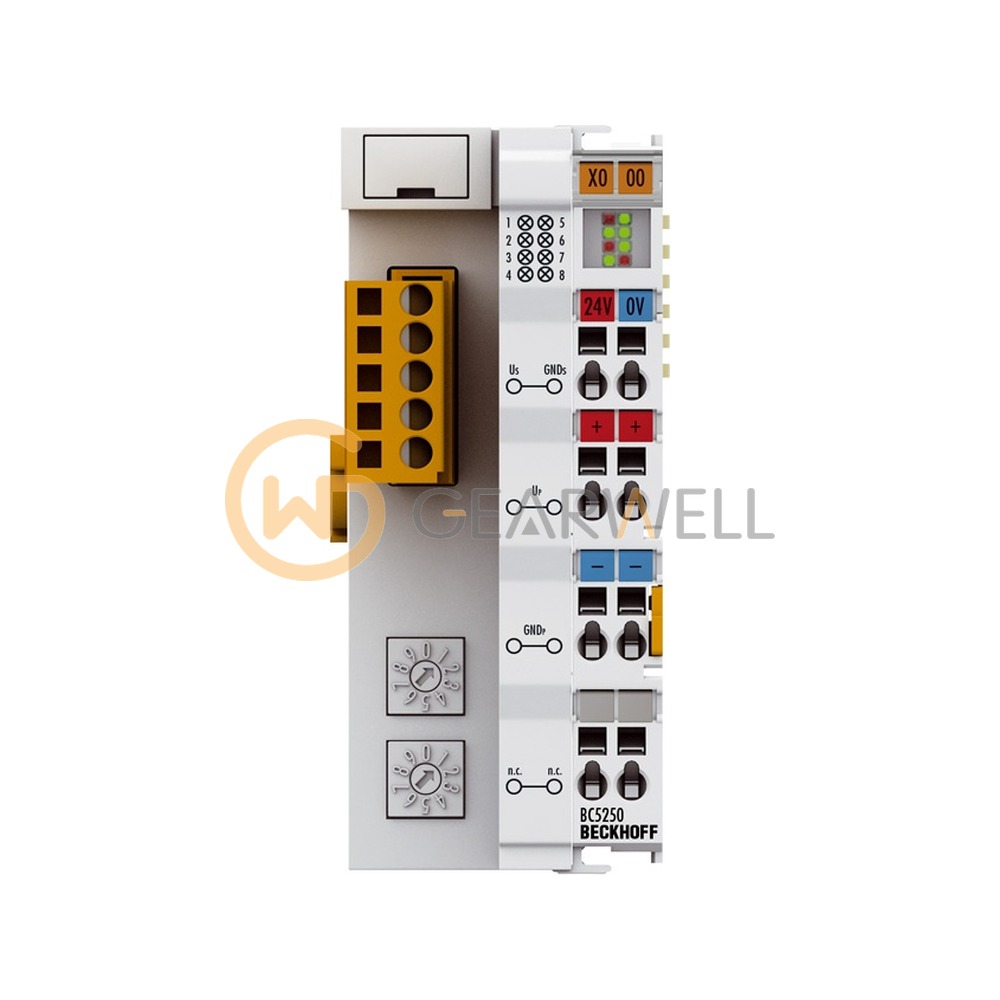

BECKHOFF BC5250 DeviceNet Compact Bus Terminal Controller
- Brand
- BECKHOFF
- Model
- BC5250
- GEARWELL SKU
- GWP-000007878
- Category
- PLCs & I/O
Key specifications
- Interfaces
- programming and configuration interface
- Bus interface
- open style connector, 5-pin
- Transmission rate
- automatic detection up to 500 kbaud
- Number of Bus Terminals
- 64 (255 with K-bus extension)
- Analog peripheral signals
- 128 inputs/outputs
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff BC5250 is a DeviceNet compact Bus Terminal Controller: a Bus Coupler with a built-in PLC, programmed in TwinCAT to IEC 61131-3, with 48 kbyte program memory and 32 kbyte data memory. It runs one PLC task at about 3 ms per 1,000 instructions. Check the full order number, including any suffix, on the unit when requesting a quote.
Technical reference
| Product name | BECKHOFF BC5250 DeviceNet Compact Bus Terminal Controller |
|---|---|
| Brand | BECKHOFF |
| Model | BC5250 |
| Category | PLCs & I/O |
| Interfaces | programming and configuration interface |
| Bus interface | open style connector, 5-pin |
| Transmission rate | automatic detection up to 500 kbaud |
| Number of Bus Terminals | 64 (255 with K-bus extension) |
| Analog peripheral signals | 128 inputs/outputs |
| Digital peripheral signals | 512 inputs/outputs |
| Max. number of bytes fieldbus | 512 byte input and 512 byte output |
| Max. number of bytes process image | 512 byte input and 512 byte output |
