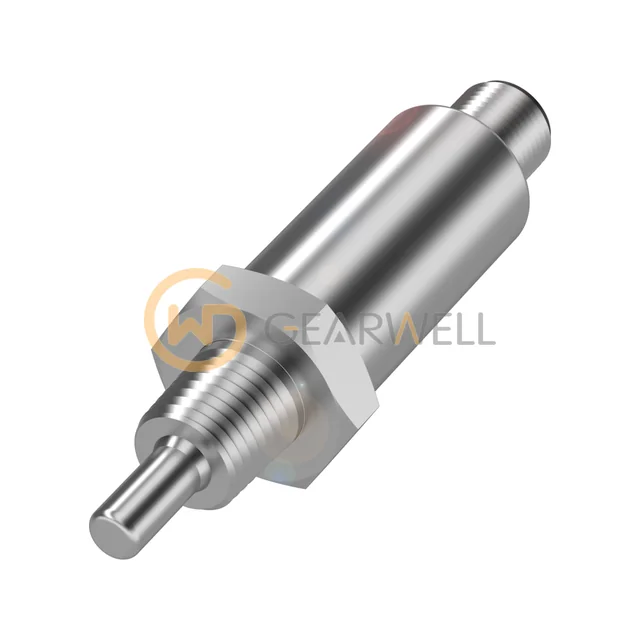

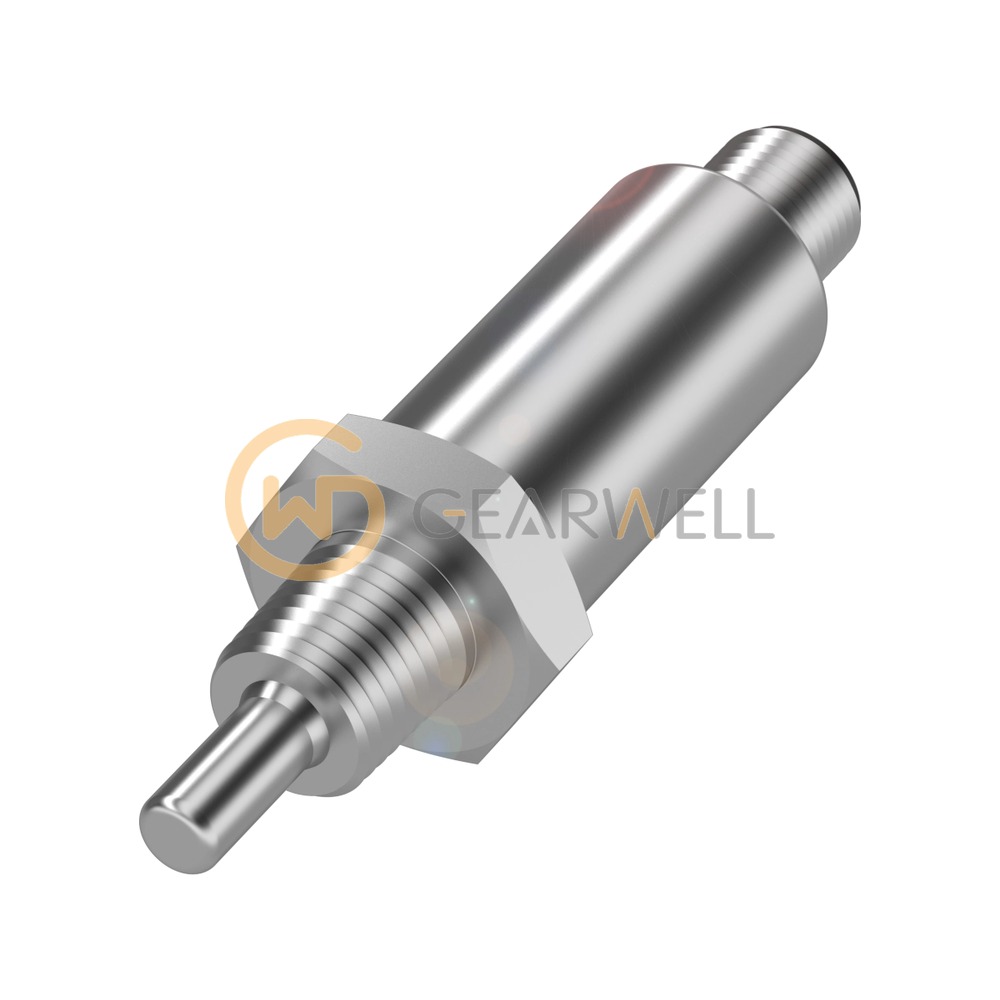

BALLUFF BFT0008 BFT 6025-FC002-A06A1A-S4 Contact Temperature Sensor
- Brand
- BALLUFF
- Model
- BFT0008
- GEARWELL SKU
- GWP-000017045
- Category
- Pressure, Flow & Temperature
Key specifications
- Connection
- Connector, M12x1-Male, 4-pin
- Order code
- BFT0008
- Analog output
- Analog, current 4…20 mA
- Measuring range
- -30...150 °C
- Type designation
- BFT 6025-FC002-A06A1A-S4
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | BALLUFF BFT0008 BFT 6025-FC002-A06A1A-S4 Contact Temperature Sensor |
|---|---|
| Brand | BALLUFF |
| Model | BFT0008 |
| Category | Pressure, Flow & Temperature |
| Connection | Connector, M12x1-Male, 4-pin |
| Order code | BFT0008 |
| Analog output | Analog, current 4…20 mA |
| Measuring range | -30...150 °C |
| Type designation | BFT 6025-FC002-A06A1A-S4 |
| Code as collected | BFT0008 |
| Measuring element | Pt1000 |
| Process connection | NPT 1/4" outer |
| Operating voltage Ub | 10...30 VDC |
| Process connection material | 1.4571 stainless steel |
| Installation length from contact surface | 25 mm |
