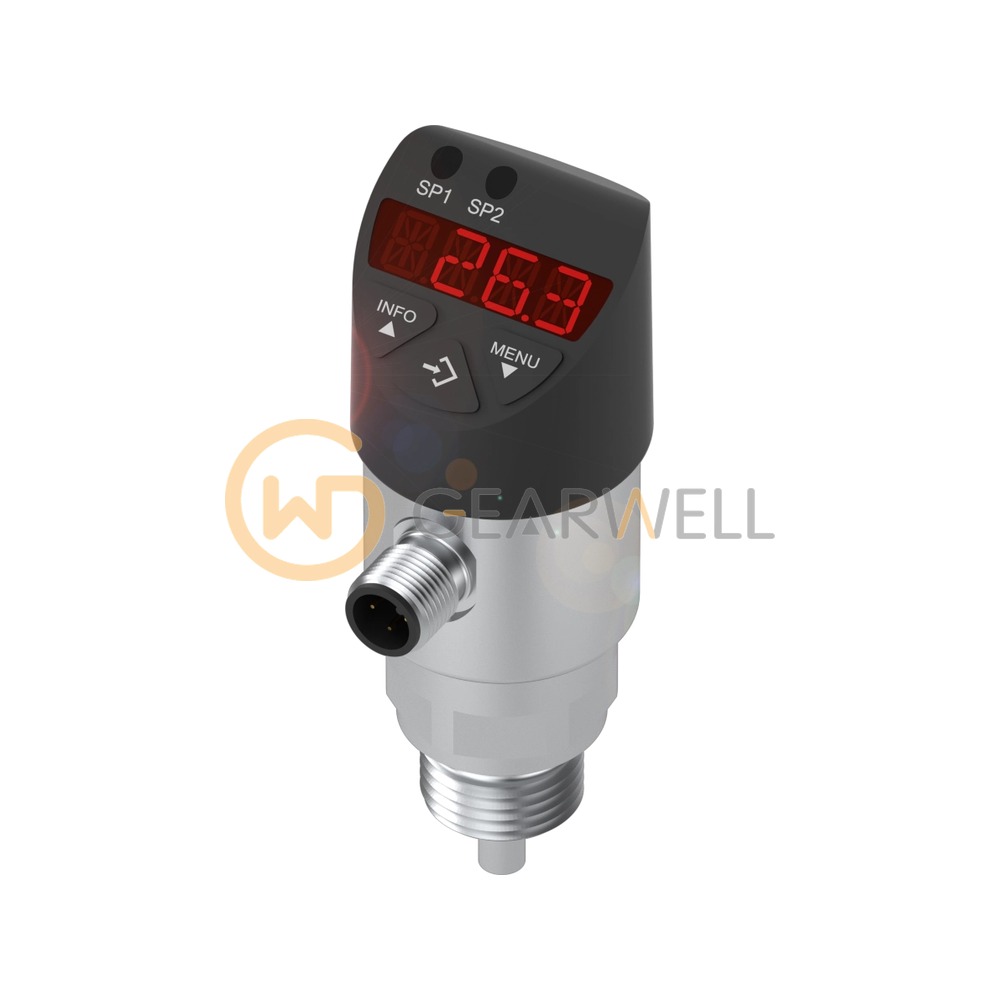

BALLUFF BFT0012 BFT 6025-HV003-A02A0C-S4 Contact Temperature Sensor
- Brand
- BALLUFF
- Model
- BFT0012
- GEARWELL SKU
- GWP-000017046
- Category
- Pressure, Flow & Temperature
Key specifications
- Connection
- Connector, M12x1-Male, 4-pin
- Order code
- BFT0012
- Analog output
- Analog, current 4…20 mA
- Measuring range
- -20...80 °C
- Switching output
- PNP
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | BALLUFF BFT0012 BFT 6025-HV003-A02A0C-S4 Contact Temperature Sensor |
|---|---|
| Brand | BALLUFF |
| Model | BFT0012 |
| Category | Pressure, Flow & Temperature |
| Connection | Connector, M12x1-Male, 4-pin |
| Order code | BFT0012 |
| Analog output | Analog, current 4…20 mA |
| Measuring range | -20...80 °C |
| Switching output | PNP |
| Type designation | BFT 6025-HV003-A02A0C-S4 |
| Code as collected | BFT0012 |
| Measuring element | Pt1000 |
| Process connection | G 1/2" outer |
| Operating voltage Ub | 15...35 VDC |
| Installation length from contact surface | 25 mm |
