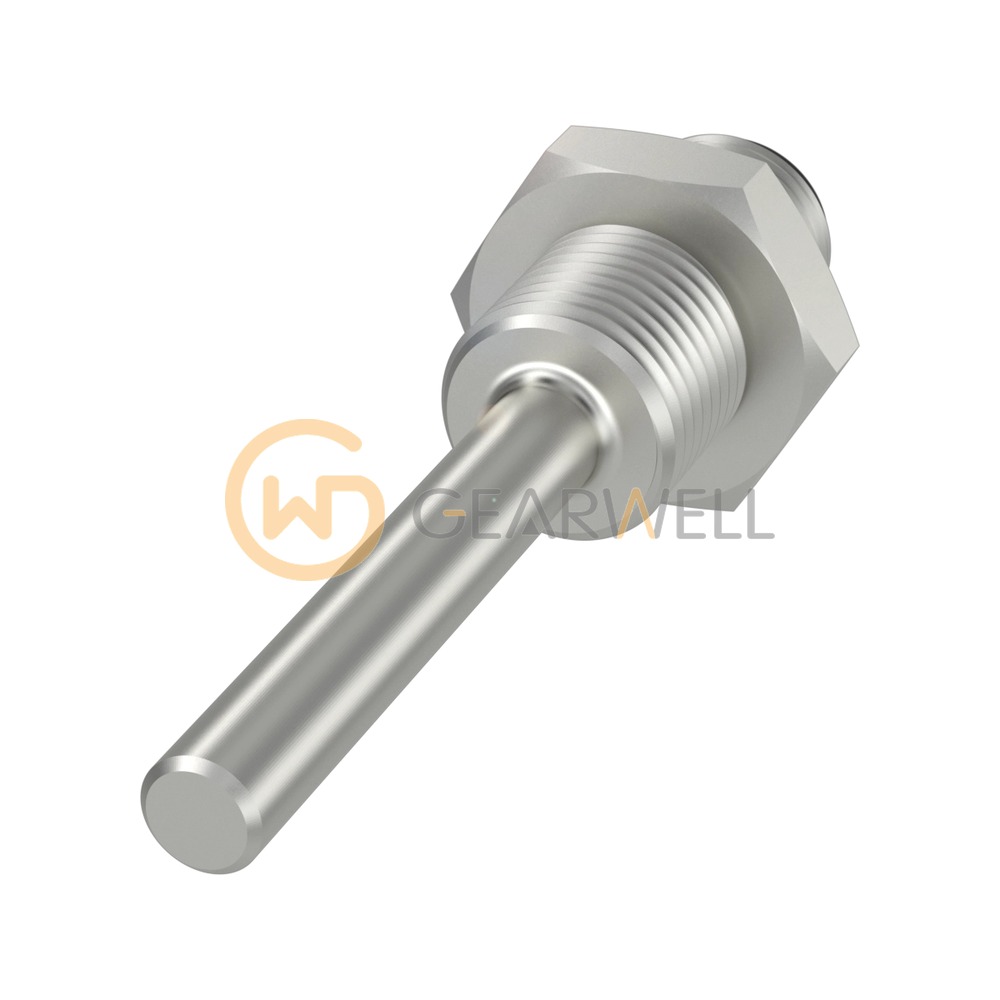

BALLUFF BFT0002 BFT 6050-DX001-R02A0A-S4 Contact Temperature Sensor
- Brand
- BALLUFF
- Model
- BFT0002
- GEARWELL SKU
- GWP-000017041
- Category
- Pressure, Flow & Temperature
Key specifications
- Connection
- Connector, M12x1-Male, 4-pin
- Order code
- BFT0002
- Analog output
- Analog, resistance
- Measuring range
- -50...150 °C
- Type designation
- BFT 6050-DX001-R02A0A-S4
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | BALLUFF BFT0002 BFT 6050-DX001-R02A0A-S4 Contact Temperature Sensor |
|---|---|
| Brand | BALLUFF |
| Model | BFT0002 |
| Category | Pressure, Flow & Temperature |
| Connection | Connector, M12x1-Male, 4-pin |
| Order code | BFT0002 |
| Analog output | Analog, resistance |
| Measuring range | -50...150 °C |
| Type designation | BFT 6050-DX001-R02A0A-S4 |
| Code as collected | BFT0002 |
| Measuring element | Pt1000 |
| Process connection | G 1/4" outer |
| Pressure rating max. | 50 bar |
| Process connection material | 1.4305 stainless steel |
| Installation length from contact surface | 50 mm |
