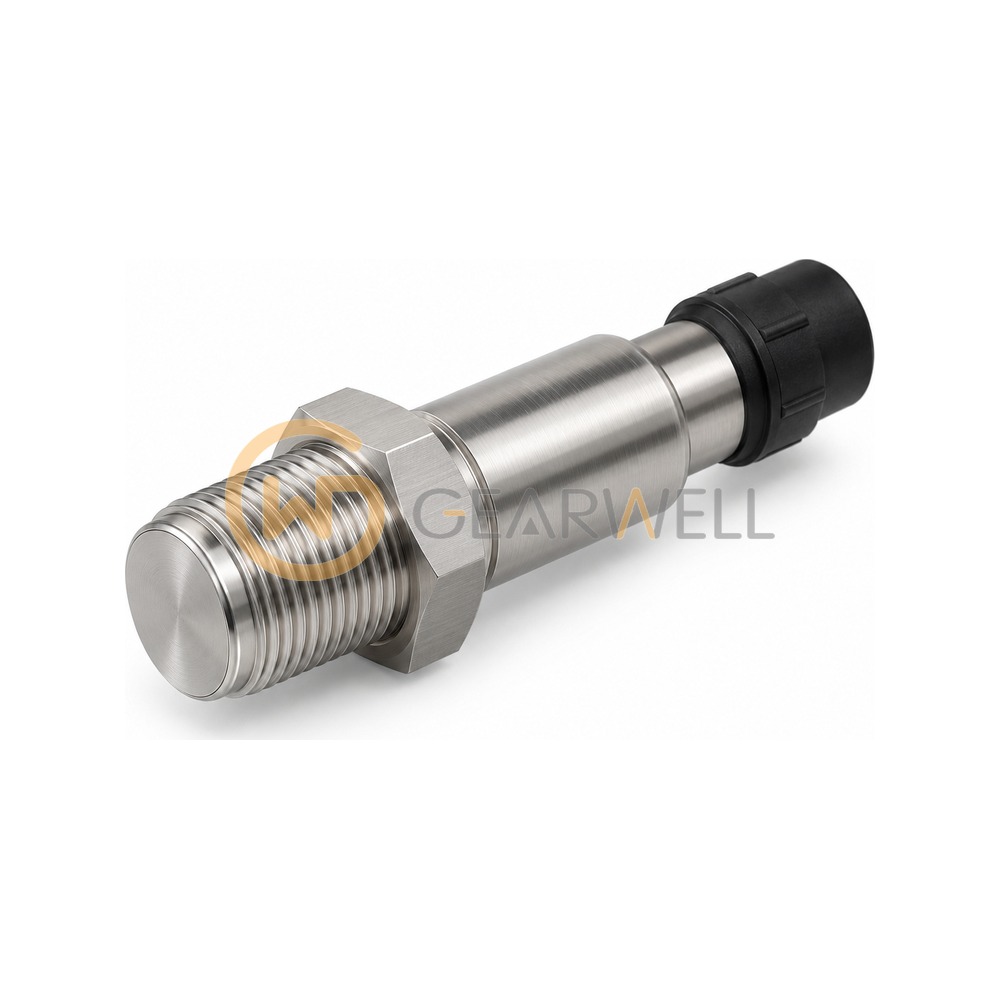

BALLUFF BHS0023 BES 516-300-S164-S4-D Pressure-Rated Inductive Sensor
- Brand
- BALLUFF
- Model
- BHS0023
- GEARWELL SKU
- GWP-000012701
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Range
- 1.5 mm
- Dimensions
- Ø 12 x 138 mm
- Order code
- BHS0023
- Installation
- flush
- Housing style
- M12x1
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | BALLUFF BHS0023 BES 516-300-S164-S4-D Pressure-Rated Inductive Sensor |
|---|---|
| Brand | BALLUFF |
| Model | BHS0023 |
| Category | Proximity & Photoelectric Sensors |
| Range | 1.5 mm |
| Dimensions | Ø 12 x 138 mm |
| Order code | BHS0023 |
| Installation | flush |
| Housing style | M12x1 |
| Pressure rating | 500 bar |
| Switching output | PNP NO |
| Type designation | BES 516-300-S164-S4-D |
| Operating voltage | 10...30 VDC |
| Switching frequency | 1000 Hz |
