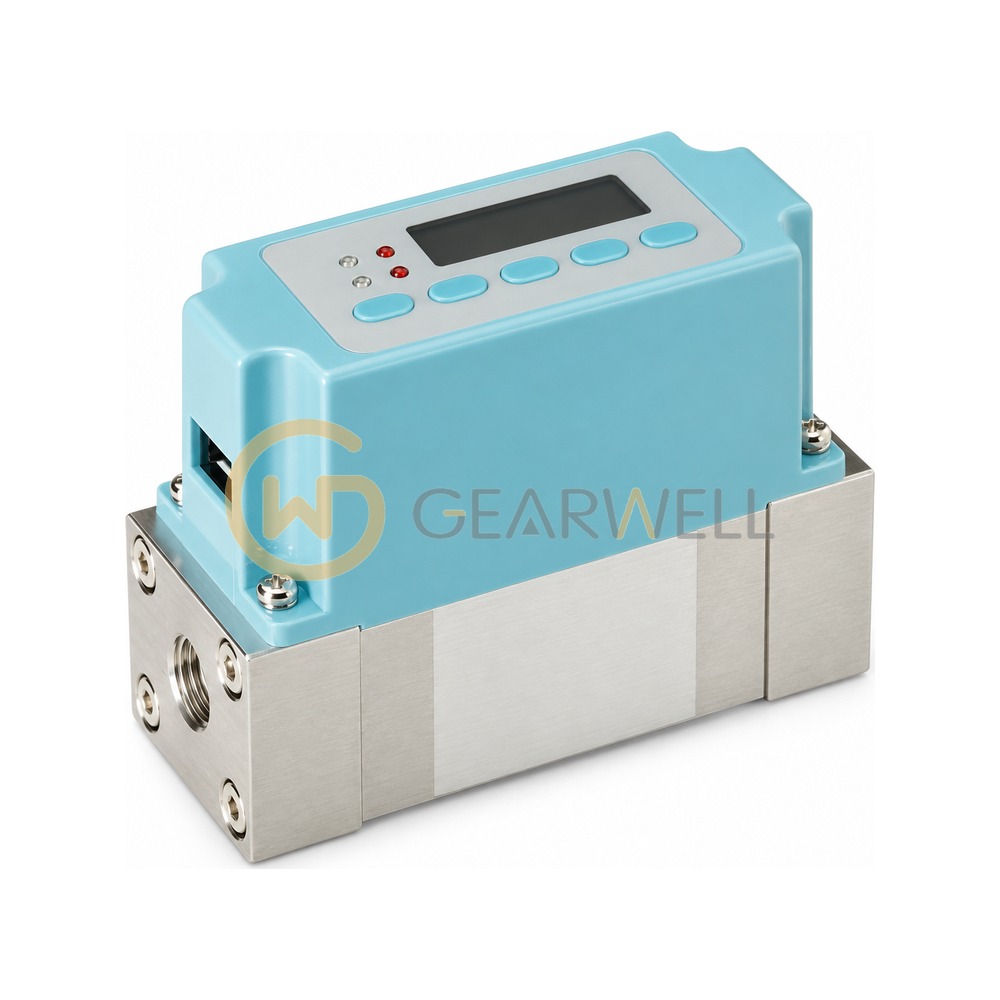

AZBIL CMS0020BSRN20010C CMS Gas Mass Flow Meter
- Brand
- AZBIL
- Model
- CMS0020BSRN20010C
- GEARWELL SKU
- GWP-000016504
- Category
- Pressure, Flow & Temperature
Key specifications
- Output
- 4–20 mA / 0–5 V / 1–5 V DC
- Options
- Gas-contacting parts degreased (option 3 = 1)
- Gas type
- Air / nitrogen
- Connection
- Rc 1/4
- Body material
- SUS303 stainless steel
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | AZBIL CMS0020BSRN20010C CMS Gas Mass Flow Meter |
|---|---|
| Brand | AZBIL |
| Model | CMS0020BSRN20010C |
| Category | Pressure, Flow & Temperature |
| Output | 4–20 mA / 0–5 V / 1–5 V DC |
| Options | Gas-contacting parts degreased (option 3 = 1) |
| Gas type | Air / nitrogen |
| Connection | Rc 1/4 |
| Body material | SUS303 stainless steel |
| Code suffix "C" | as collected; not listed in the official model-number table (CP-SS-1809E lists product version 0) |
| Rated voltage | 12 to 24 V DC |
| Flow rate range | 0–20 L/min (standard), air |
| Operating pressure | -0.07 to <1.0 MPa |
| Display / flow direction | With display, left to right |
| Measurement accuracy (2–20 L/min) | ±3 % rdg. ±1 digit |
