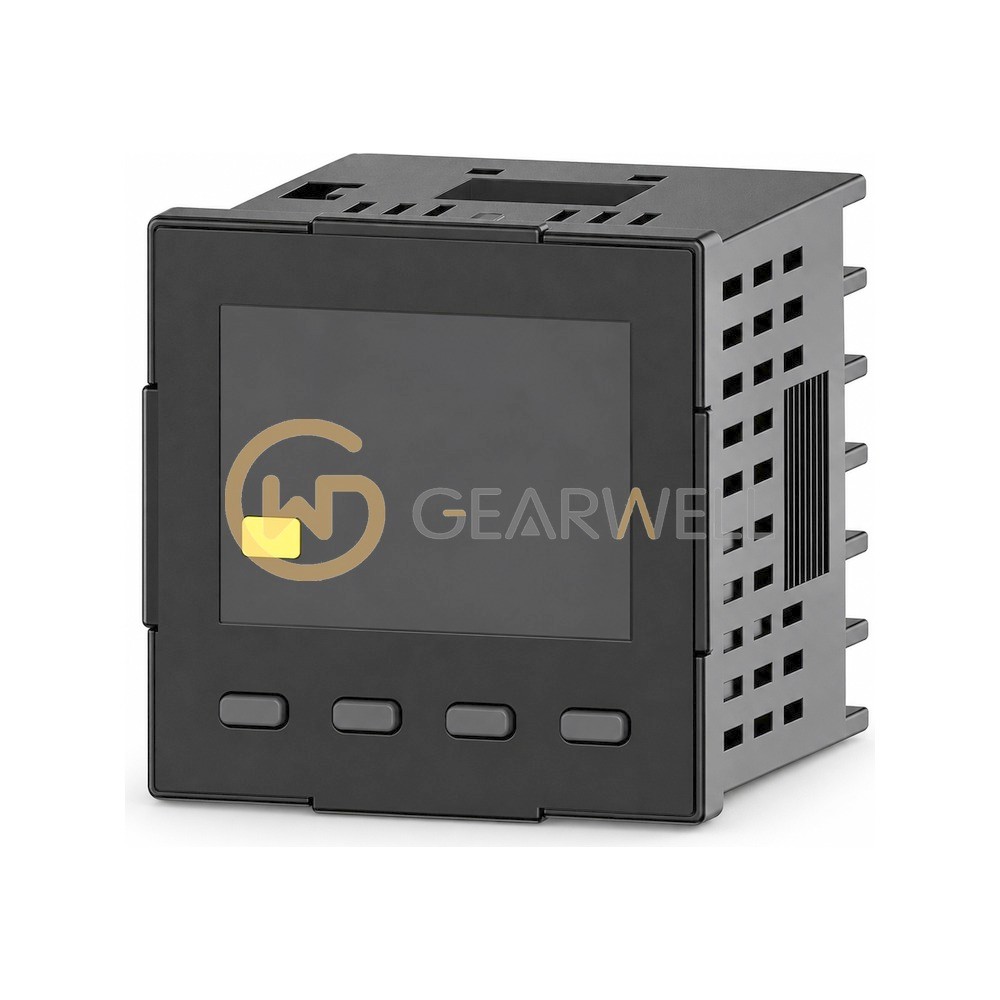

AUTONICS TX4S-B4S TX Series LCD Display PID Temperature Controller
- Brand
- AUTONICS
- Model
- TX4S-B4S
- GEARWELL SKU
- GWP-000016481
- Category
- Pressure, Flow & Temperature
Key specifications
- Alarm output
- AL1/2: 250 VAC~ 3 A 1a
- Option output
- Modbus RTU
- Power voltage
- 100-240VAC~ 50/60Hz
- Control method
- ON/OFF, P, PI, PD, PID
- Control output
- SSR (13 VDC ±3 V, ≤ 20 mA)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | AUTONICS TX4S-B4S TX Series LCD Display PID Temperature Controller |
|---|---|
| Brand | AUTONICS |
| Model | TX4S-B4S |
| Category | Pressure, Flow & Temperature |
| Alarm output | AL1/2: 250 VAC~ 3 A 1a |
| Option output | Modbus RTU |
| Power voltage | 100-240VAC~ 50/60Hz |
| Control method | ON/OFF, P, PI, PD, PID |
| Control output | SSR (13 VDC ±3 V, ≤ 20 mA) |
| Sampling cycle | 50ms |
| Power consumption | Max. 8VA |
| Input specification | Thermocouple K(CA), J(IC), T(CC), R(PR), S(PR), L(IC); RTD DPt100Ω, Cu50Ω |
| Protection structure | IP50 (front panel) |
