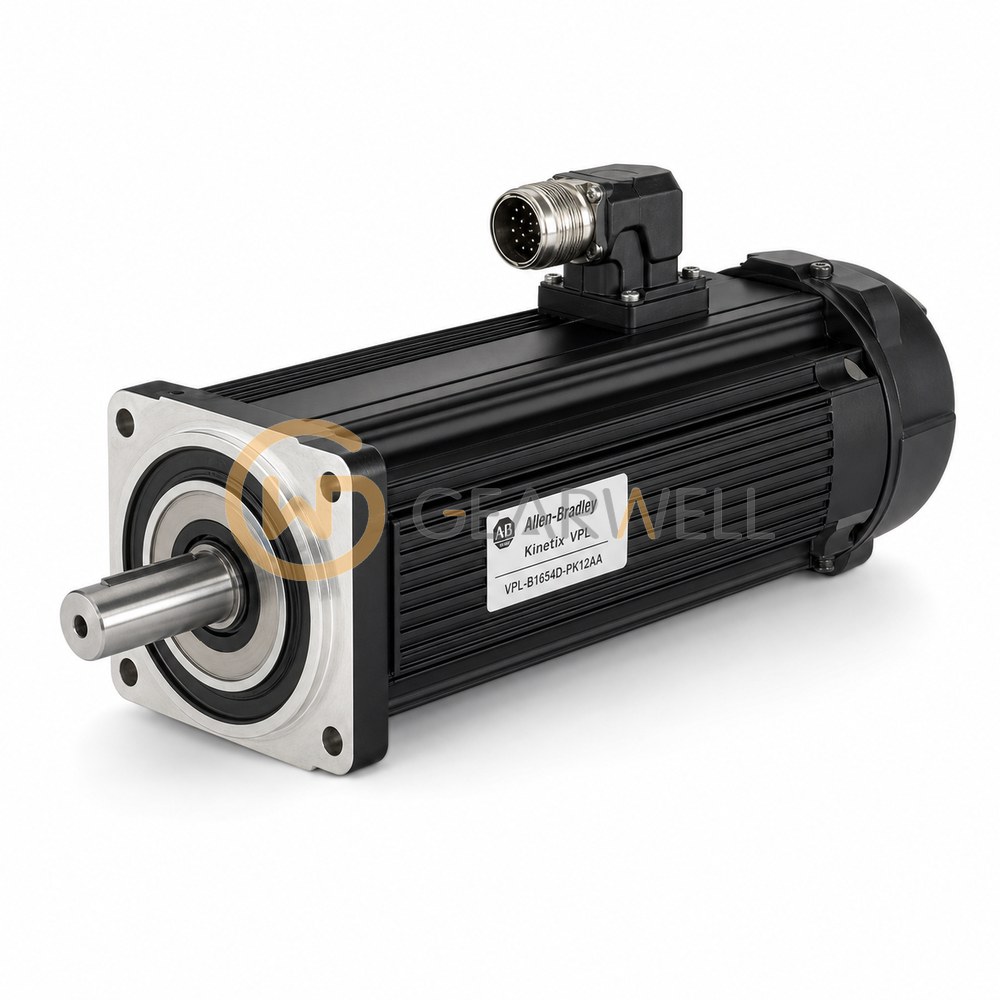

Allen-Bradley VPL-B1654D-PK12AA Kinetix VPL Low-Inertia Servo Motor
- Brand
- Allen-Bradley
- Model
- VPL-B1654D-PK12AA
- GEARWELL SKU
- GWP-000004059
- Category
- Servo Systems
Key specifications
- Brakes
- No Holding Brake
- Sub Brand
- Kinetix VP
- Connectors
- SpeedTec Right Angle DIN
- Shaft Style
- Keyless Shaft
- Speed Rating
- 3000 RPM Rated Speed
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley VPL-B1654D-PK12AA is a Kinetix VPL low-inertia servo motor for 400 V-class drives in the 165 mm frame, rated 7.16 kW at 3000 rpm (maximum 3000 rpm) with 32.0 N·m continuous stall torque and 75.30 N·m peak stall torque. This version has an 18-bit absolute multi-turn digital encoder (Hiperface DSL), a smooth shaft, a single right-angle SpeedTec DIN connector that rotates through 325°, no holding brake and an IEC metric mounting flange. It is IP50 without a shaft seal; the shaft seal option (S) raises this to IP66 with Rockwell factory-delivered Kinetix 2090 cables. Rockwell matches VPL windings to Kinetix 5500 drives, Kinetix 5700 dual-axis inverters and ArmorKinetix DSD modules, with a single Kinetix 2090 cable between motor and drive, for packaging, converting, material handling, electronic assembly and automotive applications.
Technical reference
| Product name | Allen-Bradley VPL-B1654D-PK12AA Kinetix VPL Low-Inertia Servo Motor |
|---|---|
| Brand | Allen-Bradley |
| Model | VPL-B1654D-PK12AA |
| Category | Servo Systems |
| Brakes | No Holding Brake |
| Sub Brand | Kinetix VP |
| Connectors | SpeedTec Right Angle DIN |
| Shaft Style | Keyless Shaft |
| Speed Rating | 3000 RPM Rated Speed |
| Magnet Stacks | 4 (Four) |
| Maximum speed | 3000 rpm |
| Frame bolt-circle diameter | 165 mm |
| Peak stall torque | 75.30 N m |
| Motor rated output | 7.16 kW |
| Continuous stall torque | 32.00 N m |
