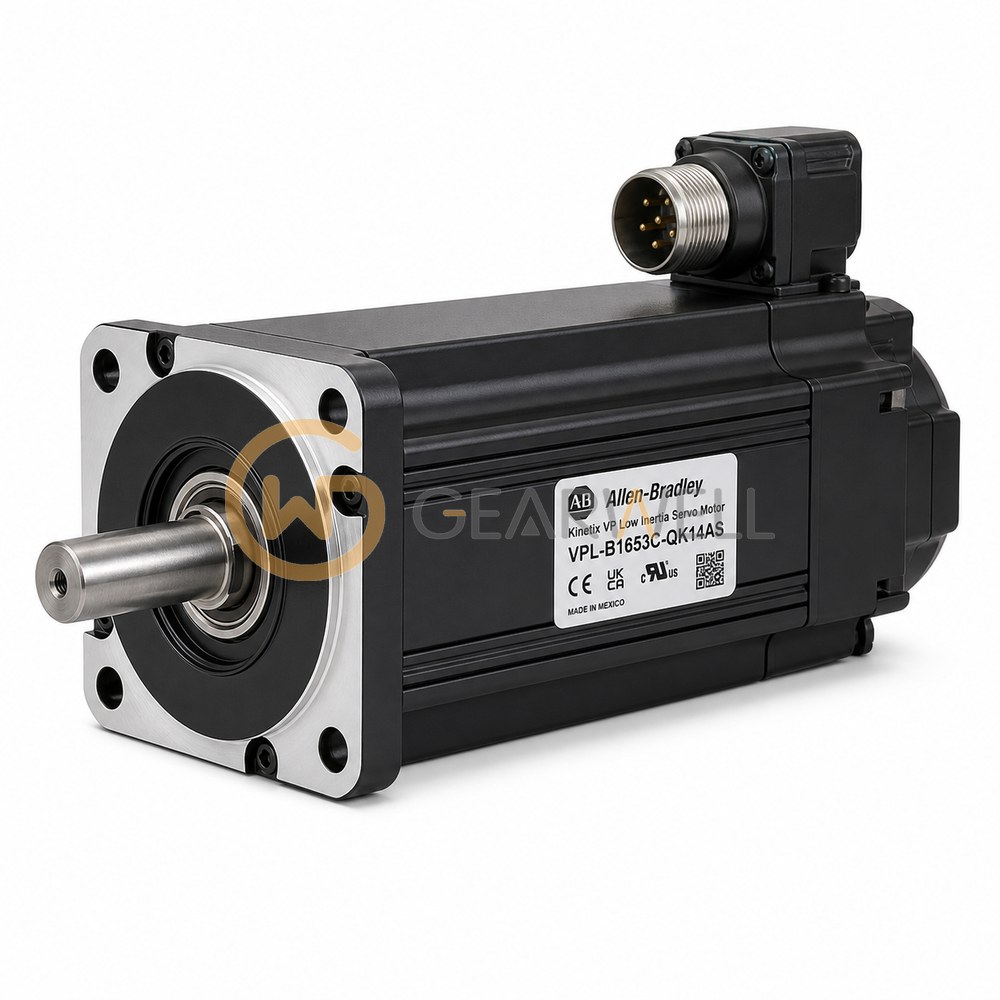

Allen-Bradley VPL-B1653C-QK14AS Kinetix VPL Low-Inertia Servo Motor
- Brand
- Allen-Bradley
- Model
- VPL-B1653C-QK14AS
- GEARWELL SKU
- GWP-000004360
- Category
- Servo Systems
Key specifications
- Mounting
- (A) IEC Metric Mounting Flange
- Rated speed
- 2300 rpm
- Maximum speed
- 2300 rpm
- Continuous stall torque
- 25.76 N m
- Voltage class
- 400 V class
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley VPL-B1653C-QK14AS is a Kinetix VPL low-inertia servo motor for 400 V-class drives in the 165 mm frame, rated 4.38 kW at 2300 rpm (maximum 2300 rpm) with 25.76 N·m continuous stall torque and 66.70 N·m peak stall torque. This version has a 23-bit absolute multi-turn digital encoder (Hiperface DSL) rated SIL 2 (PLd), a smooth shaft, a single right-angle SpeedTec DIN connector that rotates through 325°, a 24 V DC holding brake, an IEC metric mounting flange and a shaft seal. With the shaft seal it reaches IP66 when used with Rockwell factory-delivered Kinetix 2090 cables. Rockwell matches VPL windings to Kinetix 5500 drives, Kinetix 5700 dual-axis inverters and ArmorKinetix DSD modules, with a single Kinetix 2090 cable between motor and drive, for packaging, converting, material handling, electronic assembly and automotive applications.
Technical reference
| Product name | Allen-Bradley VPL-B1653C-QK14AS Kinetix VPL Low-Inertia Servo Motor |
|---|---|
| Brand | Allen-Bradley |
| Model | VPL-B1653C-QK14AS |
| Category | Servo Systems |
| Mounting | (A) IEC Metric Mounting Flange |
| Rated speed | 2300 rpm |
| Maximum speed | 2300 rpm |
| Continuous stall torque | 25.76 N m |
| Voltage class | 400 V class |
| Frame bolt-circle diameter | 165 mm |
| Peak stall torque | 66.70 N m |
| Enclosure protection | IP66 with shaft seal and Rockwell Automation factory-delivered Kinetix 2090 single cable; installation condition applies |
| Motor rated output | 4.38 kW |
