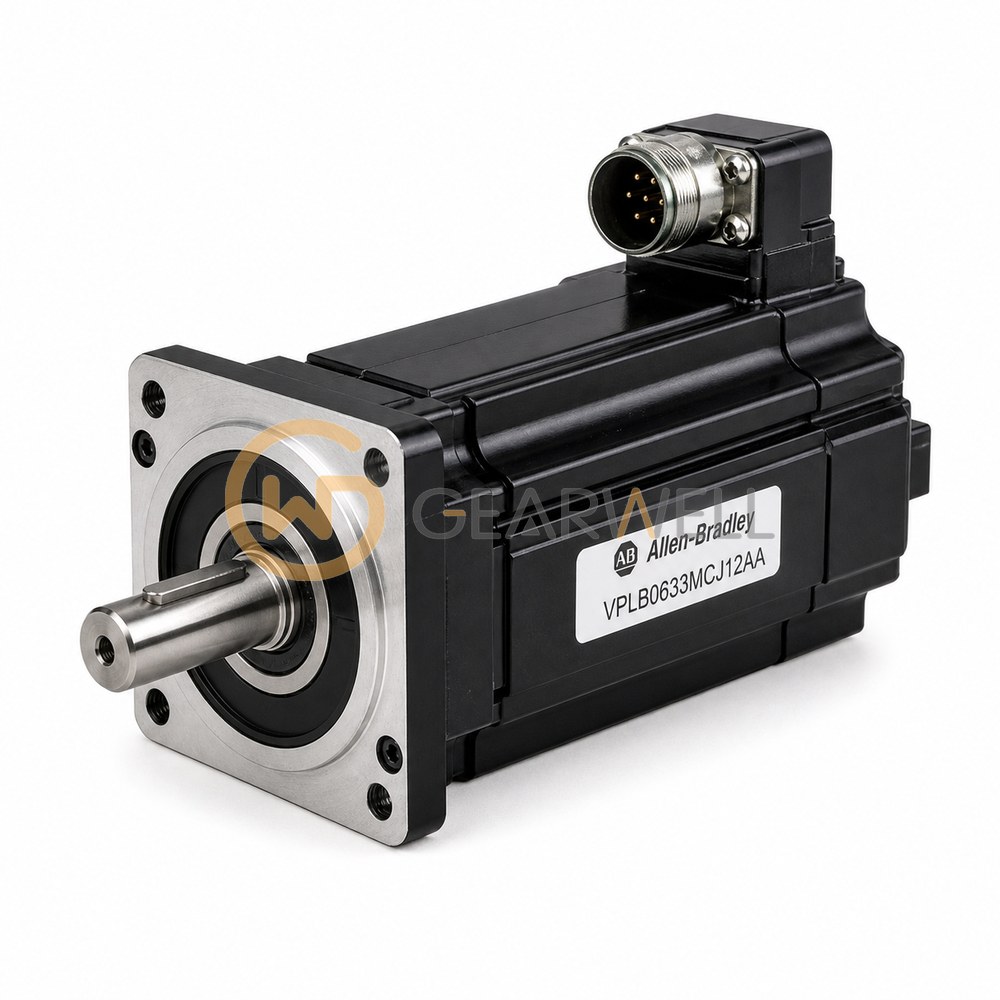

Allen-Bradley VPL-B0633M-CJ12AA Kinetix VPL Low-Inertia Servo Motor
- Brand
- Allen-Bradley
- Model
- VPLB0633MCJ12AA
- GEARWELL SKU
- GWP-000003920
- Category
- Servo Systems
Key specifications
- Mounting
- (A) IEC Metric Mounting Flange
- Rated Speed
- (M) Winding, 6500 RPM Rated Speed
- Maximum speed
- 6700 rpm
- Continuous stall torque
- 1.27 N m
- Voltage class
- 400 V class
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley VPL-B0633M-CJ12AA is a Kinetix VPL low-inertia servo motor for 400 V-class drives in the 63 mm frame, rated 0.57 kW at 6500 rpm (maximum 6700 rpm) with 1.27 N·m continuous stall torque and 4.09 N·m peak stall torque. This version has an 18-bit absolute single-turn digital encoder (Hiperface DSL), a keyed shaft, a single right-angle SpeedTec DIN connector that rotates through 325°, no holding brake and an IEC metric mounting flange. It is IP50 without a shaft seal; the shaft seal option (S) raises this to IP66 with Rockwell factory-delivered Kinetix 2090 cables. Rockwell matches VPL windings to Kinetix 5500 drives, Kinetix 5700 dual-axis inverters and ArmorKinetix DSD modules, with a single Kinetix 2090 cable between motor and drive, for packaging, converting, material handling, electronic assembly and automotive applications.
Technical reference
| Product name | Allen-Bradley VPL-B0633M-CJ12AA Kinetix VPL Low-Inertia Servo Motor |
|---|---|
| Brand | Allen-Bradley |
| Model | VPLB0633MCJ12AA |
| Category | Servo Systems |
| Mounting | (A) IEC Metric Mounting Flange |
| Rated Speed | (M) Winding, 6500 RPM Rated Speed |
| Maximum speed | 6700 rpm |
| Continuous stall torque | 1.27 N m |
| Voltage class | 400 V class |
| Frame bolt-circle diameter | 63 mm |
| Peak stall torque | 4.09 N m |
| Enclosure protection | IP50 minimum without a shaft seal |
| Motor rated output | 0.57 kW |
