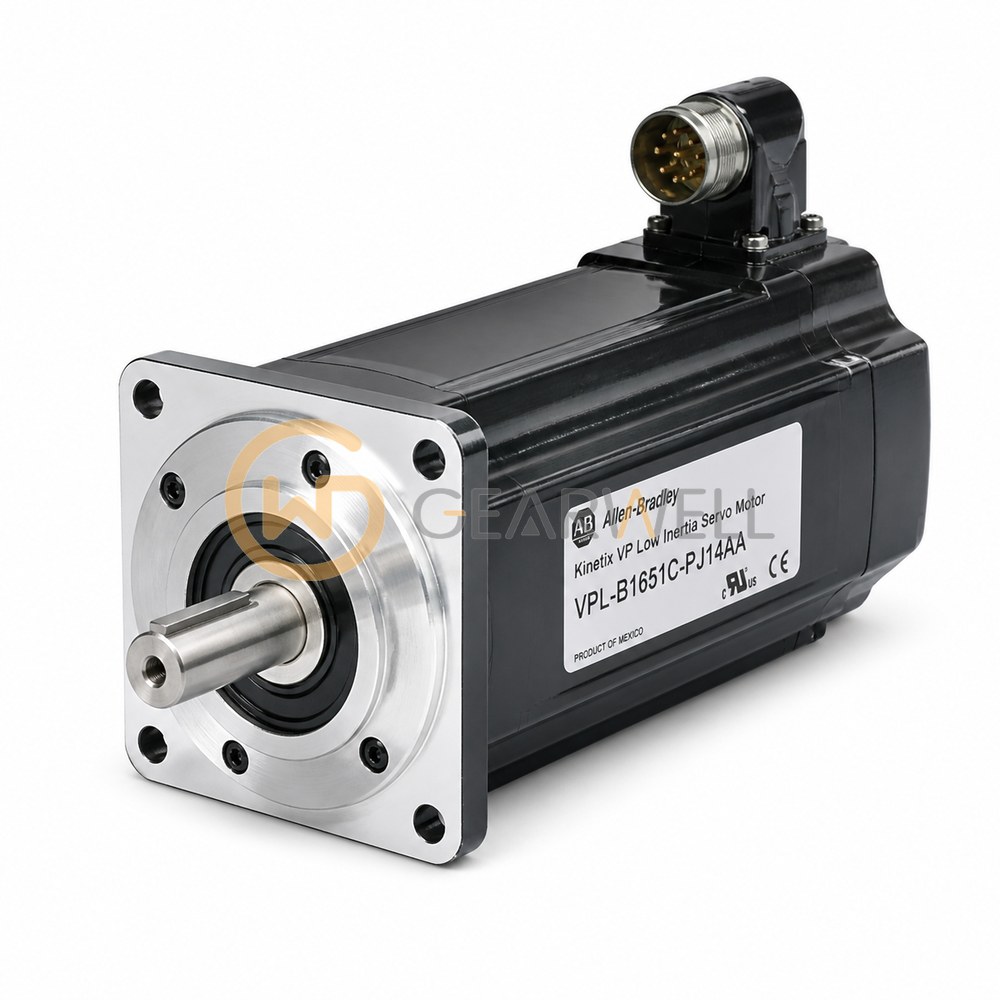

Allen-Bradley VPL-B1651C-PJ14AA Kinetix VPL Low-Inertia Servo Motor

Product overview

The Allen-Bradley VPL-B1651C-PJ14AA is a Kinetix VPL low-inertia servo motor for 400 V-class drives in the 165 mm frame, rated 2.32 kW at 2750 rpm (maximum 2750 rpm) with 11.50 N·m continuous stall torque and 22.45 N·m peak stall torque. This version has an 18-bit absolute multi-turn digital encoder (Hiperface DSL), a keyed shaft, a single right-angle SpeedTec DIN connector that rotates through 325°, a 24 V DC holding brake and an IEC metric mounting flange. It is IP50 without a shaft seal; the shaft seal option (S) raises this to IP66 with Rockwell factory-delivered Kinetix 2090 cables. Rockwell matches VPL windings to Kinetix 5500 drives, Kinetix 5700 dual-axis inverters and ArmorKinetix DSD modules, with a single Kinetix 2090 cable between motor and drive, for packaging, converting, material handling, electronic assembly and automotive applications.
