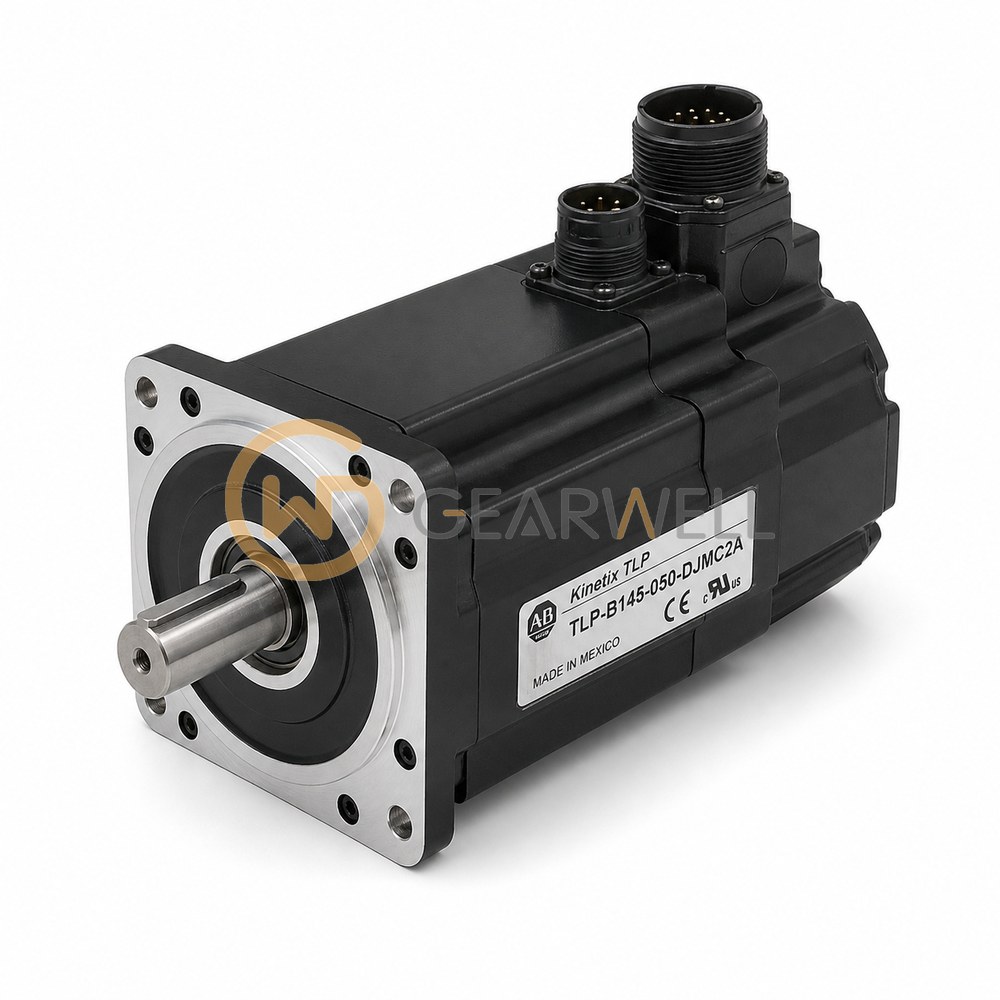

Allen-Bradley TLP-B145-050-DJMC2A Servo Motor
- Brand
- Allen-Bradley
- Model
- TLP-B145-050-DJMC2A
- GEARWELL SKU
- GWP-000000270
- Category
- Servo Systems
Key specifications
- Product type
- Kinetix TLP Servo Motor
- Catalog number
- TLP-B145-050-DJMC2A
- Lifecycle status
- Active
- Product description
- TL-Series Servo Motor, (B) 400V AC, Frame Size (145) 145mm Bolt Circle Frame Size, , (D) 24 bit single-turn absolute encoder, multi-turn with battery required, (J) Keyed shaft, (A) Standard without shaft seal
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley TLP-B145-050-DJMC2A is a Kinetix TLP multi-purpose servo motor (TLP-B145-050) for the 400V class with a 145 mm frame (bolt circle), rated 0.50 kW at 2000 rpm with a maximum speed of 3000 rpm. Continuous stall torque is 2.39 N·m and peak stall torque 6.93 N·m. It has a 24-bit absolute encoder (single-turn, multi-turn with a battery), a keyed shaft, military-style connectors, no brake and no shaft seal. TLP motors are optimized for Kinetix 5100 and Kinetix 5300 servo drives.
Technical reference
| Product name | Allen-Bradley TLP-B145-050-DJMC2A Servo Motor |
|---|---|
| Brand | Allen-Bradley |
| Model | TLP-B145-050-DJMC2A |
| Category | Servo Systems |
| Product type | Kinetix TLP Servo Motor |
| Catalog number | TLP-B145-050-DJMC2A |
| Lifecycle status | Active |
| Product description | TL-Series Servo Motor, (B) 400V AC, Frame Size (145) 145mm Bolt Circle Frame Size, , (D) 24 bit single-turn absolute encoder, multi-turn with battery required, (J) Keyed shaft, (A) Standard without shaft seal |
