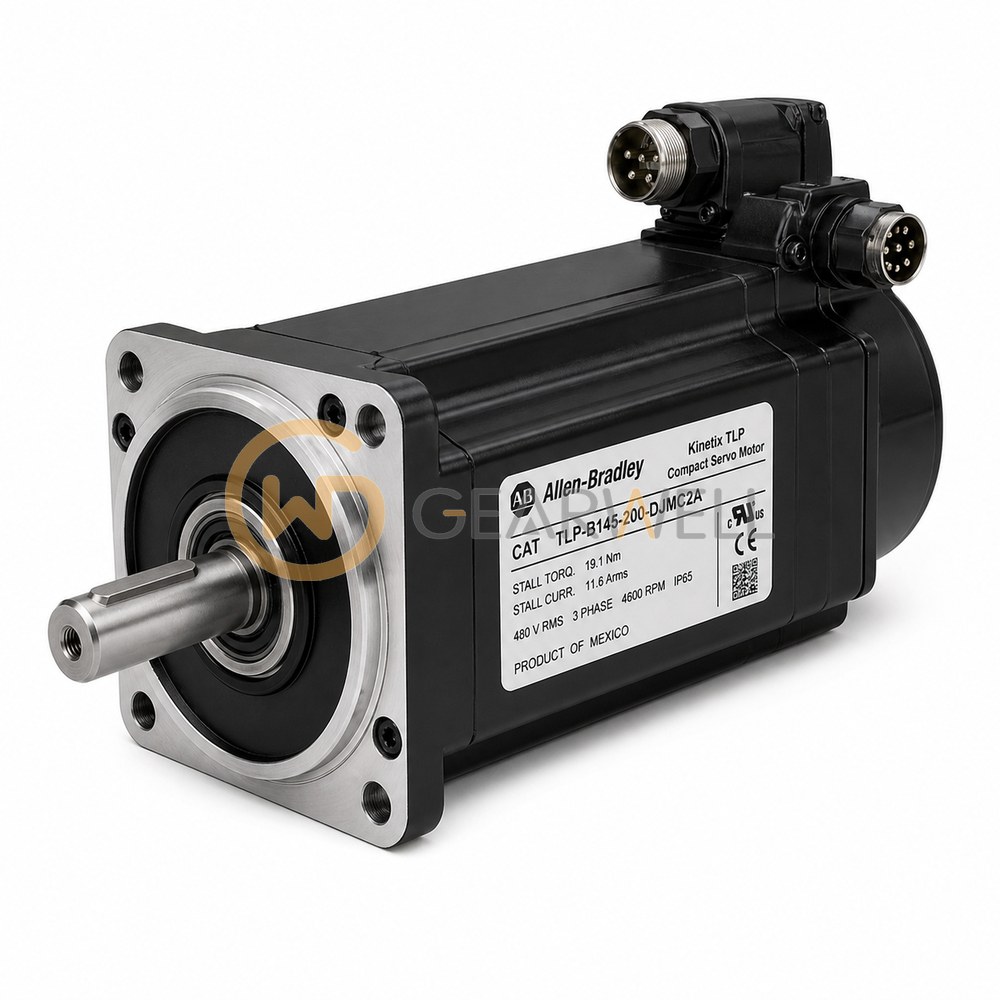

Allen-Bradley TLP-B145-200-DJMC2A Servo Motor
- Brand
- Allen-Bradley
- Model
- TLP-B145-200-DJMC2A
- GEARWELL SKU
- GWP-000002513
- Category
- Servo Systems
Key specifications
- Feedback
- 24-bit absolute single-turn and multi-turn encoder
- Frame size (bolt circle diameter)
- 145 mm
- Rated speed
- 2000 rpm
- Product type
- Kinetix TLP brushless AC synchronous servo motor
- Motor rated output
- 2.0 kW
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley TLP-B145-200-DJMC2A is a Kinetix TLP multi-purpose servo motor (TLP-B145-200) for the 400V class with a 145 mm frame (bolt circle), rated 2.0 kW at 2000 rpm with a maximum speed of 3000 rpm. Continuous stall torque is 9.55 N·m and peak stall torque 24.40 N·m. It has a 24-bit absolute encoder (single-turn, multi-turn with a battery), a keyed shaft, military-style connectors, no brake and no shaft seal. TLP motors are optimized for Kinetix 5100 and Kinetix 5300 servo drives.
Technical reference
| Product name | Allen-Bradley TLP-B145-200-DJMC2A Servo Motor |
|---|---|
| Brand | Allen-Bradley |
| Model | TLP-B145-200-DJMC2A |
| Category | Servo Systems |
| Feedback | 24-bit absolute single-turn and multi-turn encoder |
| Frame size (bolt circle diameter) | 145 mm |
| Rated speed | 2000 rpm |
| Product type | Kinetix TLP brushless AC synchronous servo motor |
| Motor rated output | 2.0 kW |
| Holding brake | No brake |
| Maximum speed | 3000 rpm |
| Voltage class | 400 V class |
