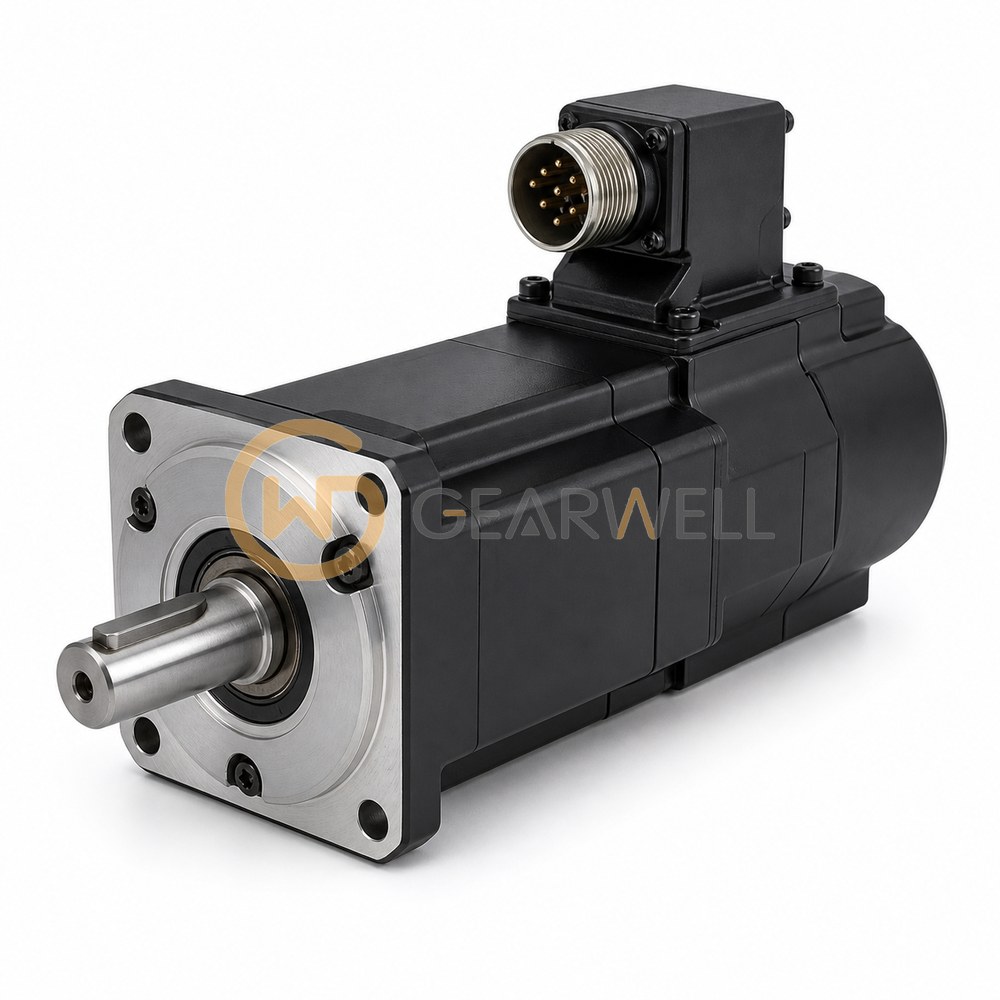

Allen-Bradley TLP-B200-750-DJMD4A Servo Motor
- Brand
- Allen-Bradley
- Model
- TLP-B200-750-DJMD4A
- GEARWELL SKU
- GWP-000002236
- Category
- Servo Systems
Key specifications
- Feedback
- 24-bit absolute single-turn and multi-turn encoder
- Frame size (bolt circle diameter)
- 200 mm
- Rated speed
- 1500 rpm
- Product type
- Kinetix TLP brushless AC synchronous servo motor
- Motor rated output
- 7.5 kW
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley TLP-B200-750-DJMD4A is a Kinetix TLP multi-purpose servo motor (TLP-B200-750) for the 400V class with a 200 mm frame (bolt circle), rated 7.5 kW at 1500 rpm with a maximum speed of 2500 rpm. Continuous stall torque is 47.7 N·m and peak stall torque 101.3 N·m. It has a 24-bit absolute encoder (single-turn, multi-turn with a battery), a keyed shaft, military-style connectors, a 24V DC holding brake and no shaft seal. TLP motors are optimized for Kinetix 5100 and Kinetix 5300 servo drives.
Technical reference
| Product name | Allen-Bradley TLP-B200-750-DJMD4A Servo Motor |
|---|---|
| Brand | Allen-Bradley |
| Model | TLP-B200-750-DJMD4A |
| Category | Servo Systems |
| Feedback | 24-bit absolute single-turn and multi-turn encoder |
| Frame size (bolt circle diameter) | 200 mm |
| Rated speed | 1500 rpm |
| Product type | Kinetix TLP brushless AC synchronous servo motor |
| Motor rated output | 7.5 kW |
| Holding brake | 24 V DC holding brake |
| Maximum speed | 2500 rpm |
| Voltage class | 400 V class |
