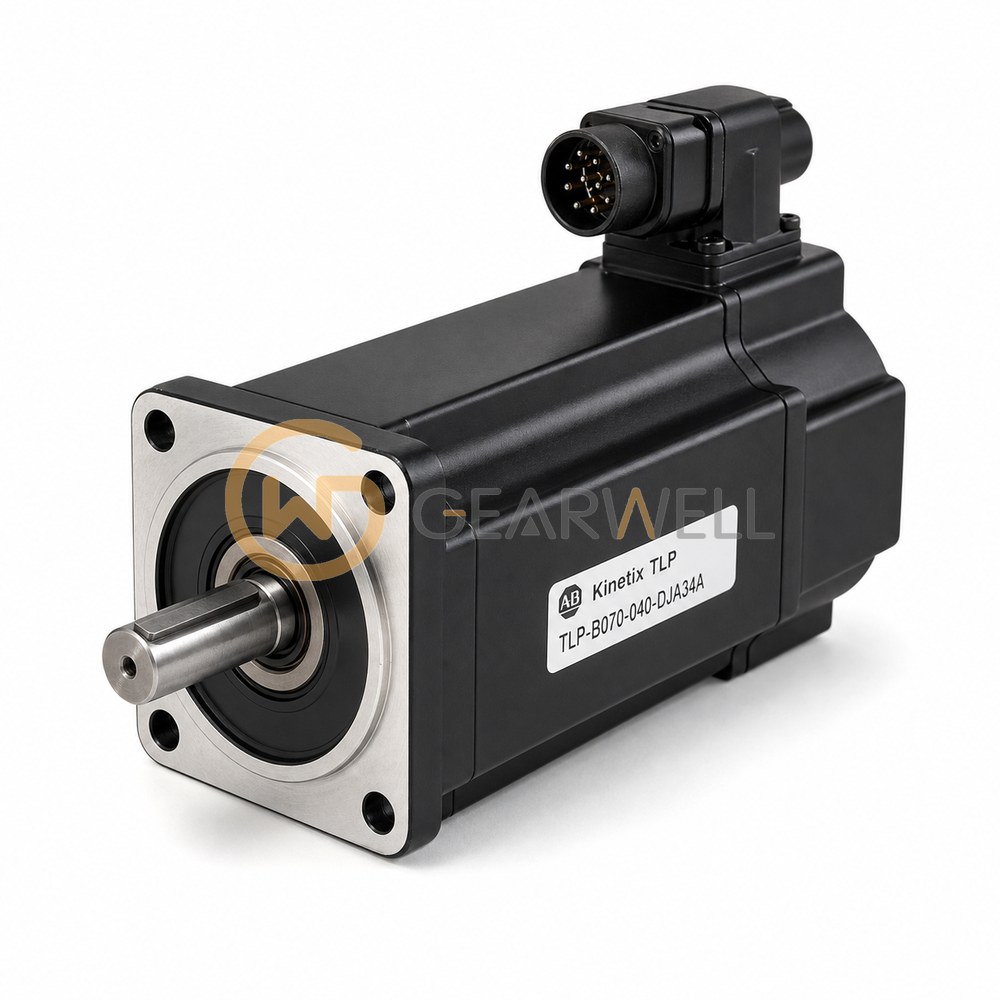

Allen-Bradley TLP-B070-040-DJA34A Servo Motor
- Brand
- Allen-Bradley
- Model
- TLP-B070-040-DJA34A
- GEARWELL SKU
- GWP-000003153
- Category
- Servo Systems
Key specifications
- Feedback
- 24-bit absolute single-turn and multi-turn encoder
- Frame size (bolt circle diameter)
- 70 mm
- Rated speed
- 3000 rpm
- Product type
- Kinetix TLP brushless AC synchronous servo motor
- Motor rated output
- 0.40 kW
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley TLP-B070-040-DJA34A is a Kinetix TLP multi-purpose servo motor (TLP-B070-040) for the 400V class with a 70 mm frame (bolt circle), rated 0.40 kW at 3000 rpm with a maximum speed of 6000 rpm. Continuous stall torque is 1.27 N·m and peak stall torque 4.25 N·m. It has a 24-bit absolute encoder (single-turn, multi-turn with a battery), a keyed shaft, rectangular connectors on 0.3 m motor cables, a 24V DC holding brake and no shaft seal. TLP motors are optimized for Kinetix 5100 and Kinetix 5300 servo drives.
Technical reference
| Product name | Allen-Bradley TLP-B070-040-DJA34A Servo Motor |
|---|---|
| Brand | Allen-Bradley |
| Model | TLP-B070-040-DJA34A |
| Category | Servo Systems |
| Feedback | 24-bit absolute single-turn and multi-turn encoder |
| Frame size (bolt circle diameter) | 70 mm |
| Rated speed | 3000 rpm |
| Product type | Kinetix TLP brushless AC synchronous servo motor |
| Motor rated output | 0.40 kW |
| Holding brake | 24 V DC holding brake |
| Maximum speed | 6000 rpm |
| Voltage class | 400 V class |
